Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Strategies >> Standard Flow of Diagnostic Troubleshooting

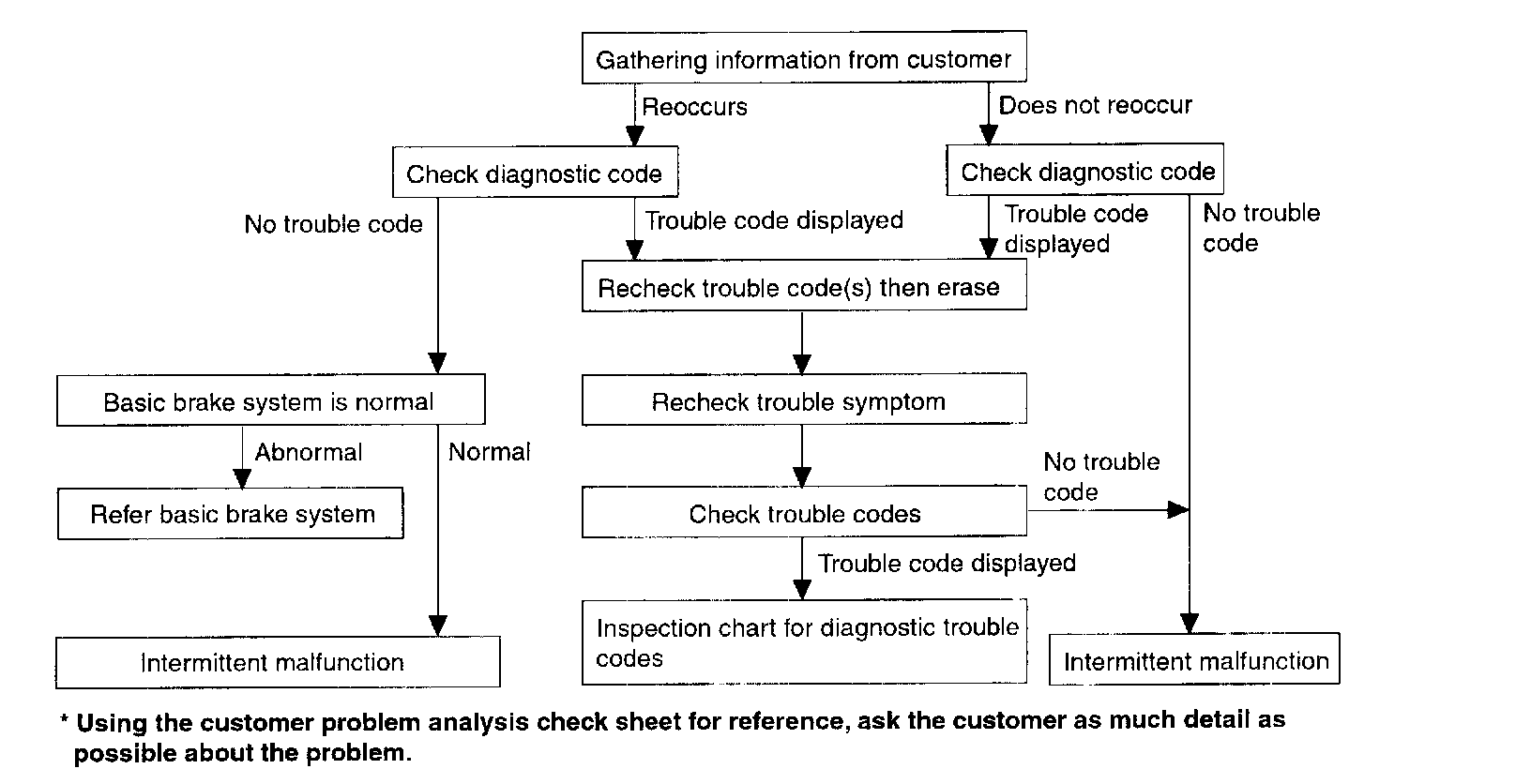

Standard Flow of Diagnostic Troubleshooting





STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

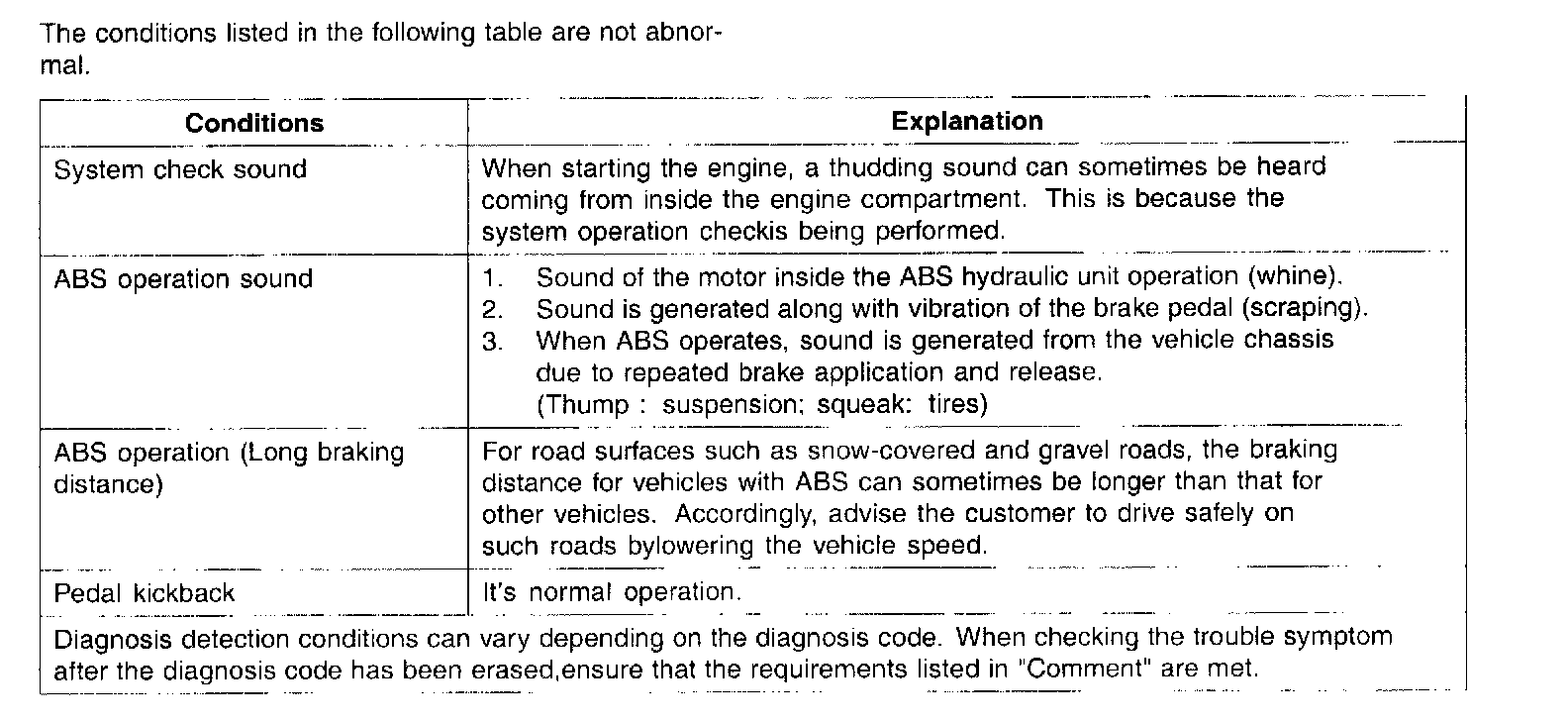

NOTES WITH REGARD TO DIAGNOSIS





The conditions listed in the table are not abnormal.
