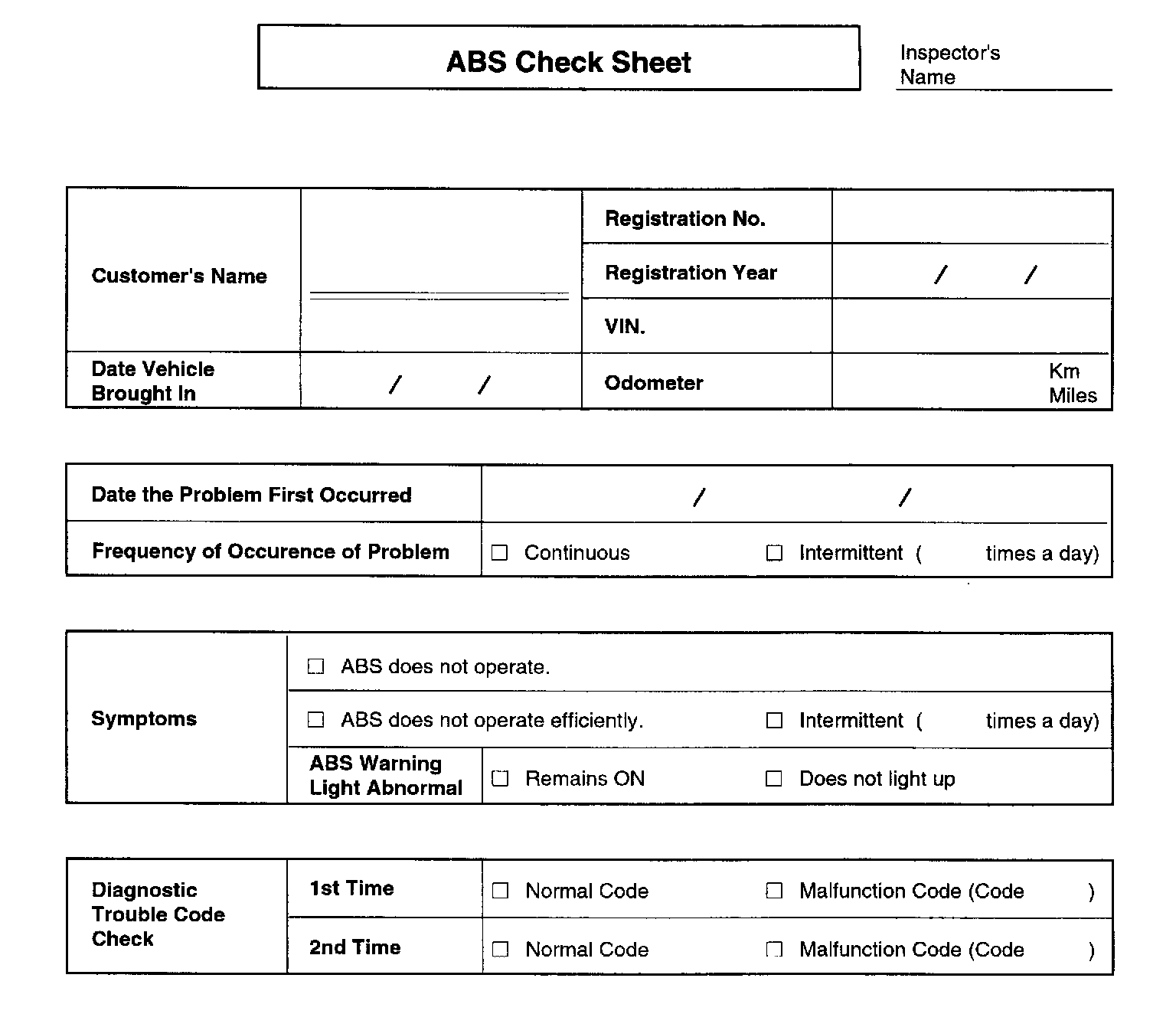

ABS Check Sheet

ABS CHECK SHEET

HI-SCAN (PRO) CHECK
1. Turn the ignition "OFF".

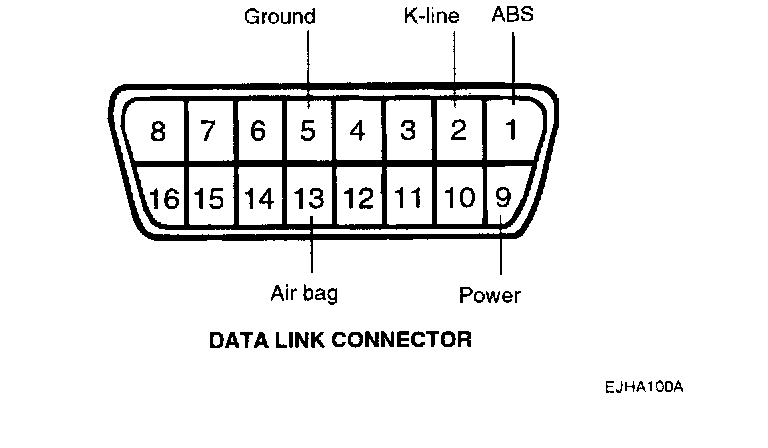

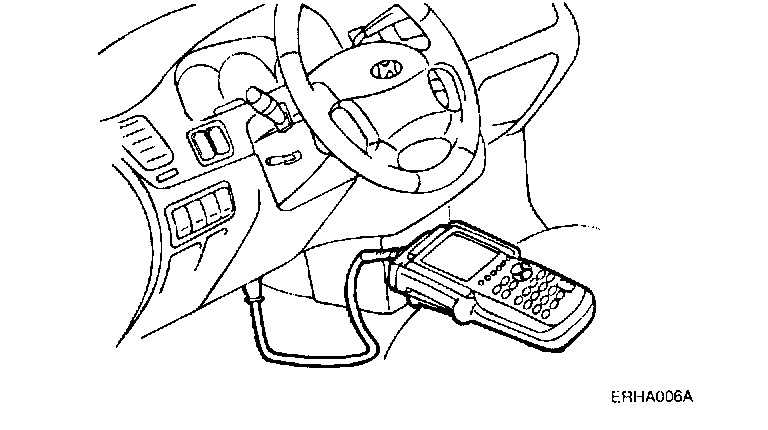

2. Connect the Hi-scan to the data link connector located underneath low crash pad panel.
3. Turn the ignition "ON".
4. Use the Hi-scan to check the self-diagnosis codes.
5. After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.








6. Disconnect the Hi-scan.
