Inspection Chart

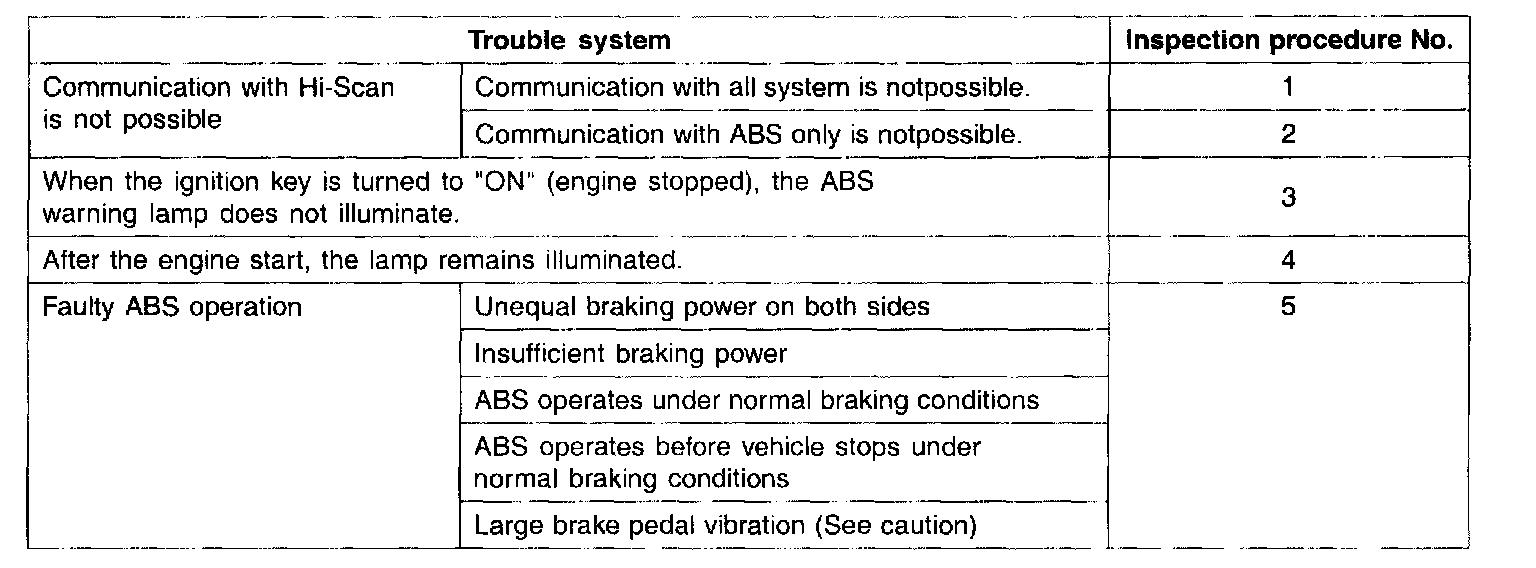

INSPECTION CHART FOR TROUBLE SYMPTOMS





Get an understanding of the trouble symptoms and check according to the inspection procedure chart.

CAUTION: During ABS operation, the brake pedal may vibrate or may not be able to be depressed. Such phenomena are due to intermittent changes in hydraulic pressure inside the brake line to prevent the wheels from locking and is not an abnormality.
