Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Testing and Inspection >> Power Seat Switch

Power Seat Switch

INSPECTION

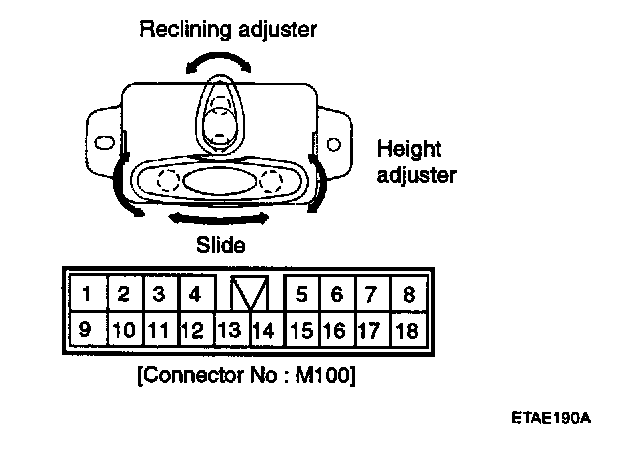

1. Disconnect the power seat switch connector.

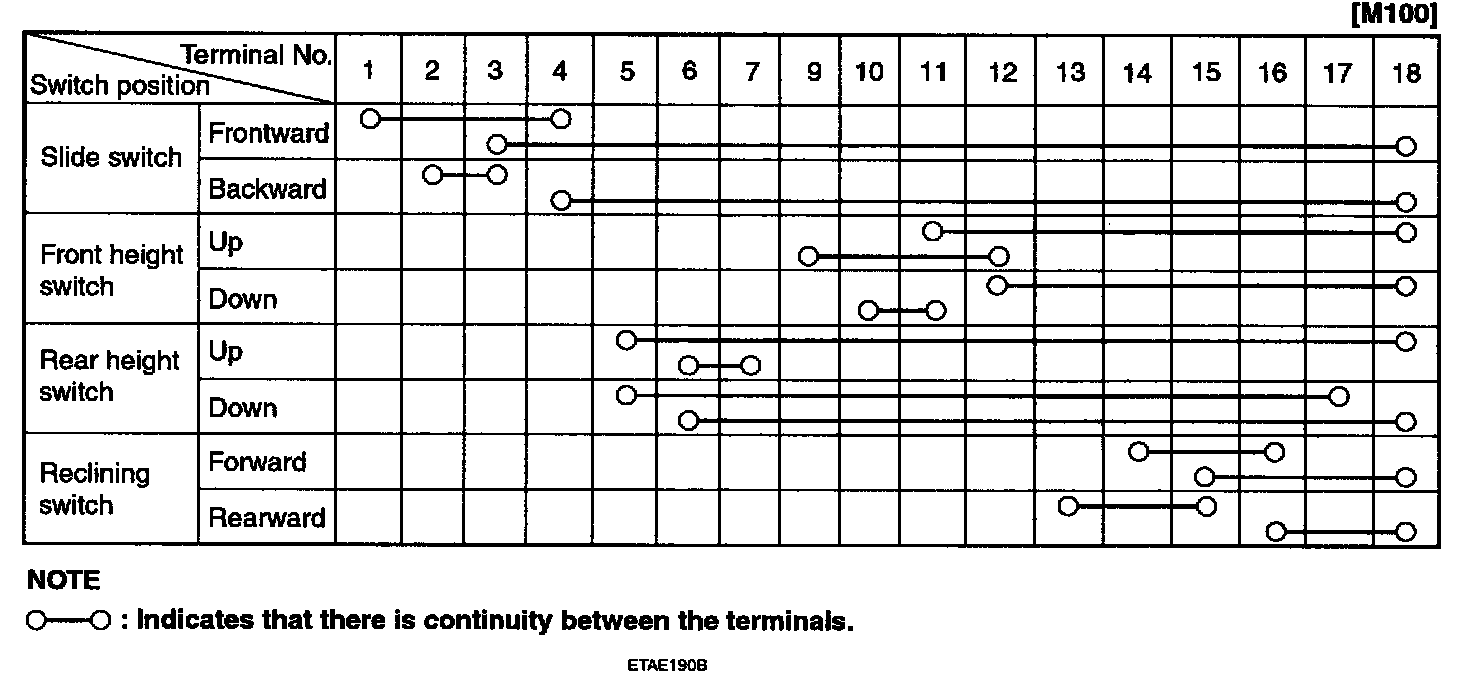

2. Operate the power seat switch and check for continuity between terminals. If continuity is not as specified, replace the switch.
