Front Seat

FRONT SEAT

Front Seat:

REMOVAL AND INSTALLATION

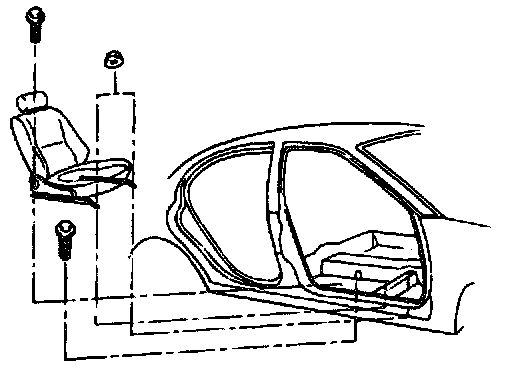

1. Remove the front seat mounting covers and loosen the mounting bolts.






Tightening torque: 35-55 Nm (350-550 kg.cm, 25.3-40 lb.ft)

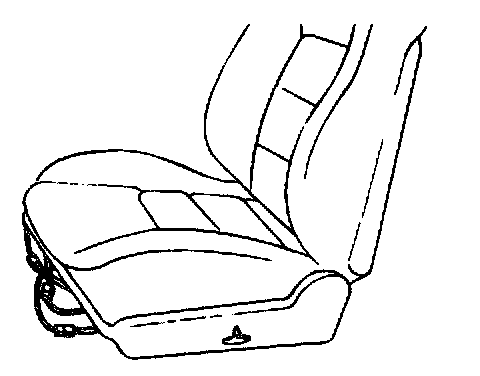

2. Disconnect the seat wiring connectors.

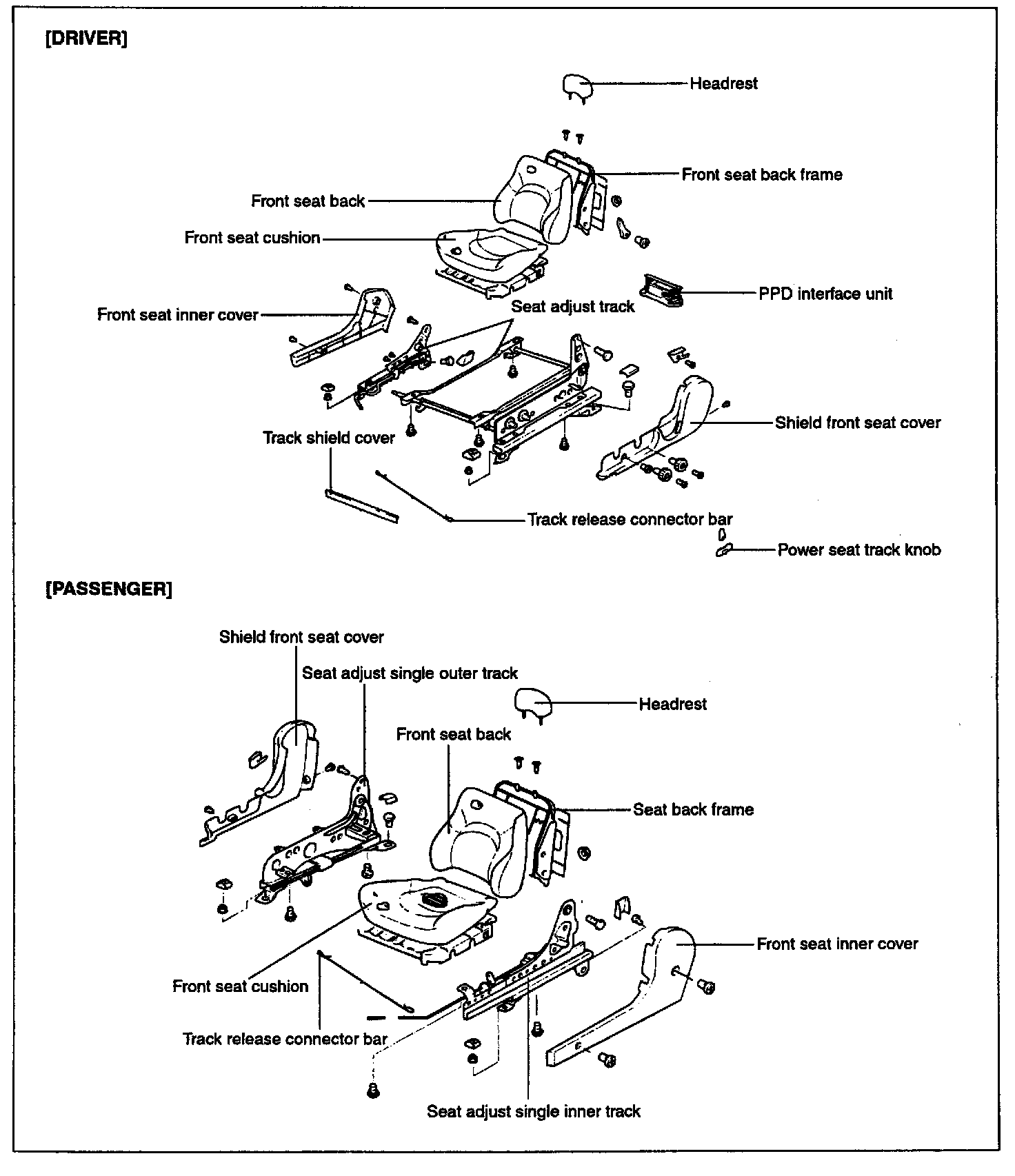

3. Remove the front seat assembly.
4. Installation is the reverse of removal.

NOTE: Connect the wire connectors securely.
