Sun Roof

SUN ROOF

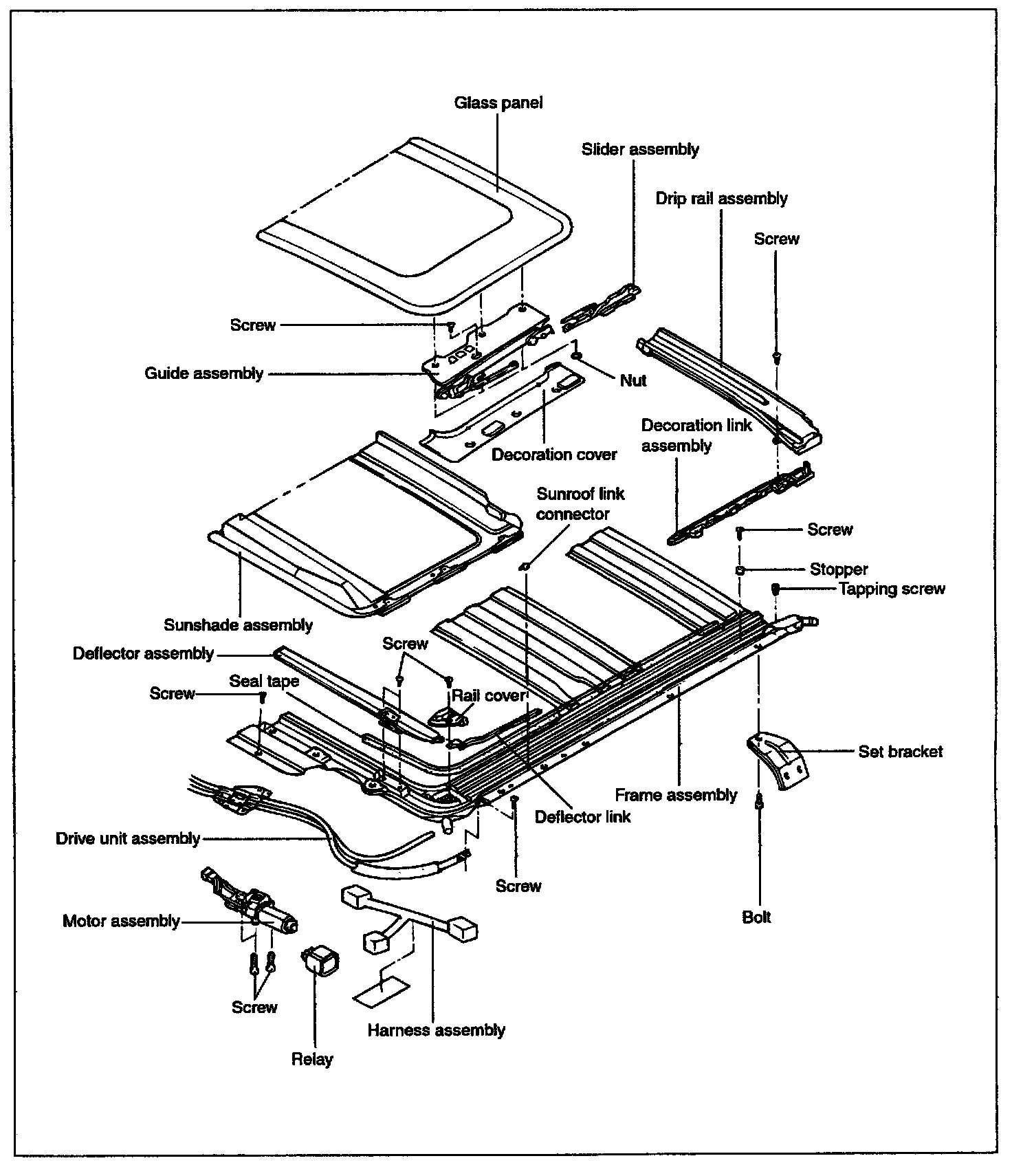

Sun Roof:

REMOVAL

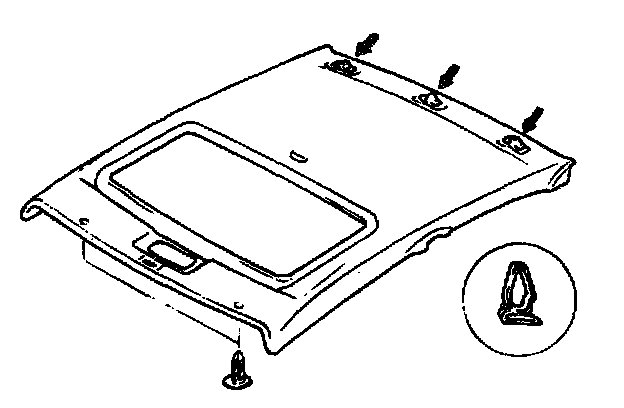

1. To remove the sunroof, first remove the following parts:
1. Overhead console lamp.
2. Sun visor and inside rear view mirror.
3. Pillar trims.
4. Assist handles.






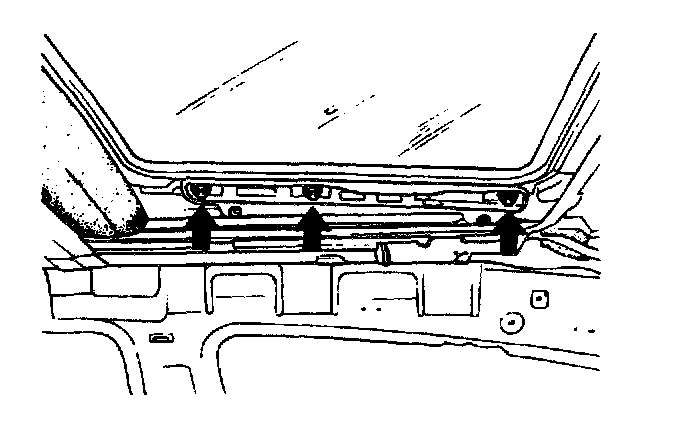

2. Remove the decoration cover and the glass panel.

Tightening torque
Glass panel mounting nuts: 4-6 Nm (40-60 kg.cm, 2.9-4.4 lb.ft)

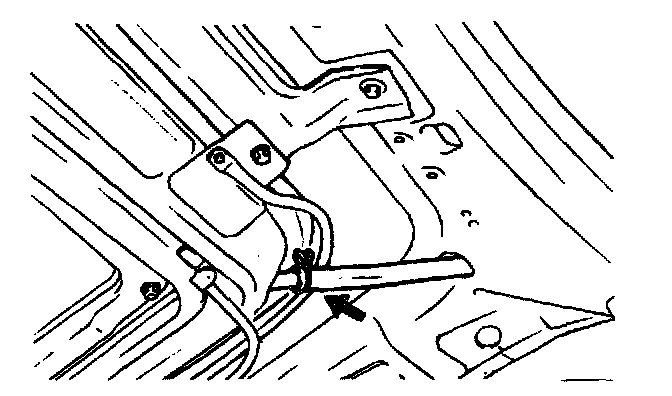

3. Disconnect the drain hose.

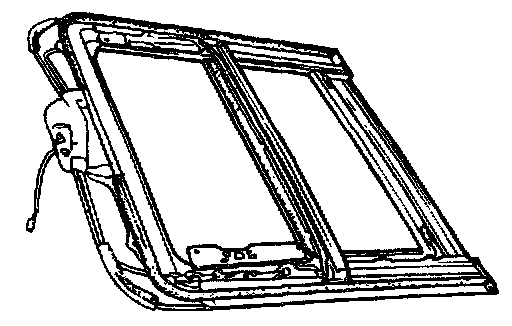

4. Loosen the bolts and nuts holding the sunroof and then remove the sunroof assembly.

Tightening torque
Sunroof mounting bolts: 7-11 Nm (70-110 kg.cm, 5.1-8.0 lb.ft)
Sunroof mounting nuts: 4-6 Nm (40-60 kg.cm, 2.9-4.4 lb.ft)

NOTE: When removing the sunroof assembly, carefully pull out the assembly to avoid damaging other parts.






INSTALLATION
Installation is the reverse of removal.

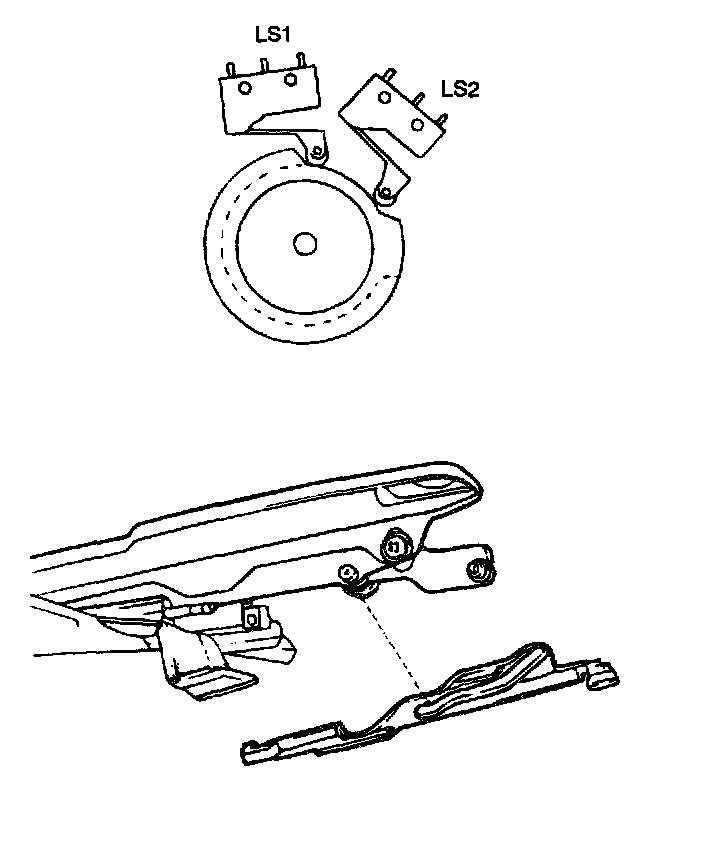

NOTE: Check that the limit switches (LS1 and LS2.of the motor are fully closed. Align the guide roller center and slider mating marks in the fully closed position.
