Sunroof / Moonroof: Adjustments

ADJUSTMENT

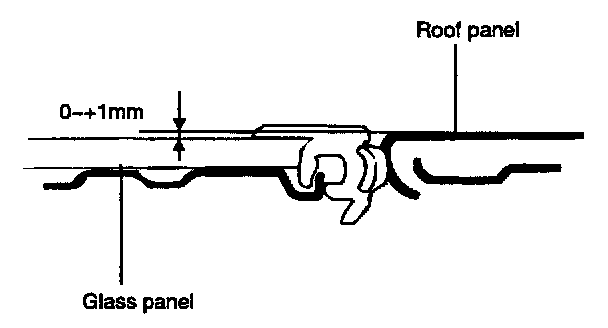

Adjust the height difference between the glass panel and the root panel.

Front side: 0 (+0, -1.0) mm
Rear side: 0 (+1, +0) mm

If the difference is not as specified, adjust using the following procedure.

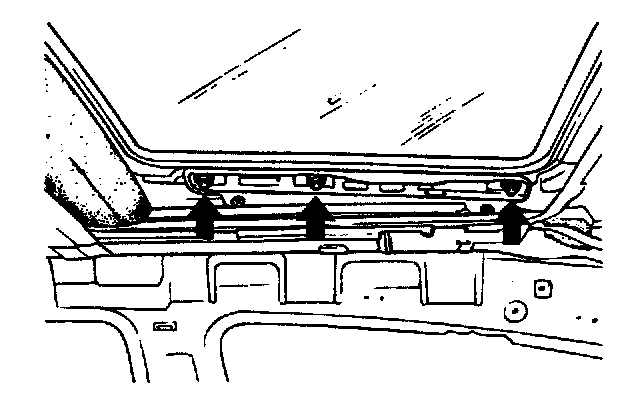

1. Loosen the front screw and rear screw. Adjust the height between the glass panel and roof panel.

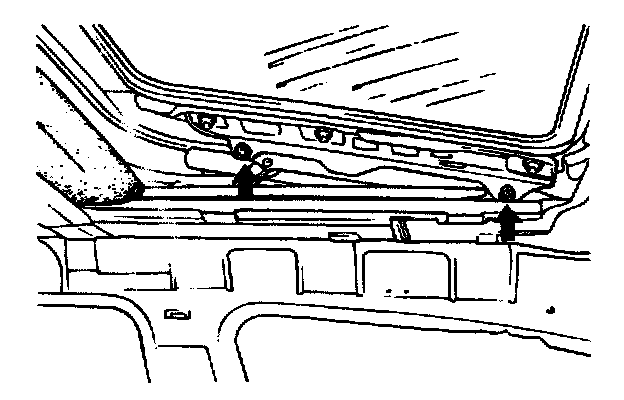

2. Loosen the nuts holding the glass panel and adjust the gap between the glass panel and roof panel.
