Center Pillar Trim Replacement

CENTER PILLAR TRIM

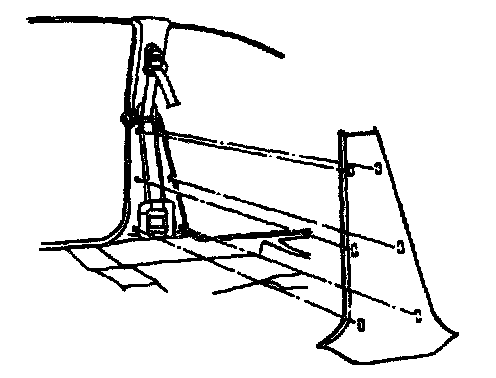

1. Pry the center pillar lower trim loose with a flat-tip screwdriver.

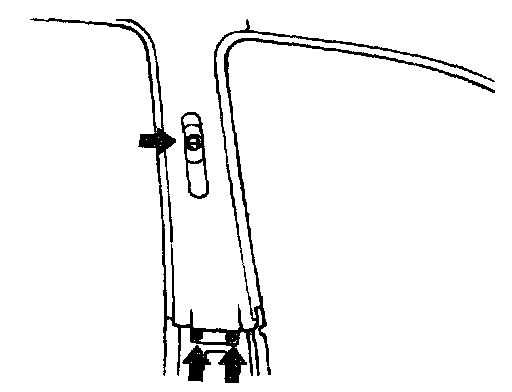

2. Remove the bolt holding the seat belt upper anchor and pry loose the center pillar upper trim.
