Headliner: Service and Repair
HEADLINER1. To remove the headliner, first remove the following parts.

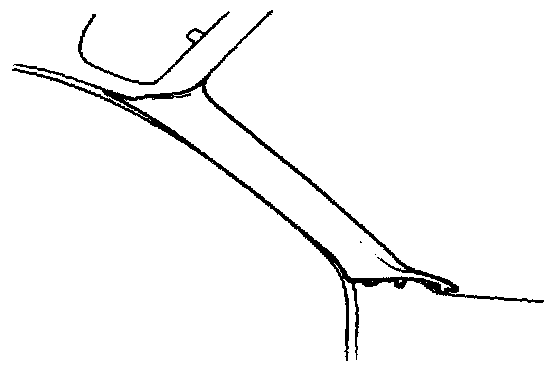

1. Front pillar trim

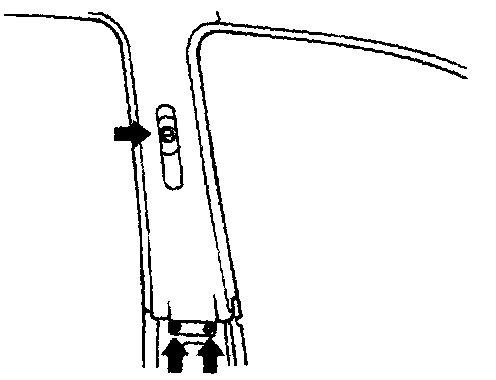

2. Center pillar upper trim

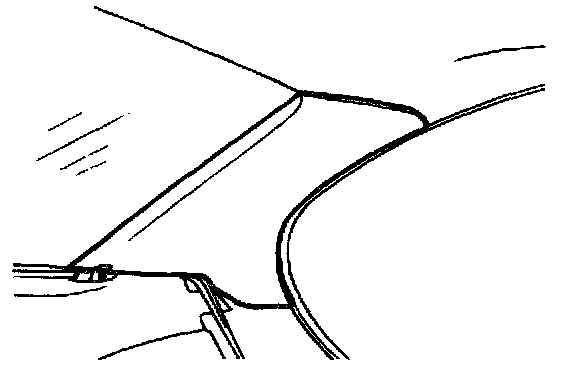

3. Rear pillar trim

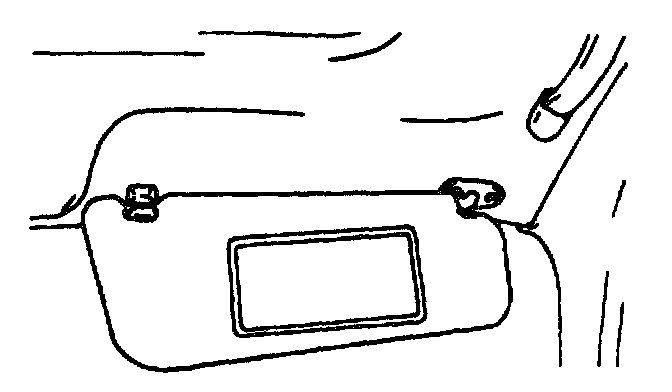

2. Remove the sun visor and sun visor retainer.

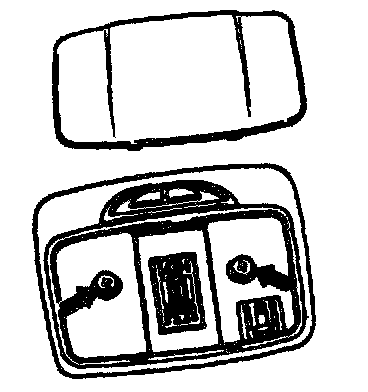

3. Detach the map lamp lens with a flat-tip screwdriver.
4. Remove the map lamp assembly.

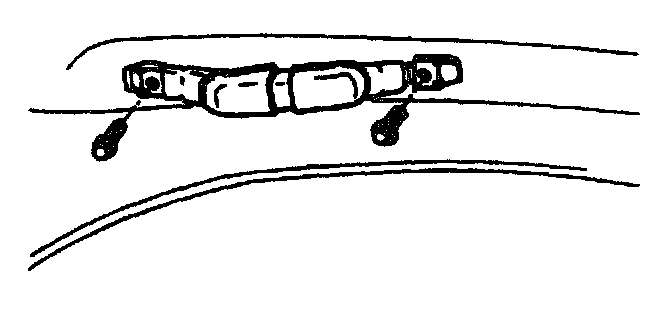

5. Remove the assist grip.

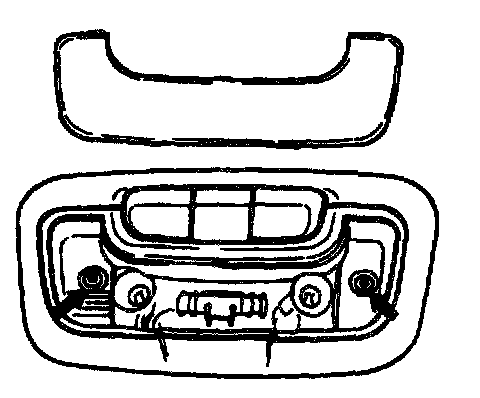

6. Detach the room lamp lens with a flat-tip screwdriver.
7. Remove the room lamp assembly.

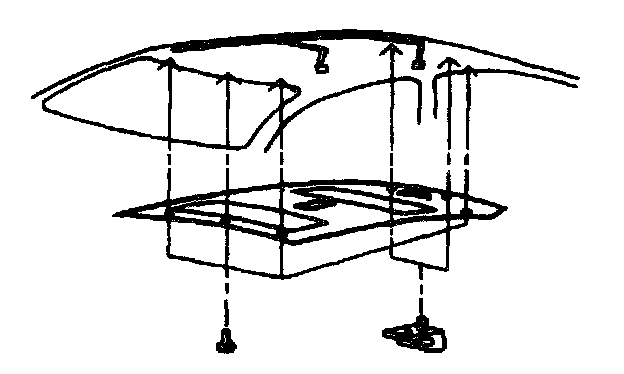

8. Carefully pry the headliner loose after removing the trim plugs.
9. Installation is the reverse of removal.
