Console: Service and Repair

CONSOLE

REMOVAL

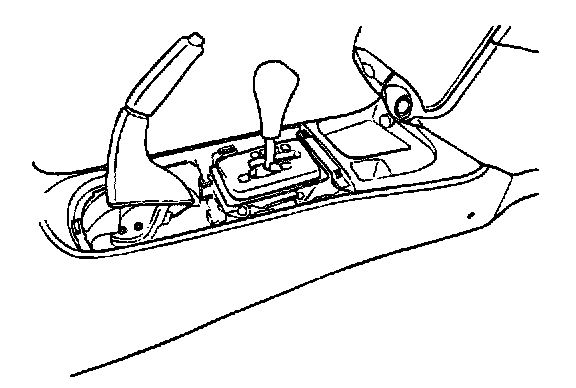

1. Pry the rear upper cover from the floor console with a flat-tip screwdriver.

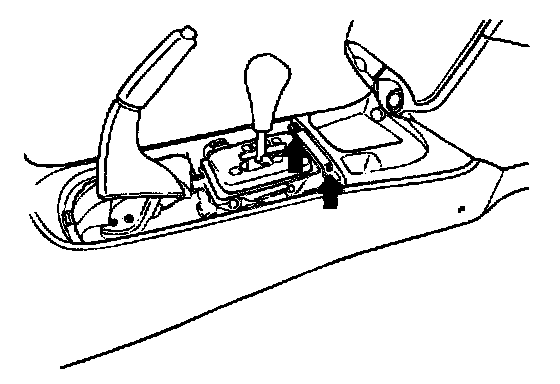

2. Remove the front upper cover from the floor console after removing 2 screws.

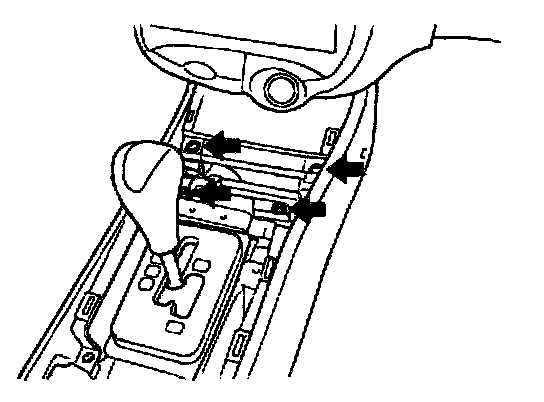

3. Remove the floor console mounting screws (2EA) and bolts (2EA).

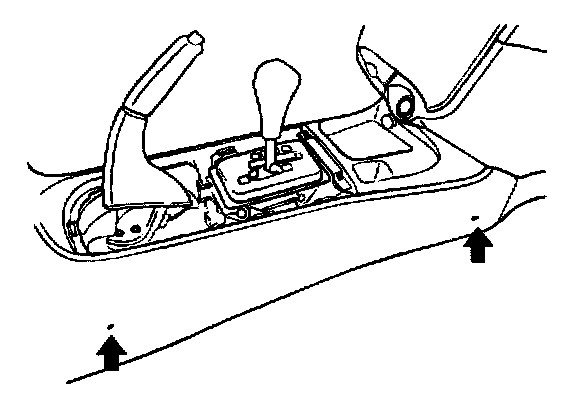

4. Remove the floor console assembly after removing 4 screws.






5. Installation is the reverse of removal.
