Trunk / Liftgate: Service and Repair

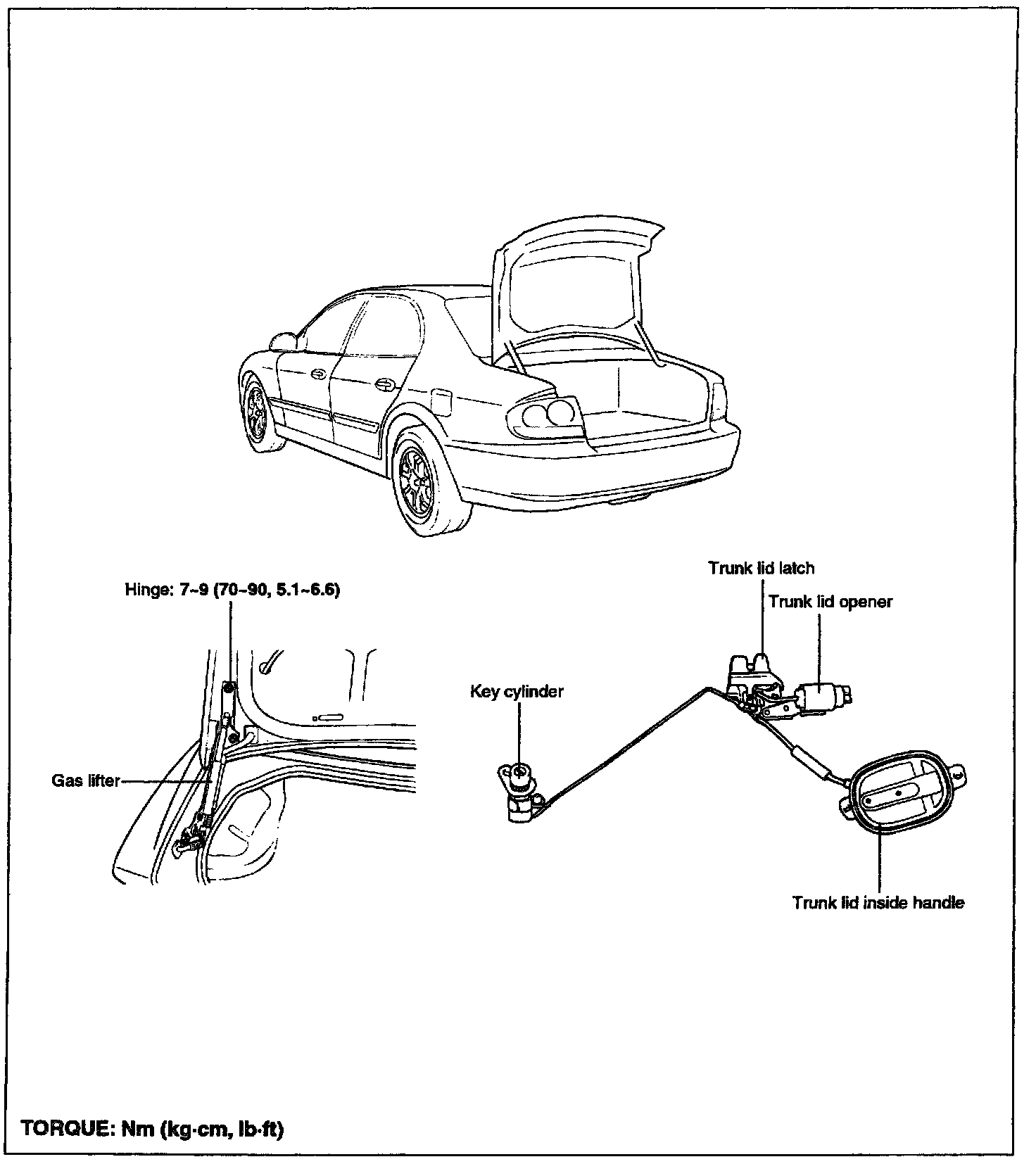

Trunk Lid

Trunk Lid:

REMOVAL

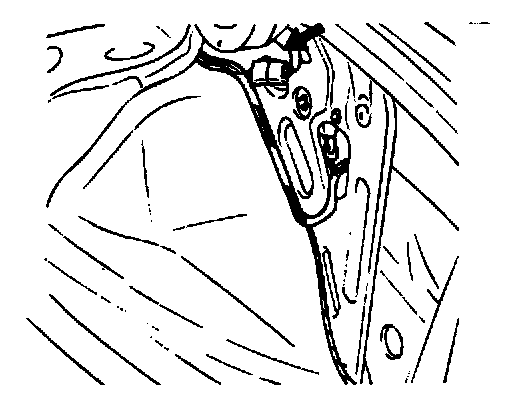

1. Remove the trunk lid main wiring.

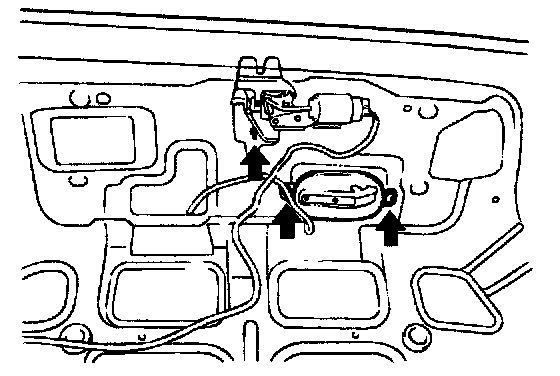

2. Remove the trunk lid inside handle mounting screws and disconnect the rod.
Remove the trunk lid latch assembly.

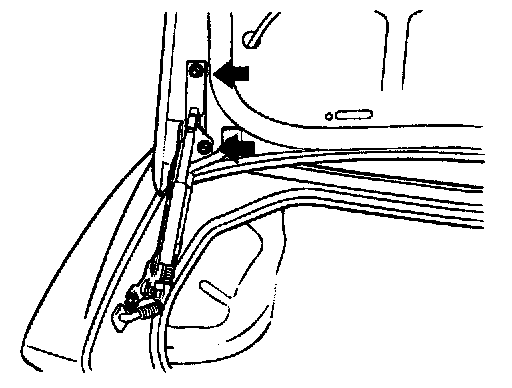

3. Remove the trunk lid hinge mounting bolts and then remove the trunk lid assembly.






4. Installation is the reverse of removal.

INSTALLATION
1. Installation is the reverse of removal.

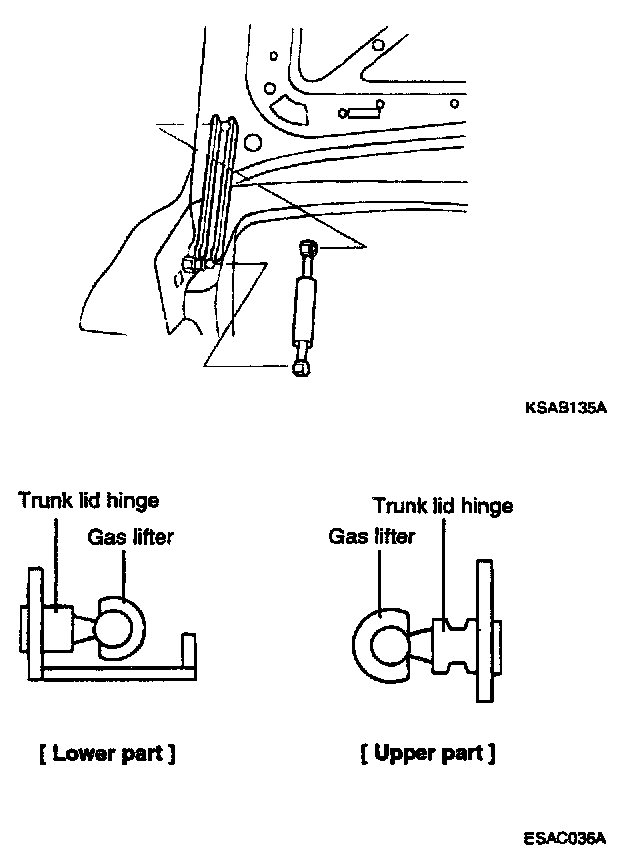

2. Insert the ball joint into trunk lid lifter completely.
