Hood: Adjustments

HOOD ALIGNMENT ADJUSTMENT

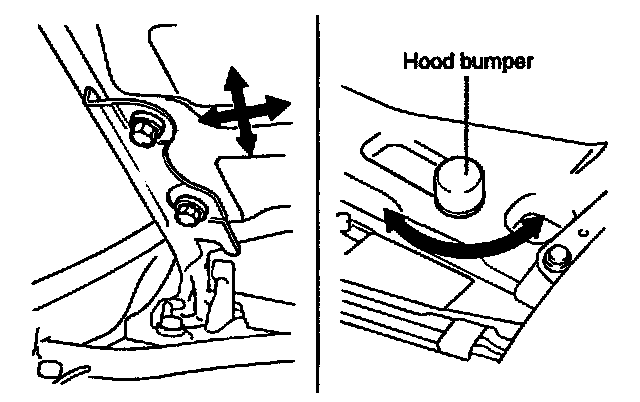

1. Adjust the longitudinal and lateral positions of the hood by utilizing the holes in the hinge.
2. Turn the hood bumpers either clockwise or counterclockwise to adjust the height of the hood.

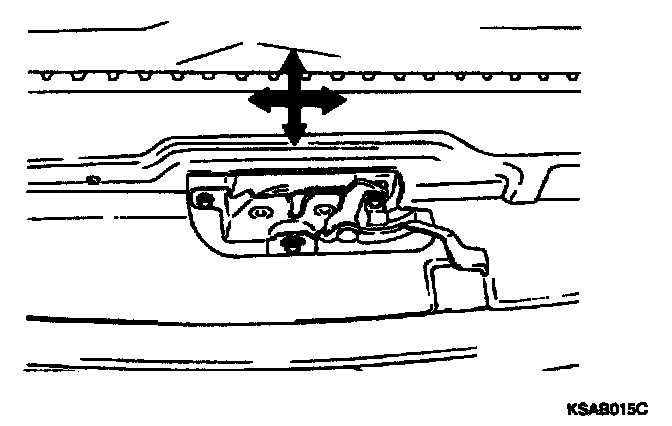

3. Loosen the hood latch mounting bolts.
4. Adjust the alignment of the hood striker and the hood latch by adjusting the horizontal and vertical position of the latch and the height of the hood.
