Fuel Door: Testing and Inspection

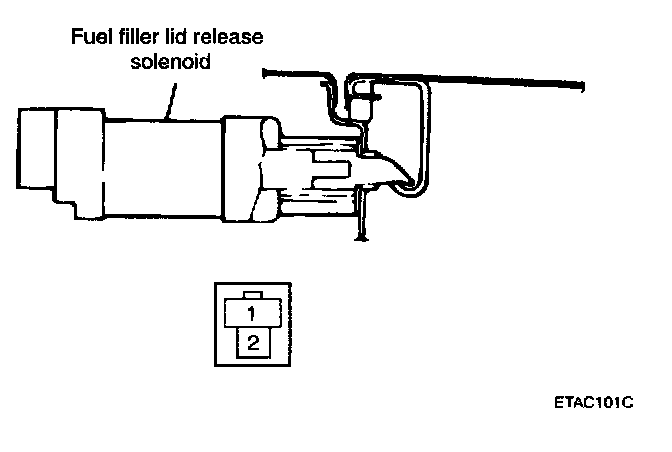

FUEL FILLER LID RELEASE SOLENOID

1. Remove the trunk left side trim.
2. Open the fuel filler lid.

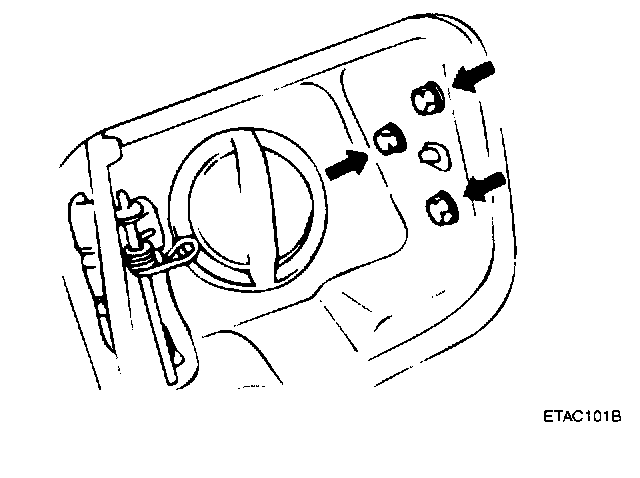

3. Remove the bolts that support the fuel filler lid release and disconnect the wiring connector.




4. Check that there is continuity between terminals 1 and 2.
If there isn't, replace the fuel filler lid release.
