Front Door: Adjustments

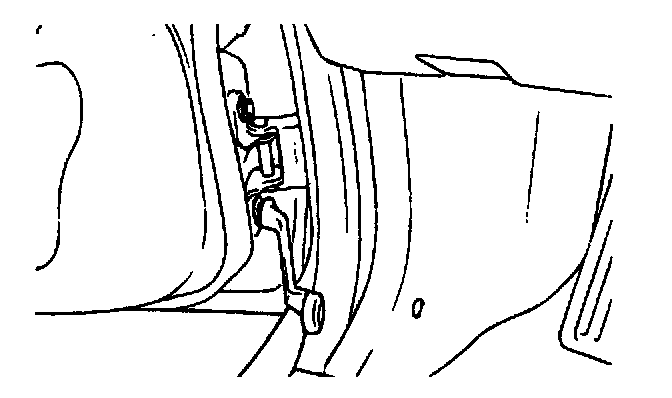

DOOR POSITION ADJUSTMENT

Check for a flush fit with the body; then check for an equal gap between the front and rear, top and bottom door edges and body. The door and body edges should also be parallel.

CAUTION: Attach a protective tape to the fender edges where the hinge is installed.
