Rear Bumper: Service and Repair

REAR BUMPER

Rear Bumper:

REMOVAL

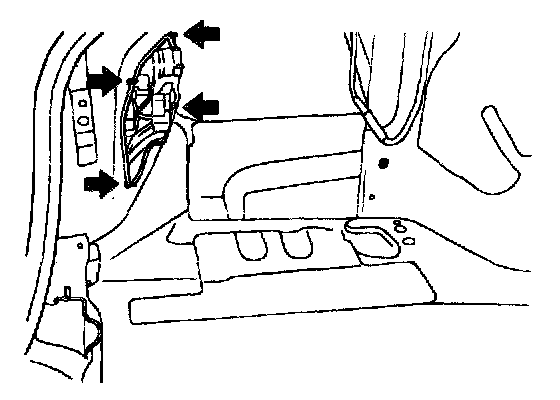

1. Remove the rear combination lamp mounting nuts (4EA) inside of the luggage compartment and disconnect the lamp connectors.

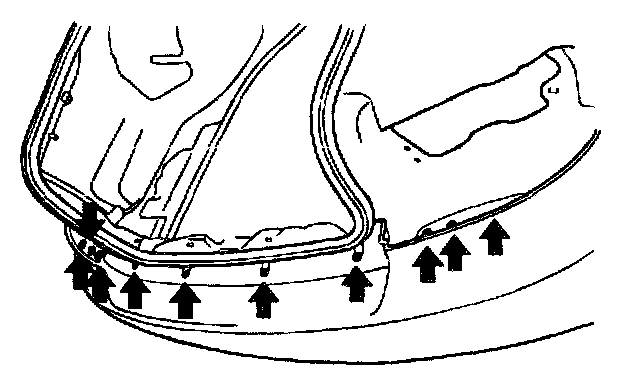

2. Remove the upper mounting retainers(10EA) and lower mounting retainers(3EA) from the rear bumper.

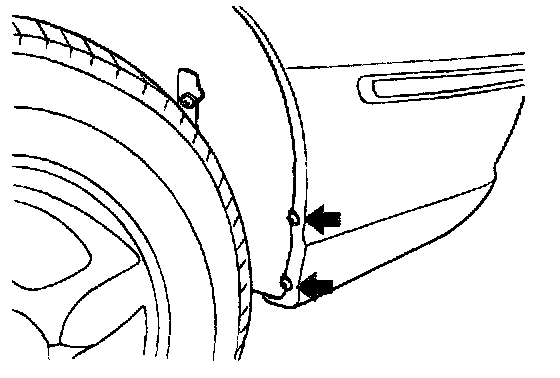

3. Remove the rear bumper cover mounting screws from the rear wheel guard.

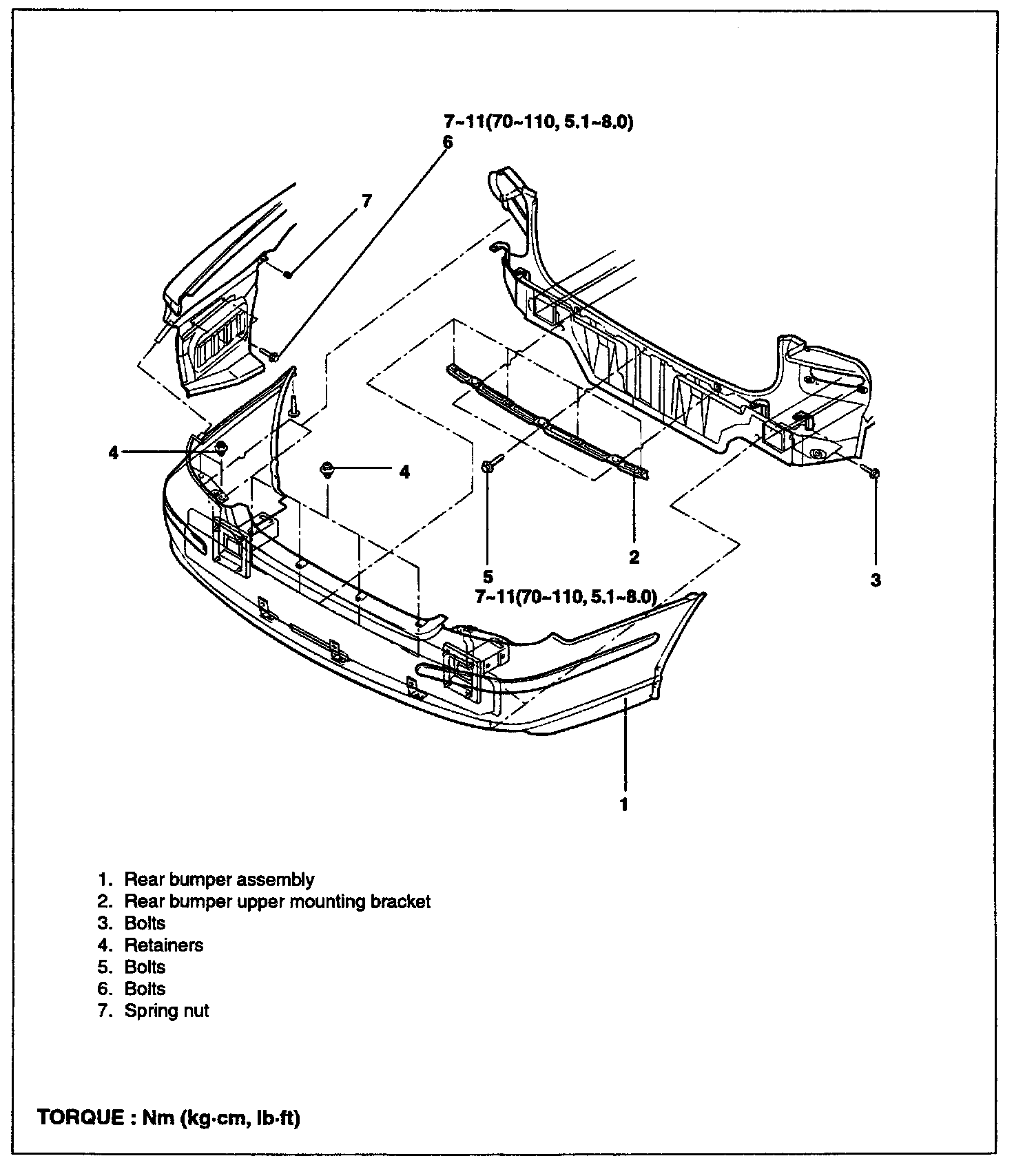

4. Remove the rear bumper cover assembly.

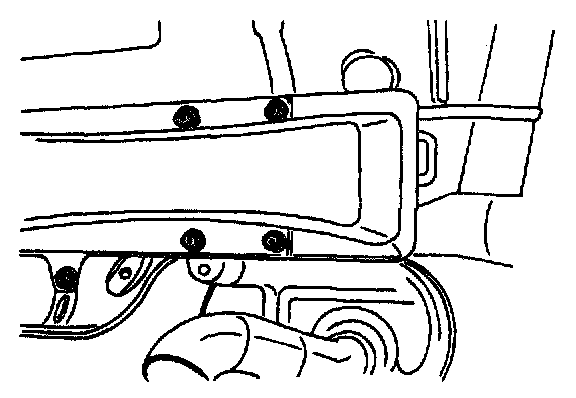

5. Remove the rear bumper stay mounting bolts.






6. Installation is the reverse of removal.
