Antitheft and Alarm Systems: Service and Repair

REMOVAL

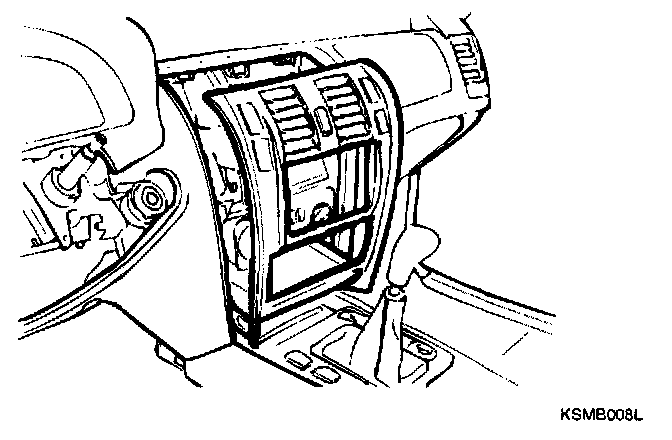

1. Remove the center facia panel using a screwdriver and disconnect the switch connectors.

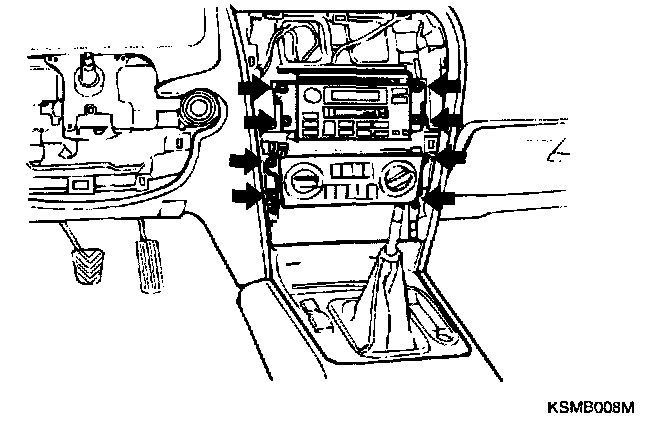

2. Remove the audio unit.

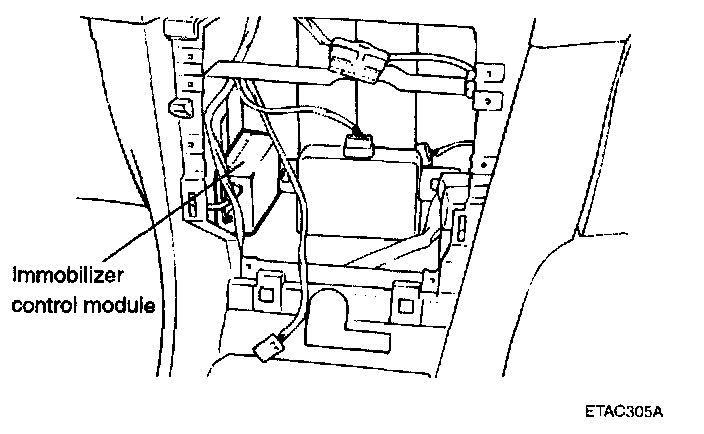

3. Remove the flange nuts holding the ICM(Immobilizer Control Module) from left hand center facia support bracket.
