Antilock Brake System (ABS)

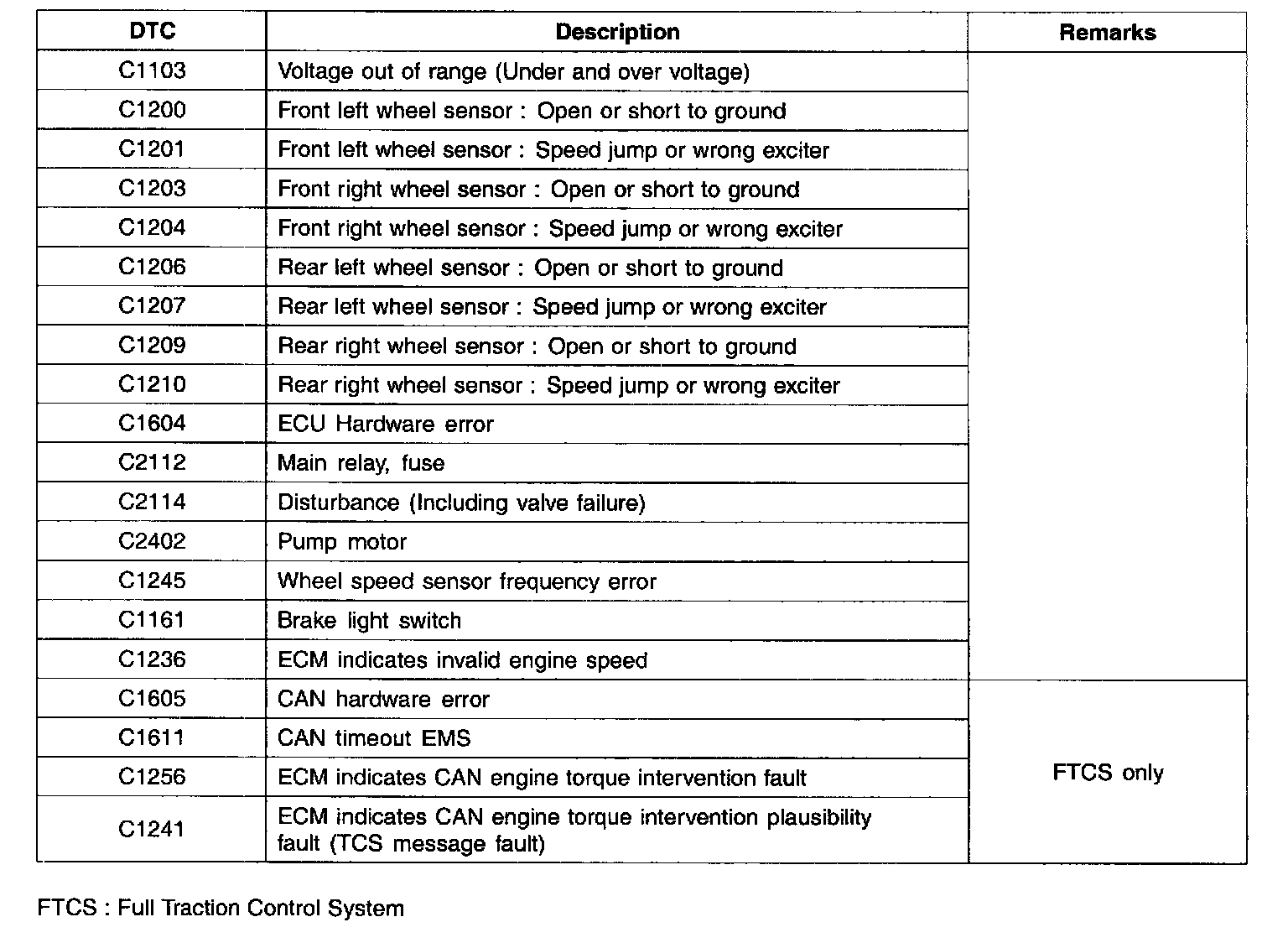

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES
Inspect according to the inspection chart that is appropriate for the malfunction code.
FTCS: Full Traction Control System

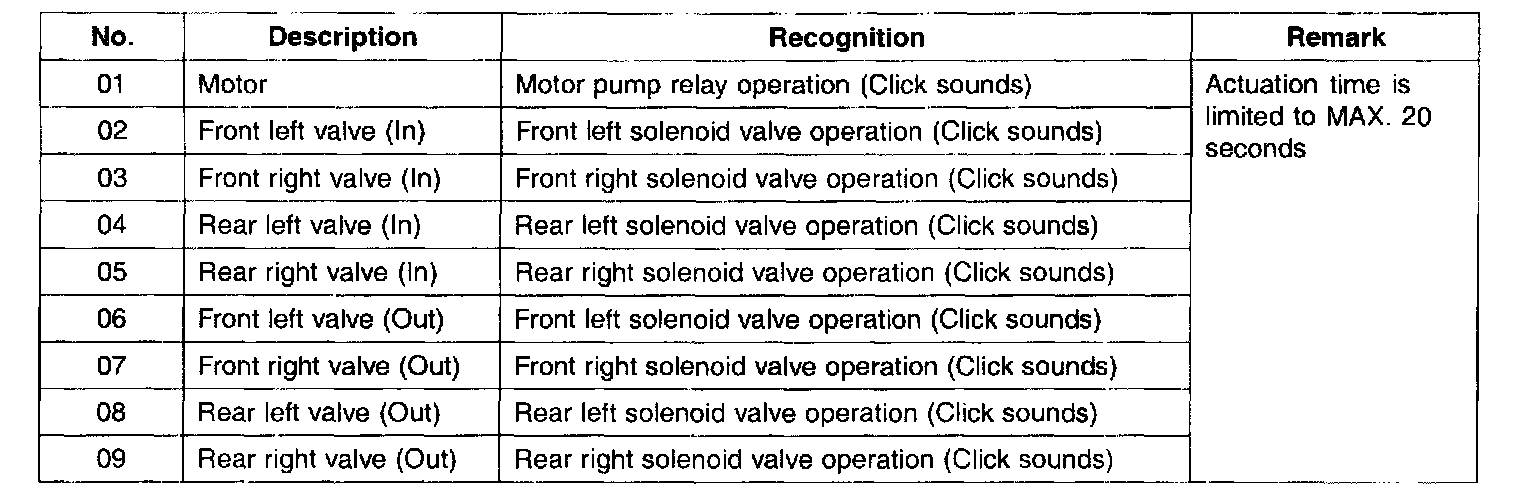

ACTUATOR DRIVING

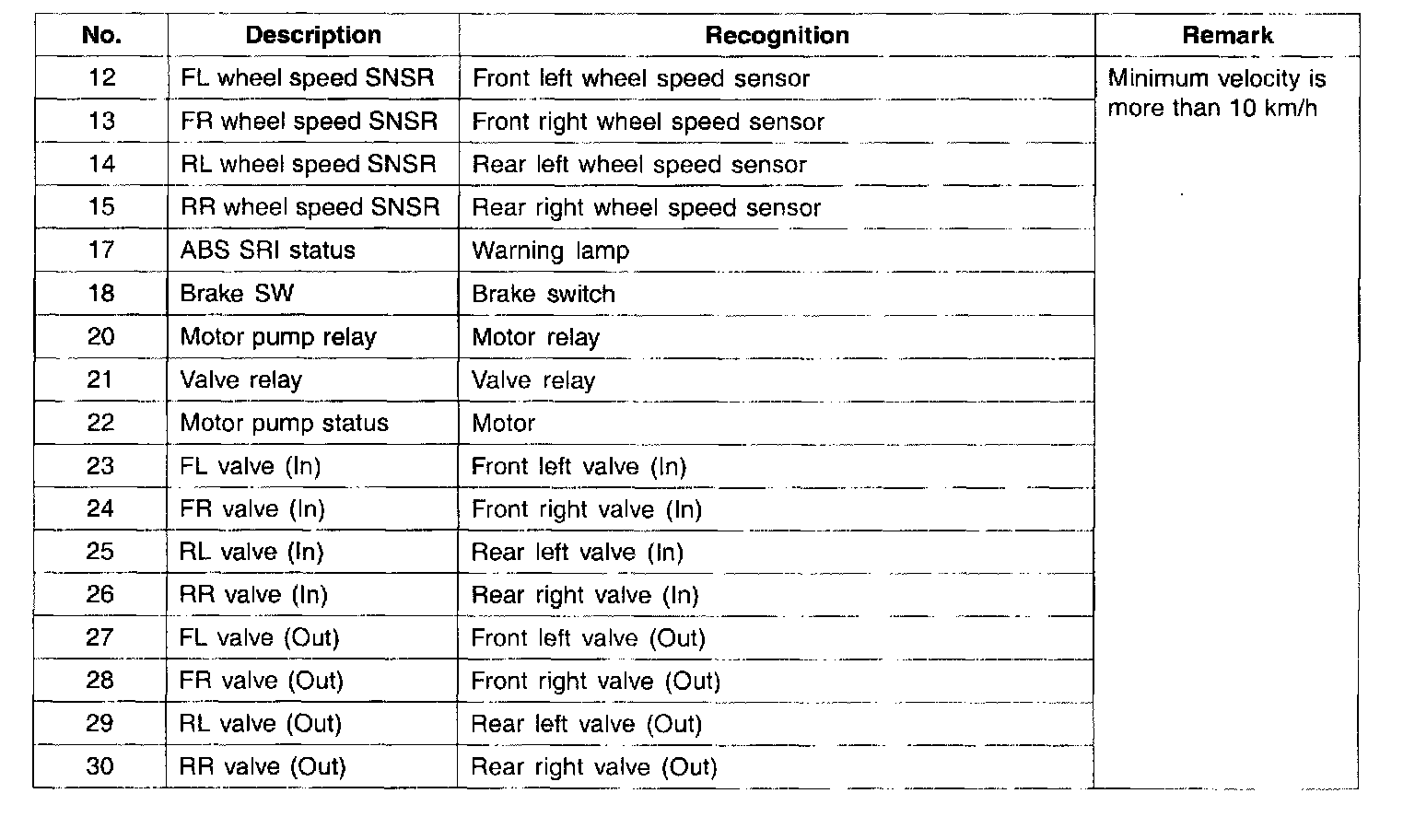

CURRENT DATA
Inspect according to the inspection chart that is appropriate for the malfunction code.
FTCS: Full Traction Control System
ACTUATOR DRIVING
CURRENT DATA
