Front Wiper Motor

REMOVAL

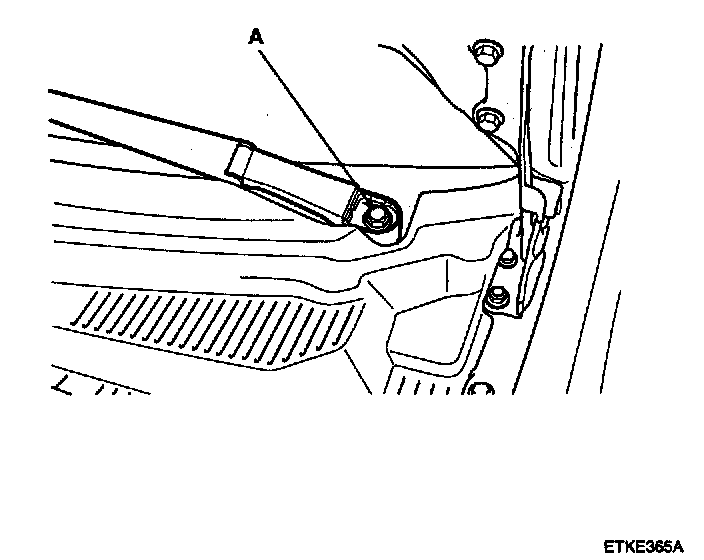

1. Remove the windshield wiper arm and blade after removing a nut (A).

Tightening torque
23-28 Nm (230-280 kg-cm, 16.9-20.61 lb-ft)

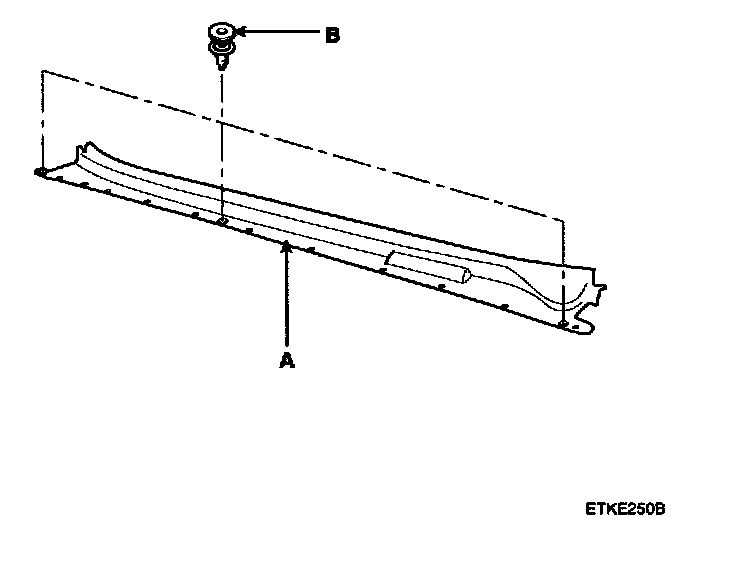

2. Remove the weatherstrip then remove the cowl top cover (A) after removing 3 clips (B).

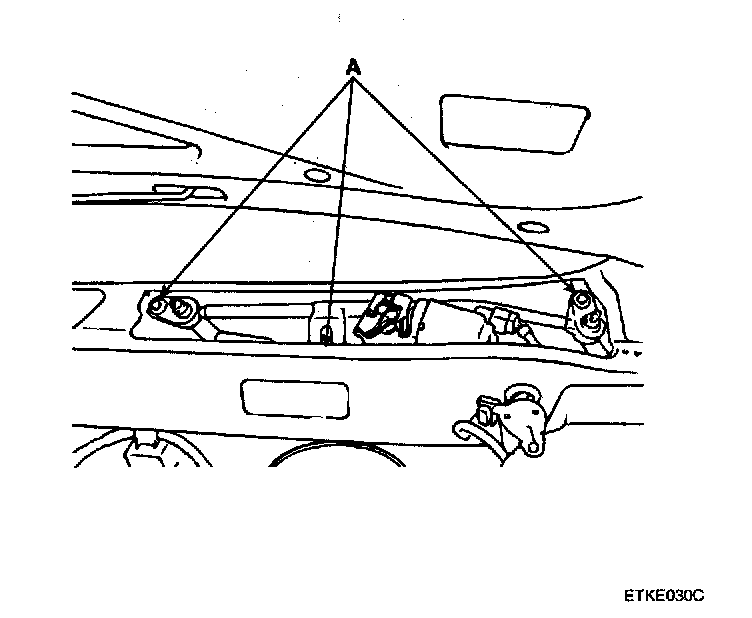

3. Remove the windshield wiper motor and linkage assembly after removing 3 bolts(A).

Tightening torque
7-11 Nm (70-110 kg-cm, 5.1-8.1 lb-ft)

4. Installation is the reverse of removal.

INSTALLATION

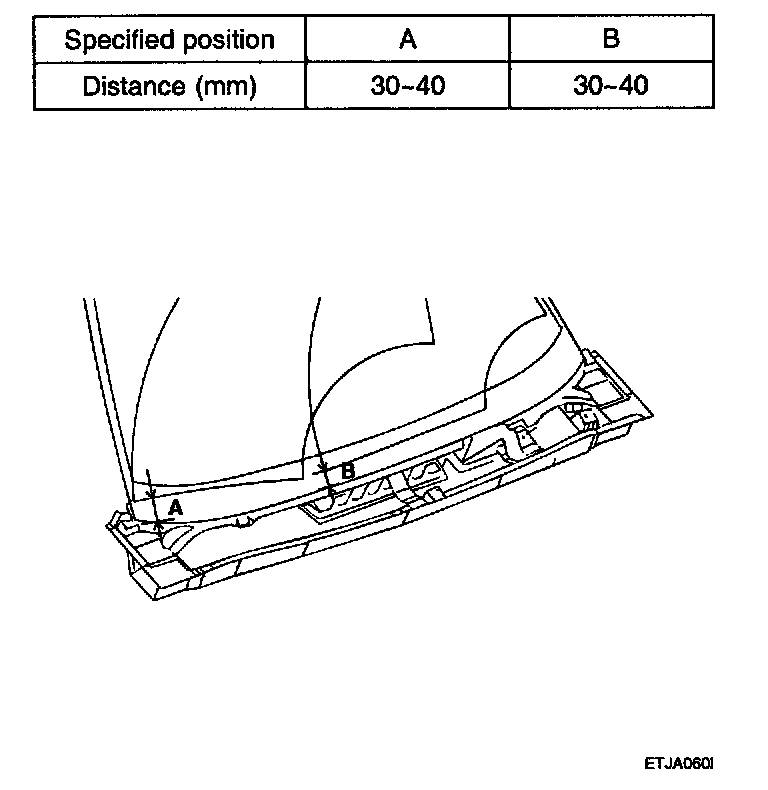

1. Install the wiper arm and blade to the specified position.

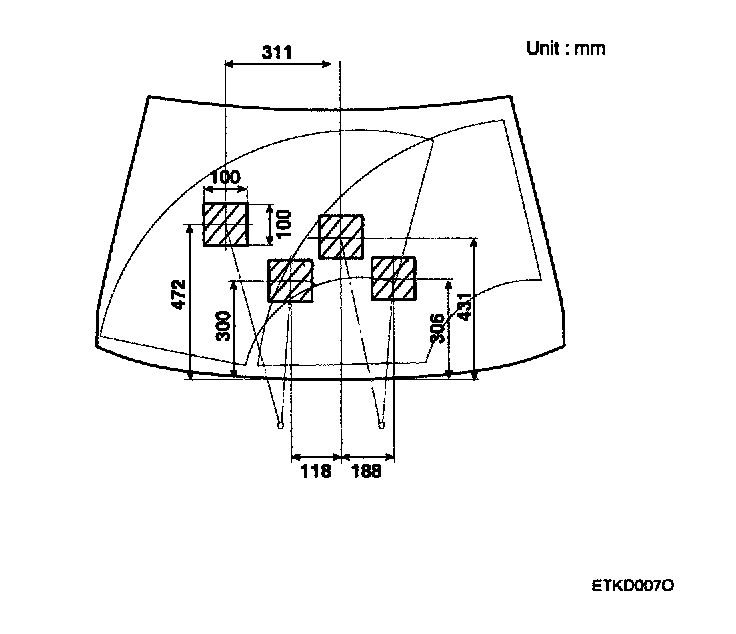

2. Set the washer nozzle on the specified spray position.
