Transaxle Range Switch Continuity Check

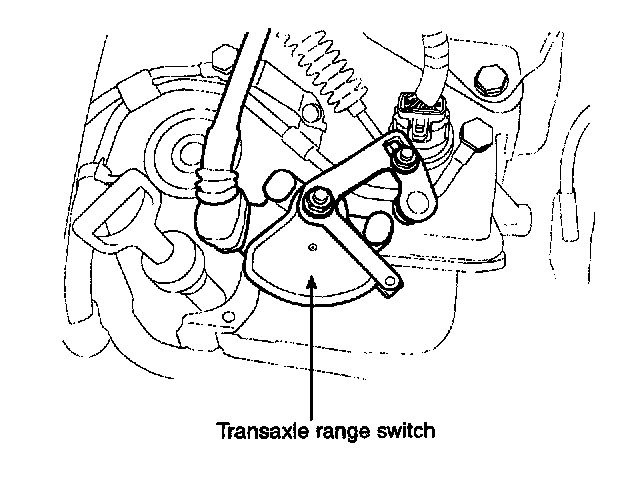

TRANSAXLE RANGE SWITCH CONTINUITY CHECK

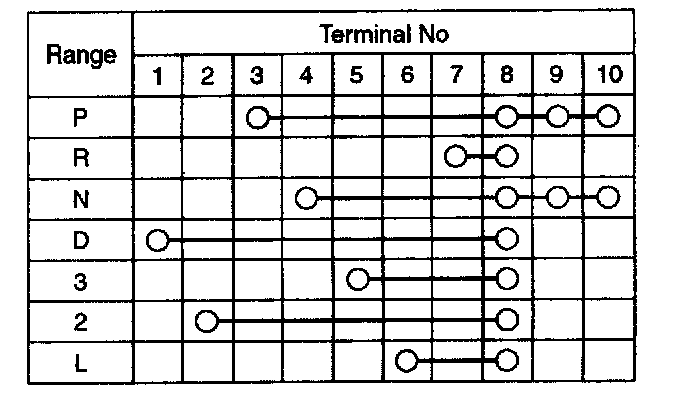

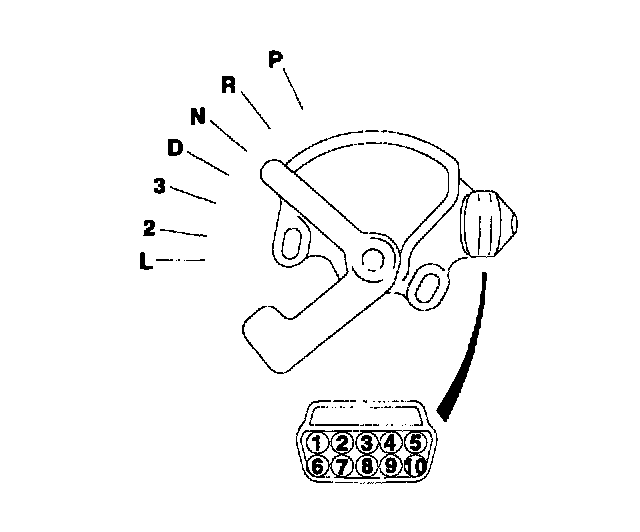

Continuity check

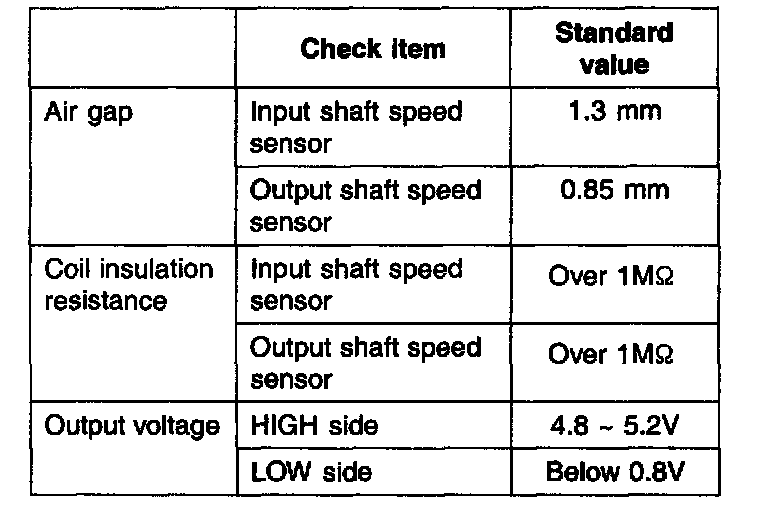

IN/OUTPUT SHAFT SPEED SENSOR CHECK





Check the wave form by the scan tool
