Fluid Diagrams

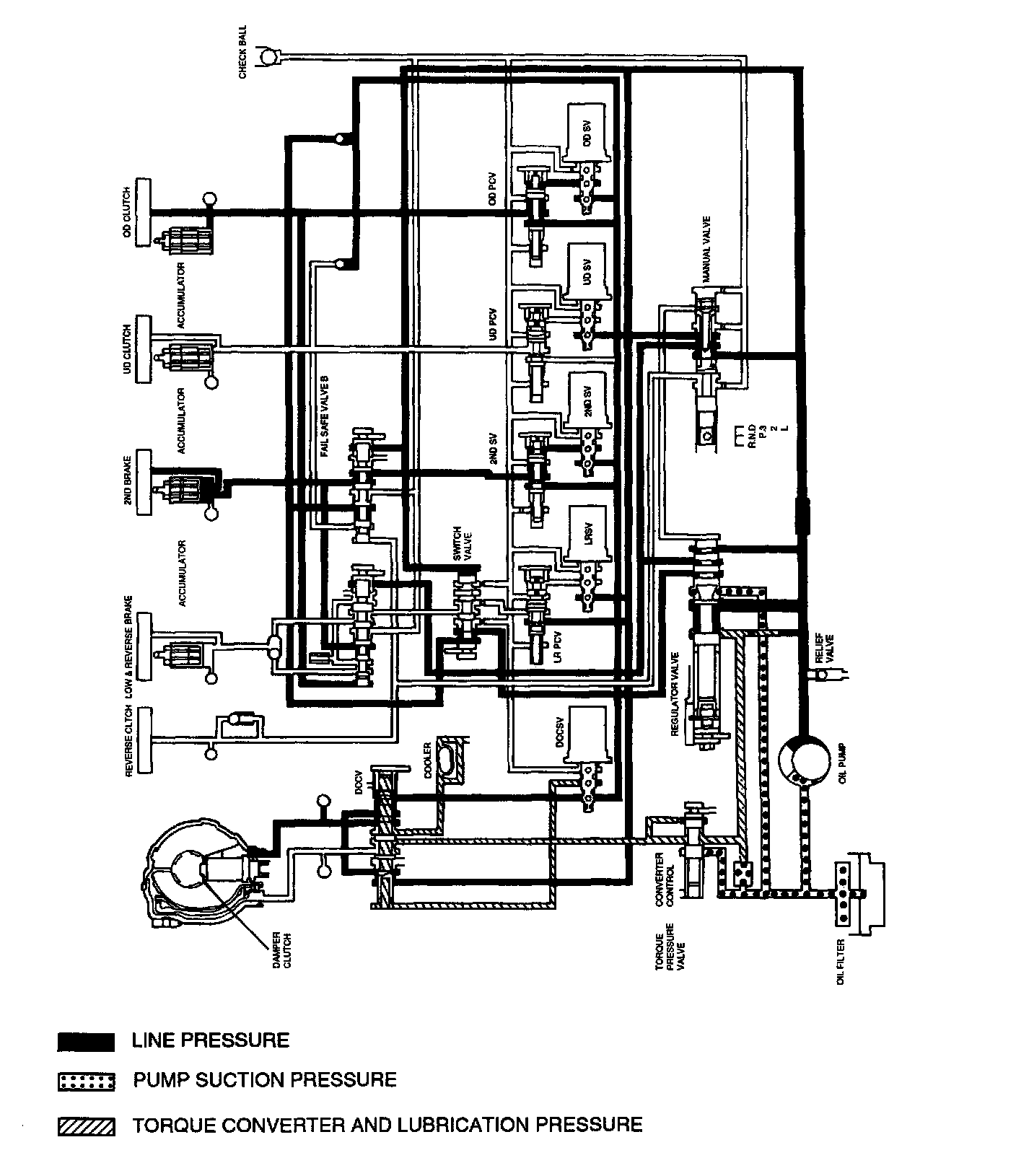

Park & Neutral:

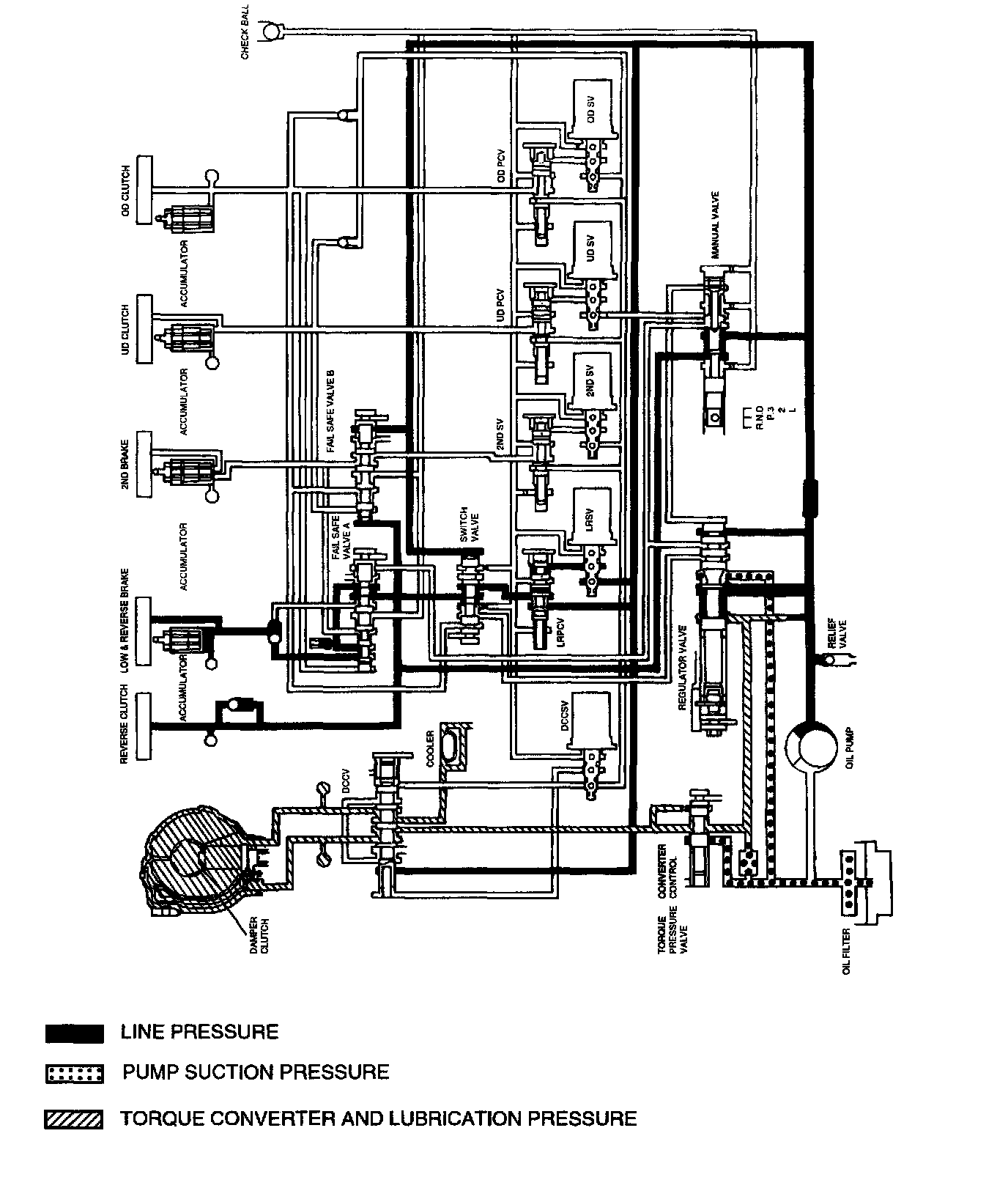

First:

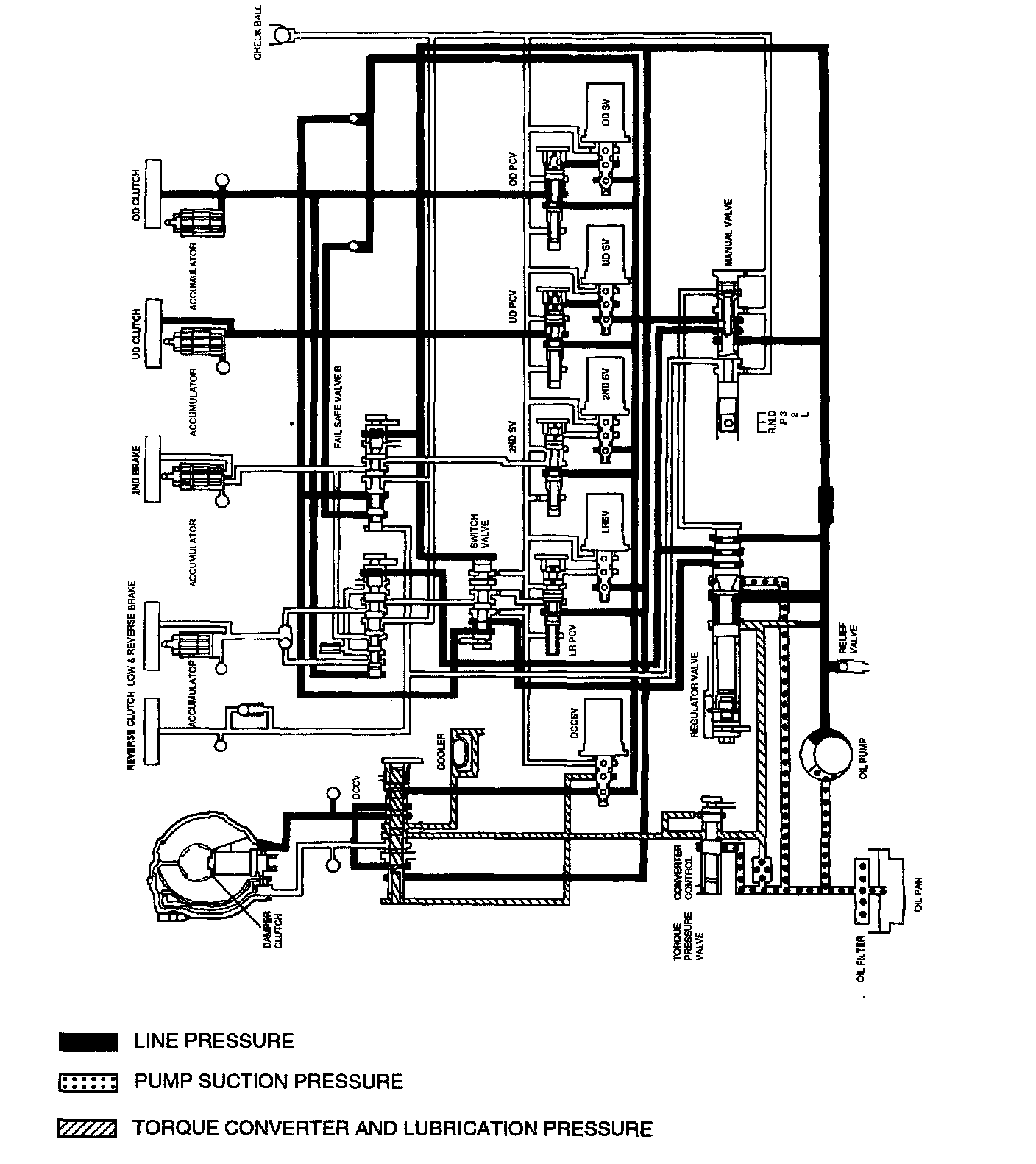

Second:

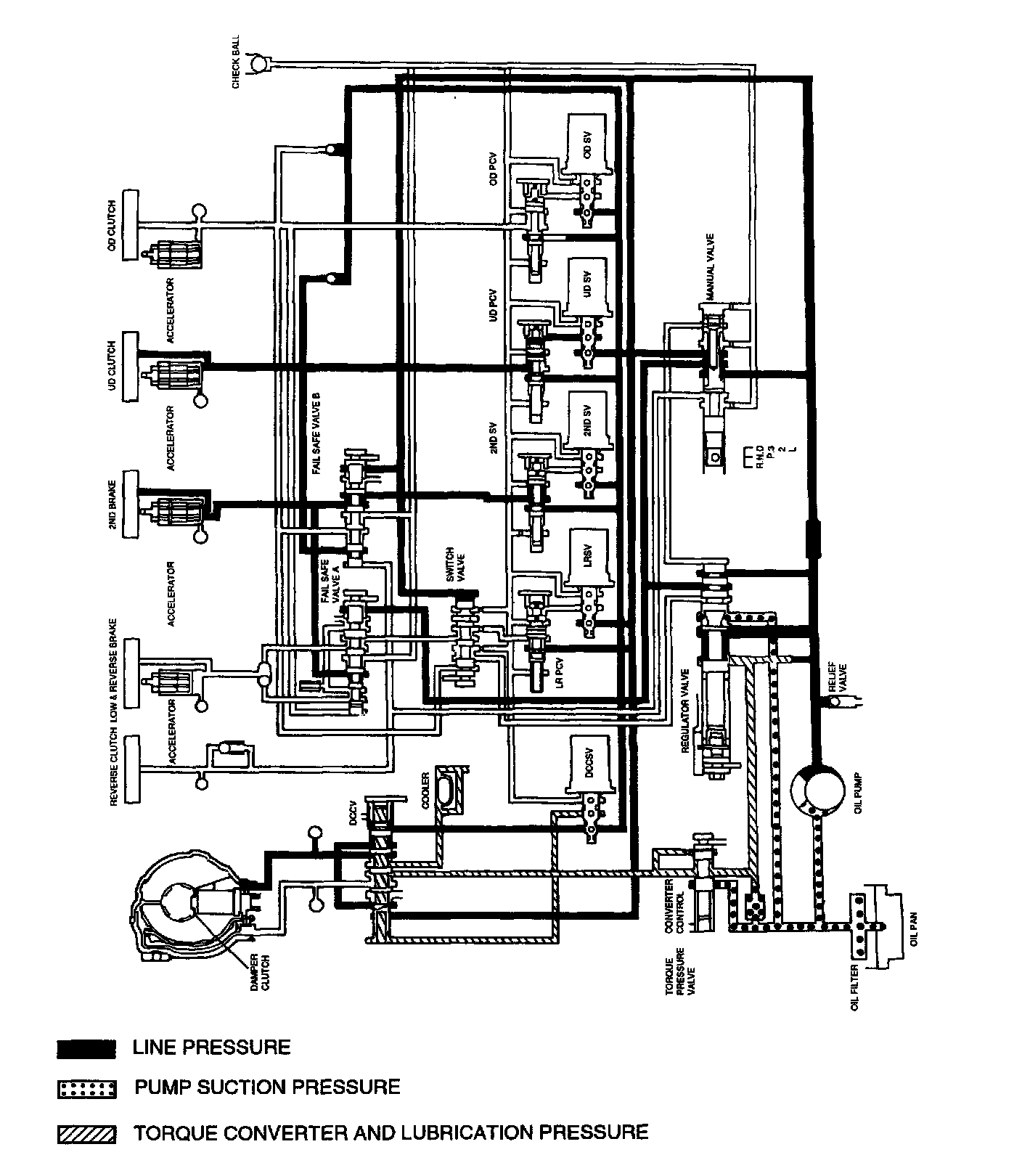

Third:

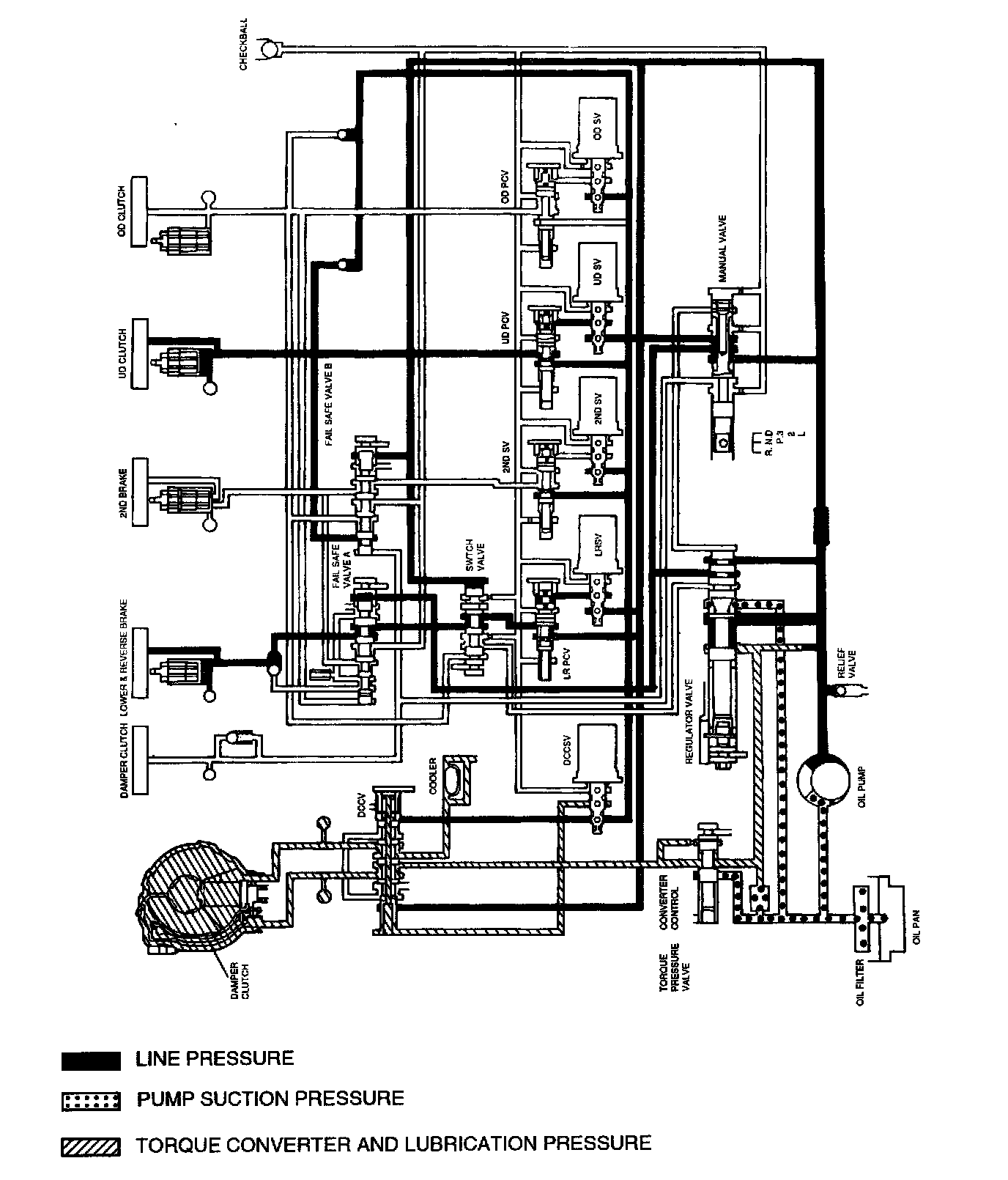

Fourth:

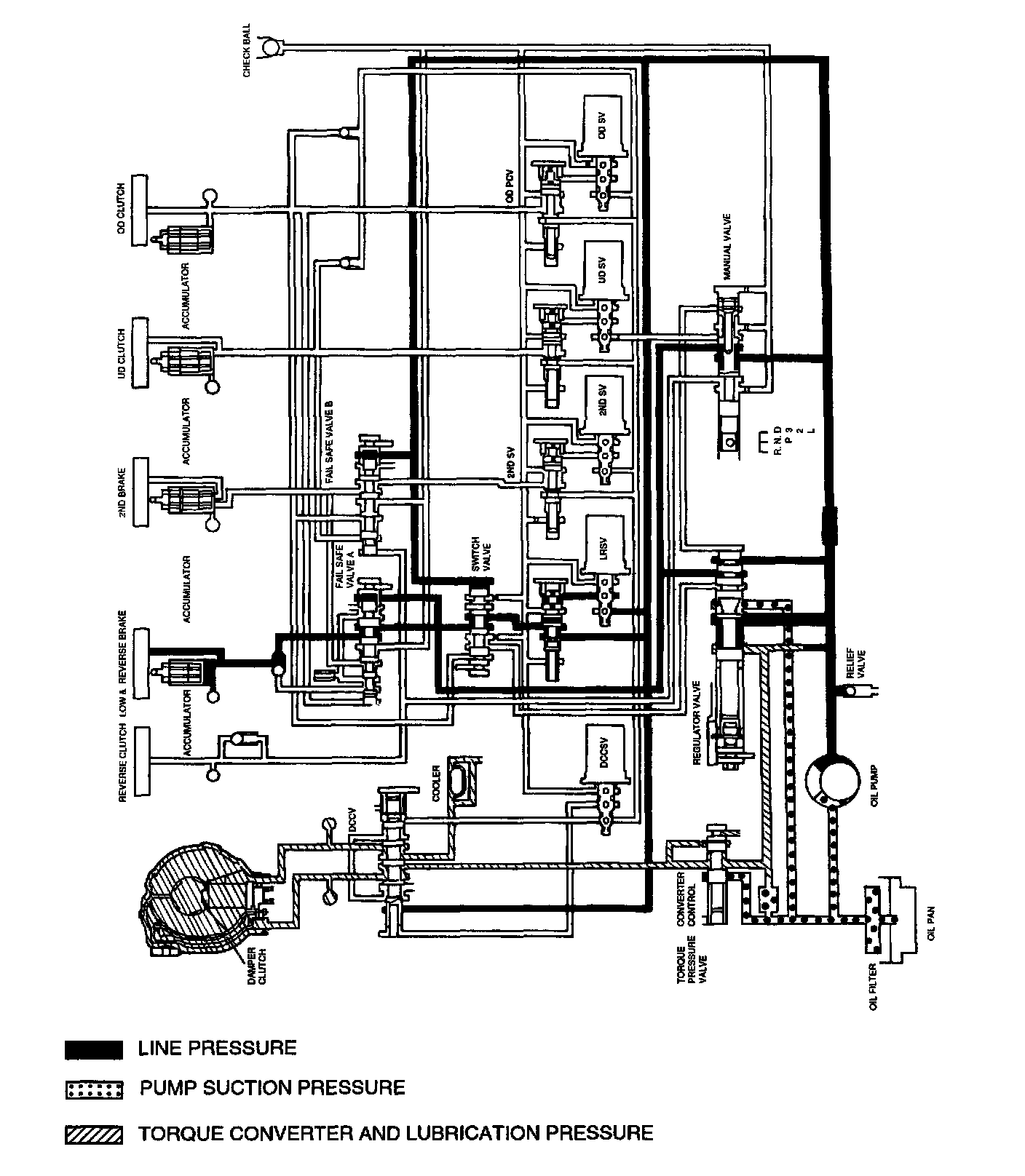

Reverse:





AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (F4A42)
