Low-Reverse Brake End Play Adjustment

LOW-REVERSE BRAKE END PLAY ADJUSTMENT

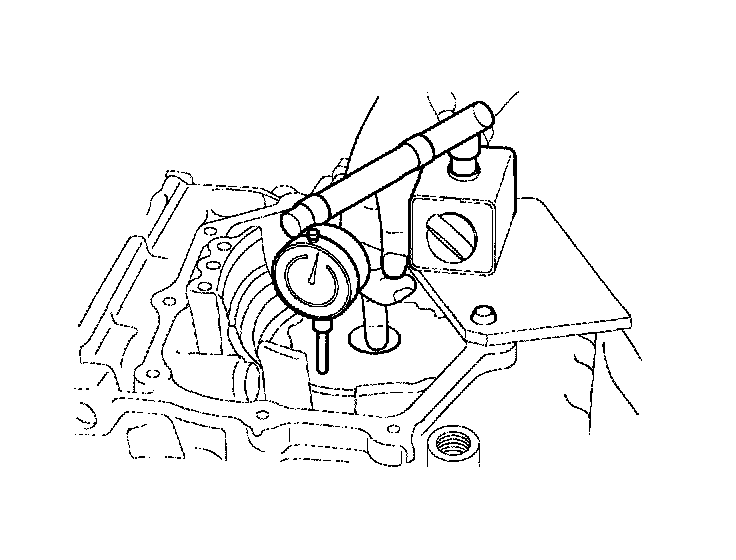

Reverse the transmission and install the dial gauge. Move the special tool up and down to measure the end play.
Standard value: 1.35-1.81 mm

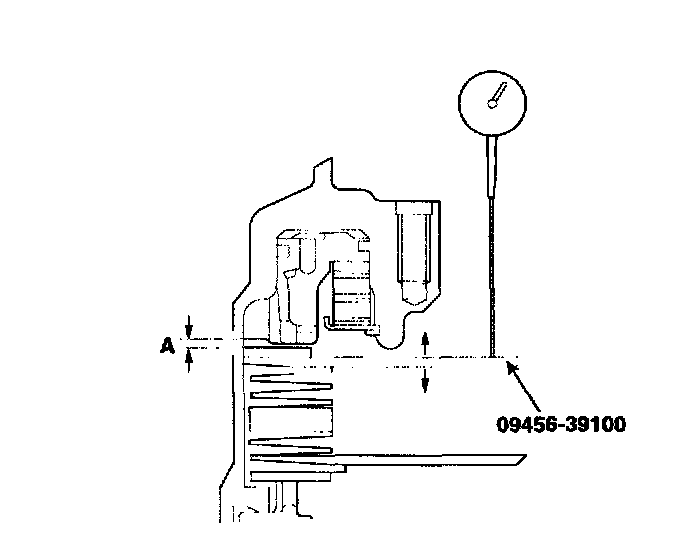

Reference Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool -1.81] to [A (moving amount) + thickness of the special tool -1.35].
