Wheel Stud / Lug Nut: Service and Repair

TIGHTENING WHEEL NUT





1. Tightening torque. Steel and aluminum alloy wheel.
Specified torque 90-110 Nm (900-1,100 kgf-cm, 65-80 ft. lbs.)

CAUTION: When using an impact gun, final tightening torque should be checked using a torque wrench.

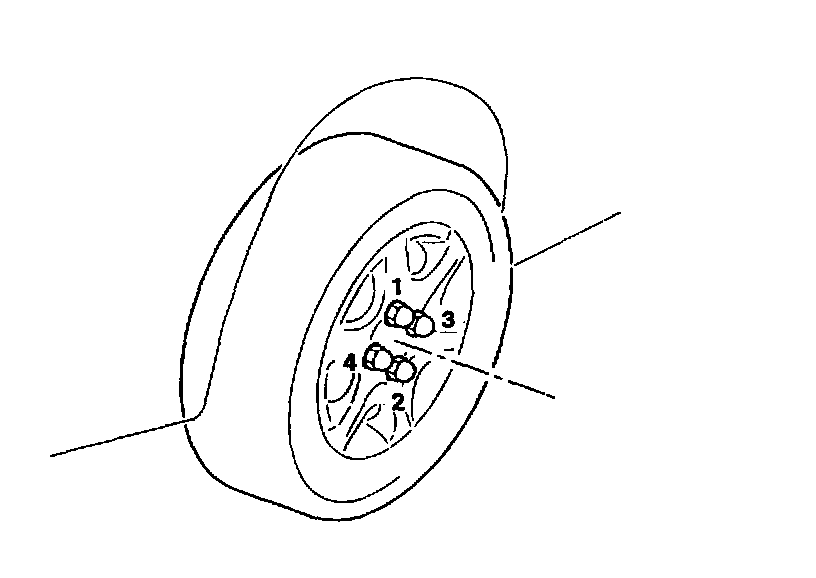

2. Tightening order. Check the torque again after tightening the wheel nuts diagonally.
