Detailed Test D: High Speed Shake or Shimmy
Detailed Test D: High Speed Shake or Shimmy

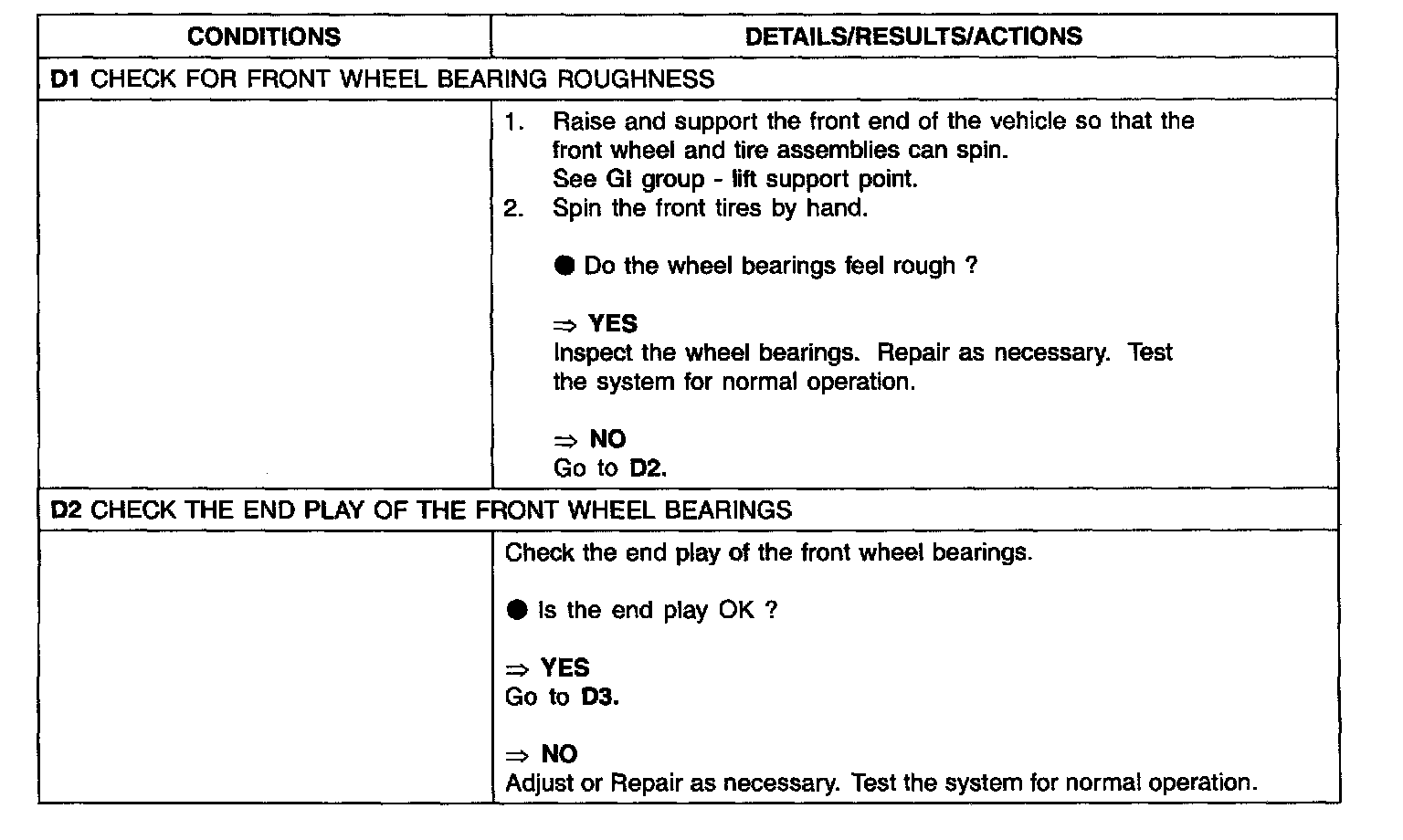

Tests D1 & D2:

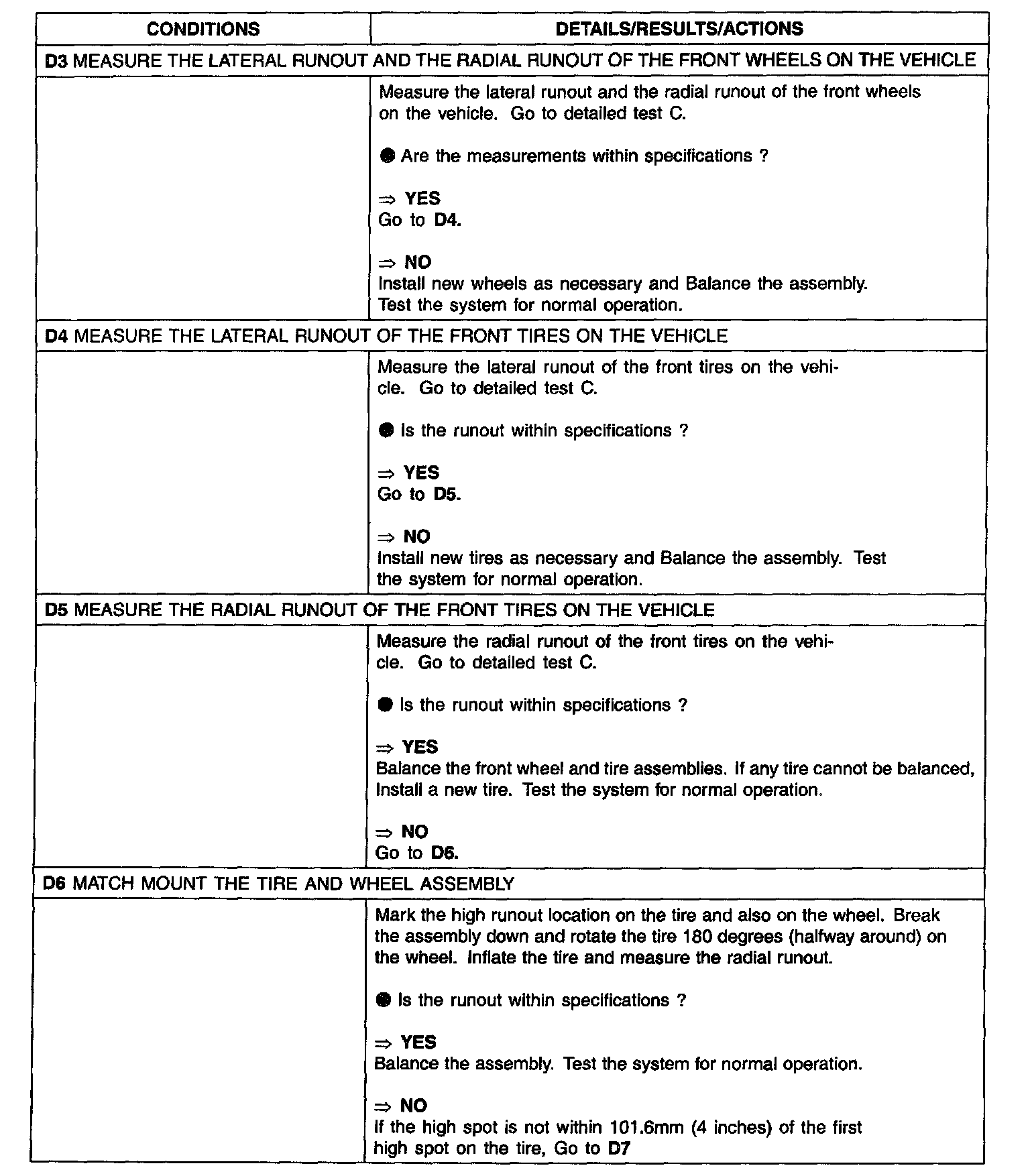

Tests D3-D6:

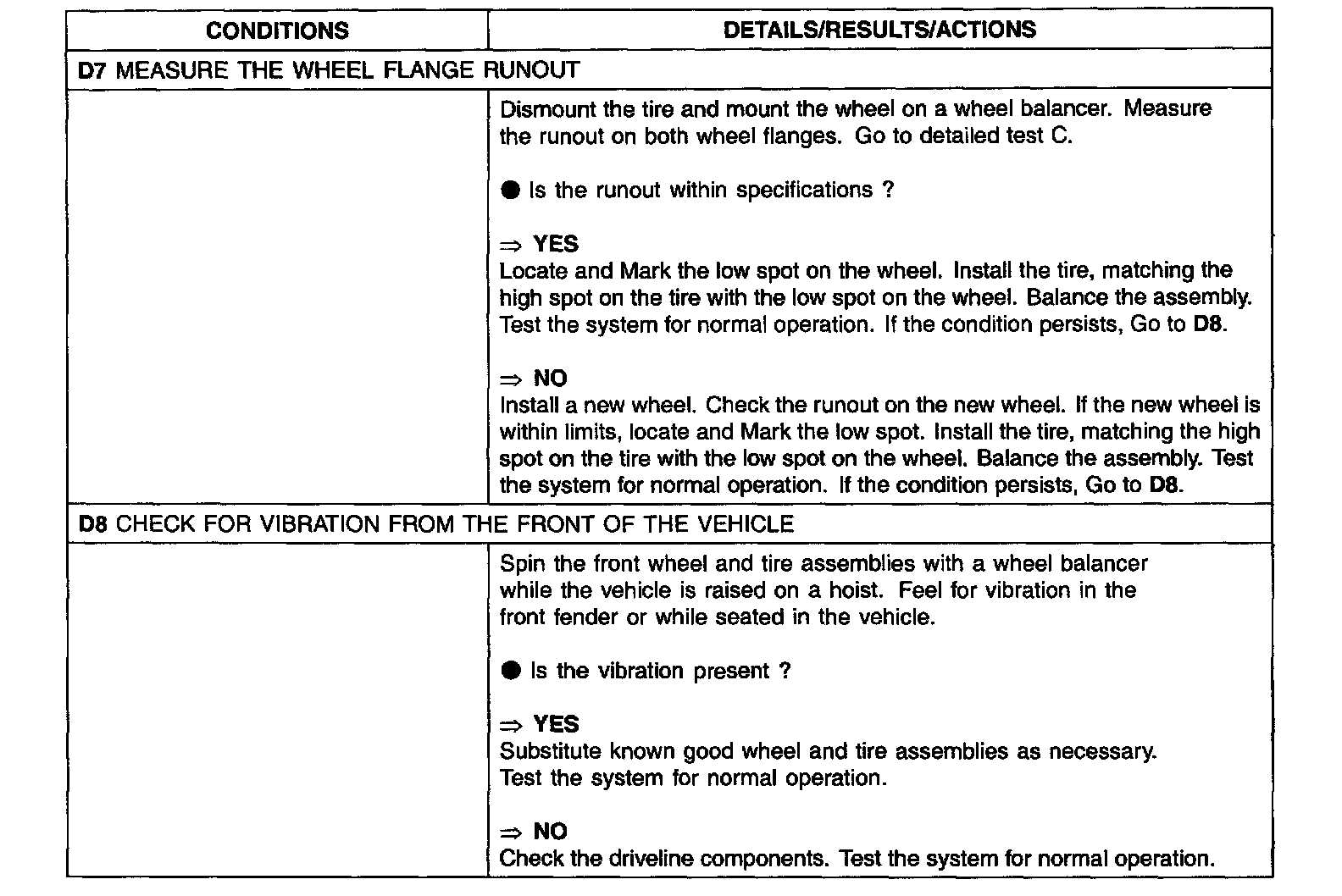

Tests D7 & D8:
DETAILED TEST D: HIGH SPEED SHAKE OR SHIMMY
