Detailed Test B: Rear Suspension Noise

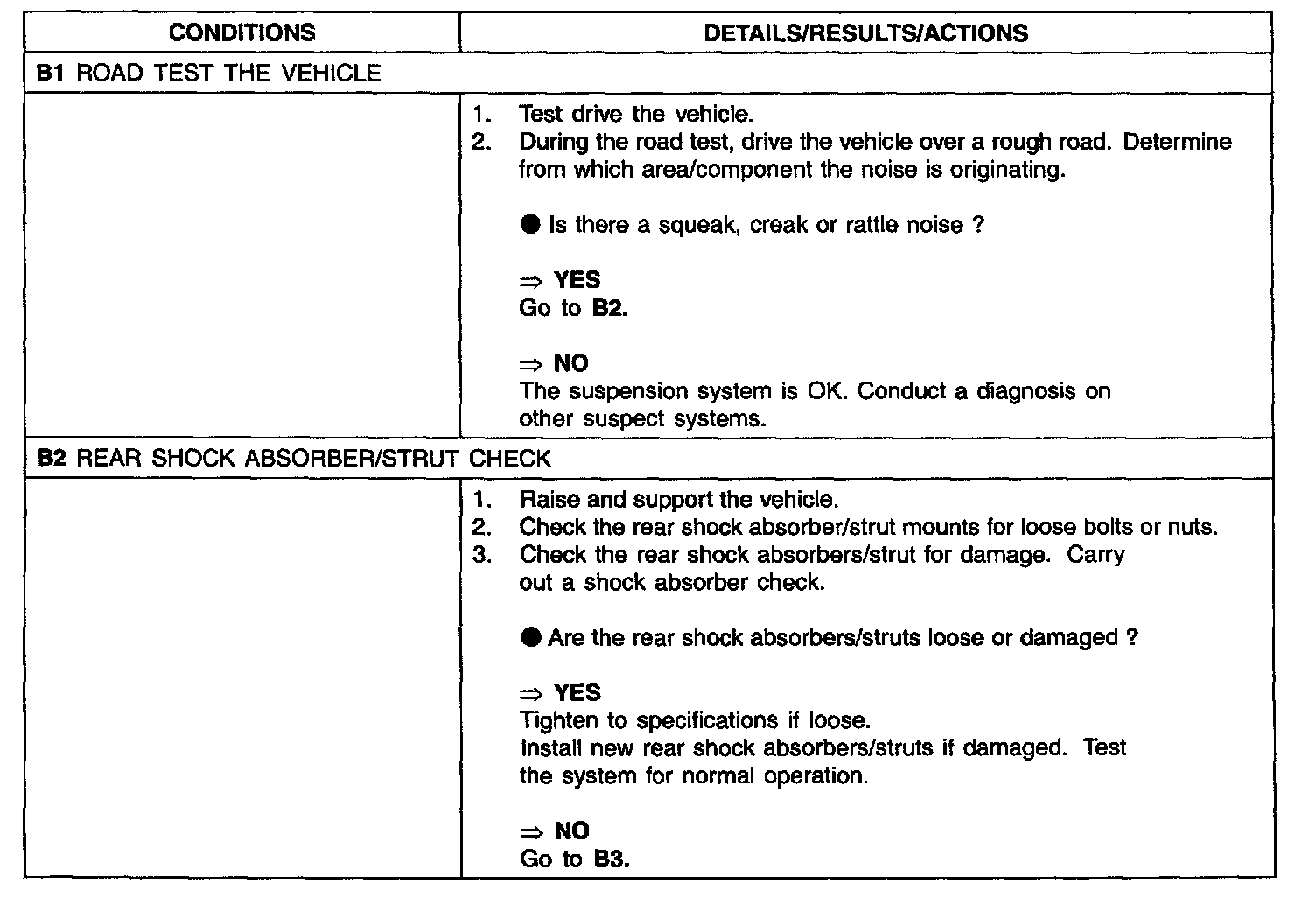

Test B1 & B2:

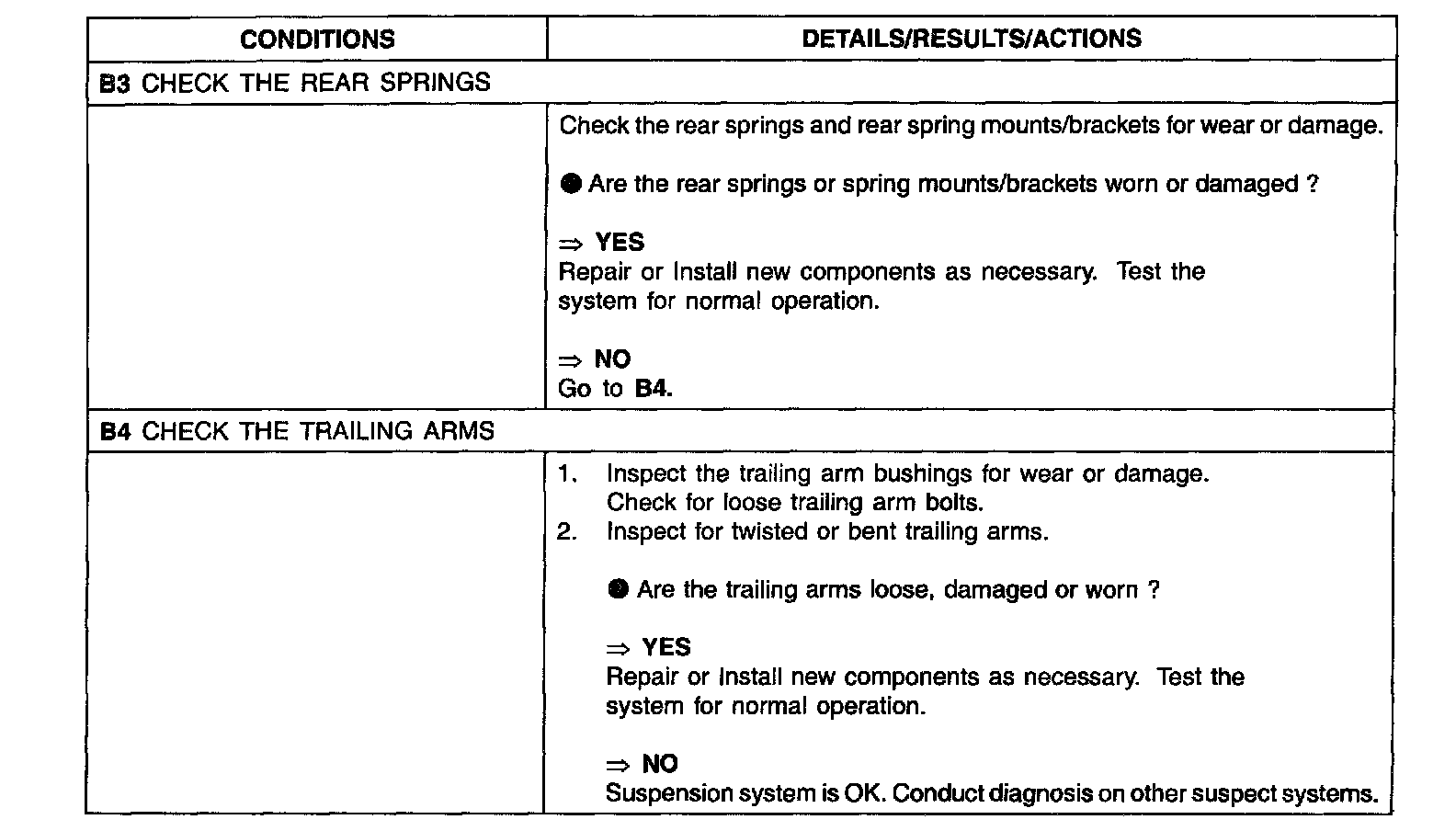

Tests B3 & B4:





DETAILED TEST B: REAR SUSPENSION NOISE
