Front

FRONT SUSPENSION SYSTEM
DESCRIPTION

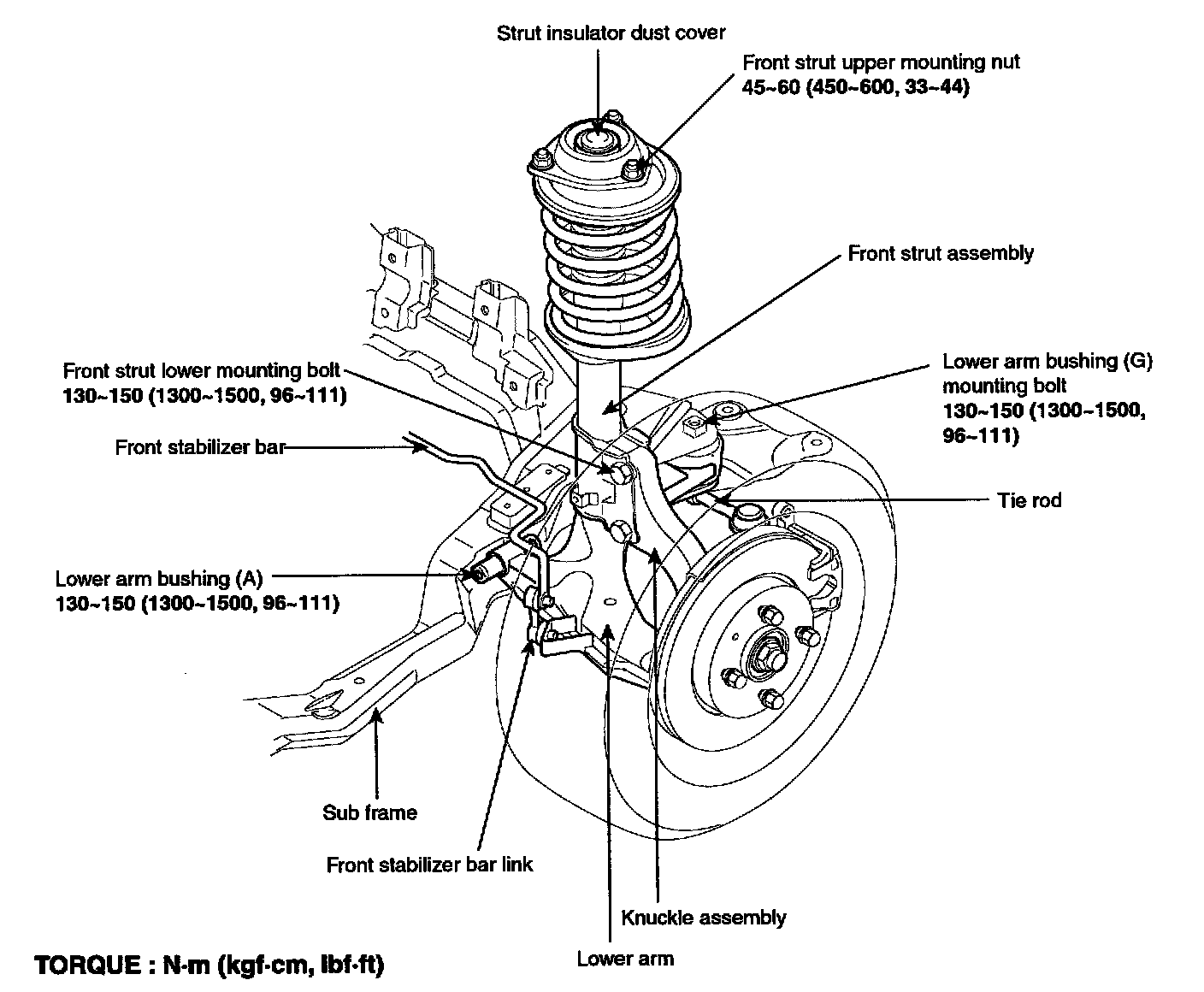

The front suspension system consists of the following components.

^ Front strut assemblies
^ Front lower arm assemblies
^ Front stabilizer bar and links

The front strut and spring assemblies can be disassembled to install any of the new individual components. New LH or RH front strut and spring assemblies can be installed independently. The front suspension system can also be disassembled in order to install new.

^ Front lower arms
^ Front lower arm mounting bolt bushings

New front stabilizer bar components can be installed individually.
