Checking Steering Wheel Free Play

CHECKING STEERING WHEEL FREE PLAY
1. Start the engine with the steering wheel in the straight ahead position, apply a force of 5 N (1.1 lb) to the steering wheel in the peripheral direction.

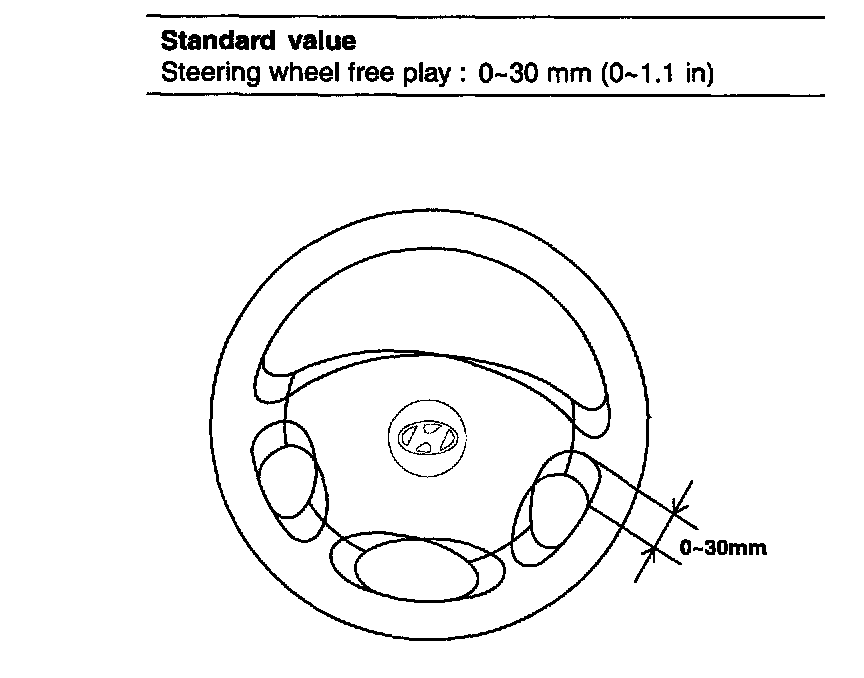

2. Measure the play at the circumference of the steering wheel.
3. If the play exceeds the standard value, inspect the connection between the steering shaft and tie rod ends.
