Home >> Hyundai >> 2005 >> Elantra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Wheels and Tires >> Wheel Stud / Lug Nut

Wheel Stud / Lug Nut

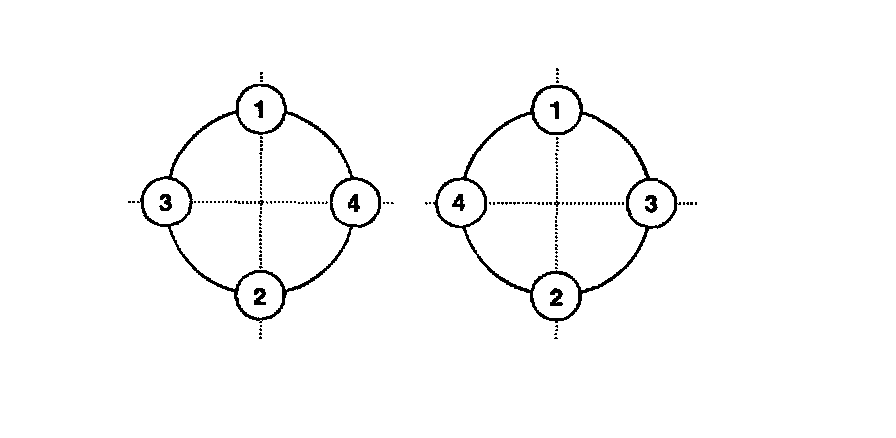

Tightening order. Check the torque again after tightening the wheel nuts diagonally

Wheel Nut 90 - 110 Nm (900 - 1100 kgf-cm, 67 - 82 ft. lbs.)
