Windshield Wiper / Washer Switch
Windshield Wiper / Washer Switch
INSPECTION

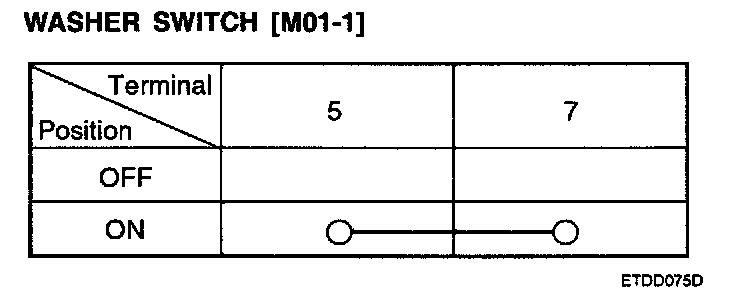

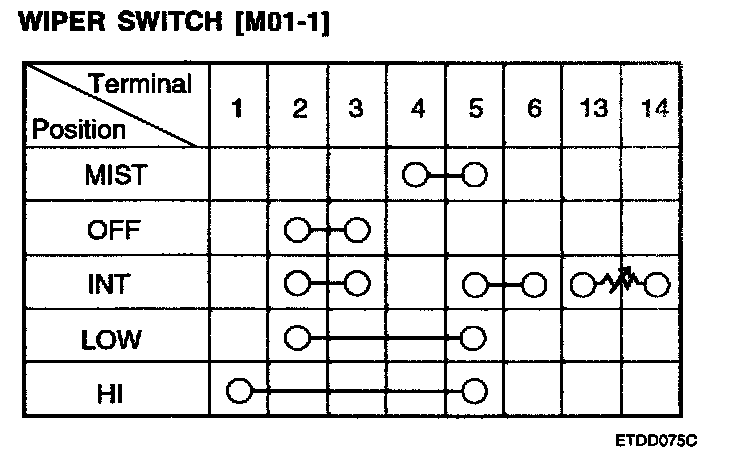

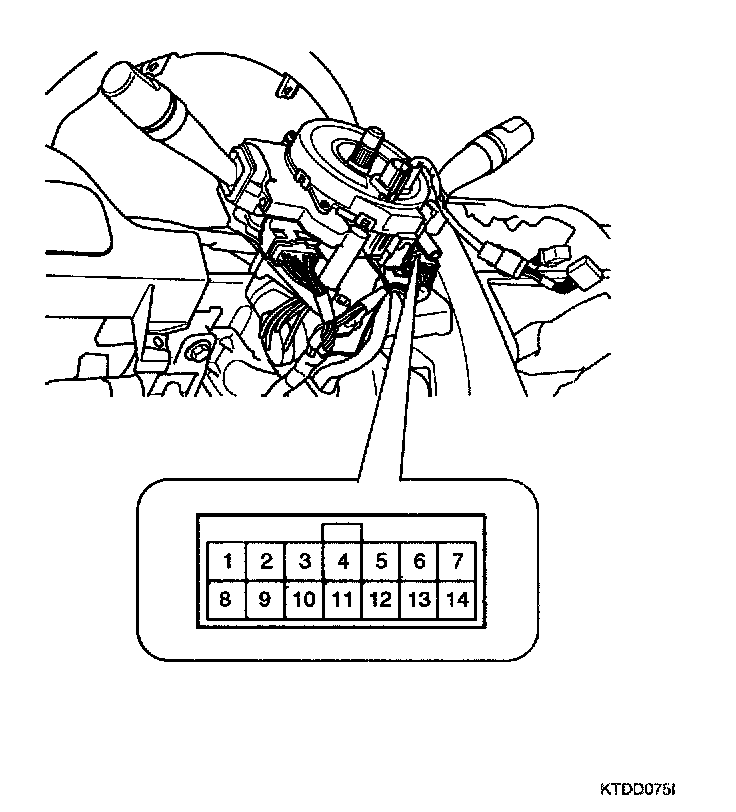

Check for continuity between the terminals while operating the wiper and washer switch.
