Tailgate Switch Inspection (5 Doors)

TAILGATE SWITCH INSPECTION (5 DOORS)

1. Remove the tailgate trim panel.

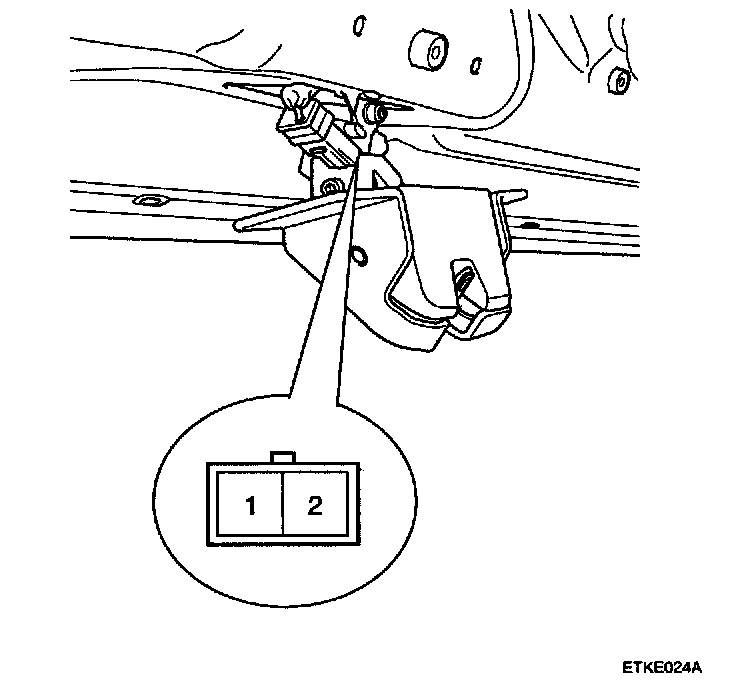

2. Remove the tailgate latch after removing 3 bolts and disconnect the 2P connector from the tailgate switch.

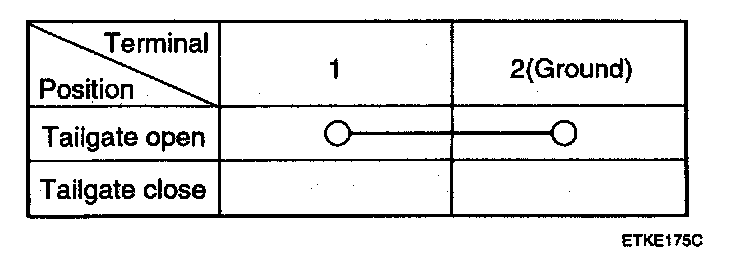

3. Check for continuity between the terminals according to the table.
