Wiring Precautions

WIRING PRECAUTIONS

SRS wiring can be identified by special yellow outer covering (except the SRS circuits under the front seats).
Observe the instructions described.

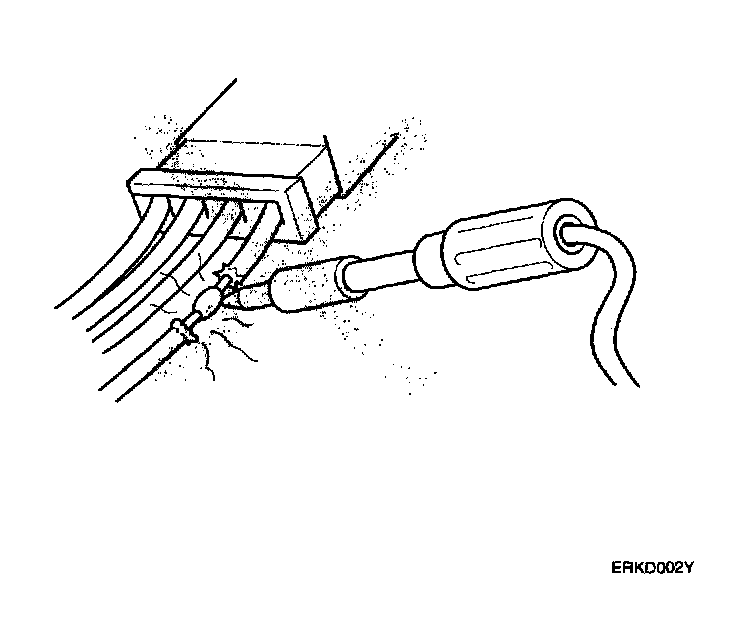

- Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage in SRS wiring, replace the harness.

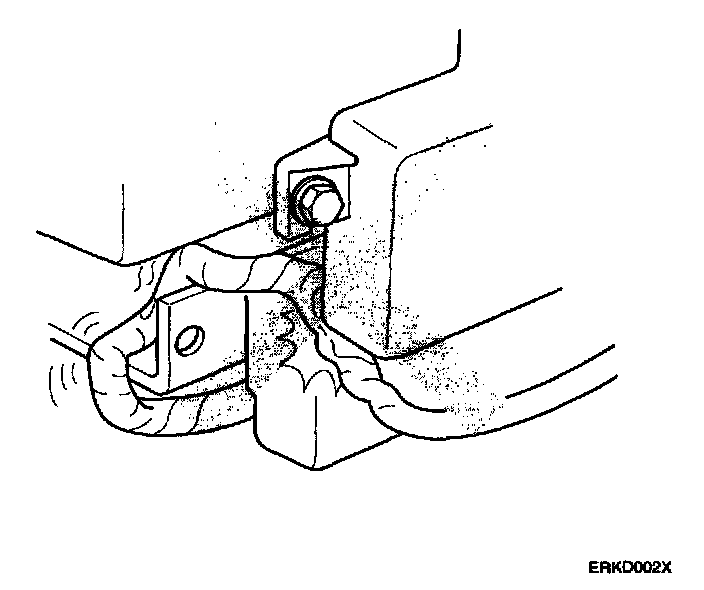

- Be sure to install the harness wires so that they are not pinched, or interfere with other parts.
- Make sure all SRS ground locations are clean, and grounds are securely fastened for optimum metal to metal contact. Poor grounding can cause intermittent problems that are difficult to diagnose.
