Fresh and Recirculation Actuator

REPLACEMENT

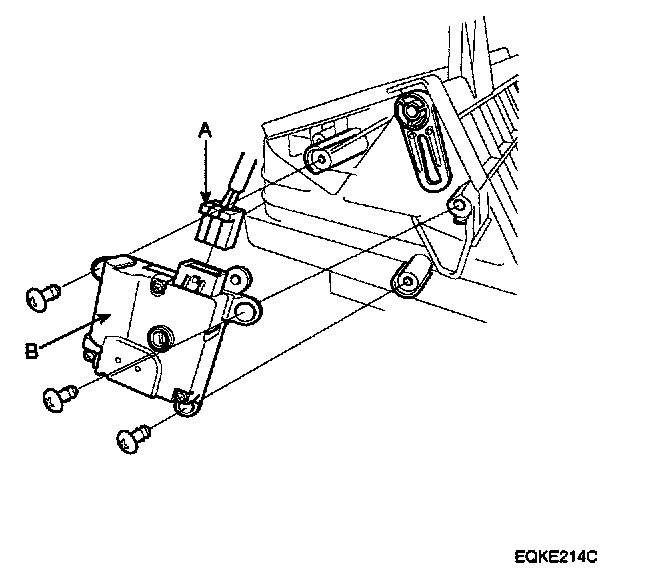

1. Disconnect the 7P connector (A) from the inlet actuator (B). Remove the self-tapping screws and the inlet actuator from the blower unit.




2. Install in the reverse order of removal. After installation make sure the inlet actuator runs smoothly.
