Automatic Transaxle - Diagnostic Trouble Codes List

Group:
TRANSAXLE

Number:
05-40-008-1

Date:
DECEMBER, 2005

Model:
1999-06 SONATA, 2001-05 ELANTRA, SANTA FE, 2003-05 TIBURON, 2005 TUCSON & 2006 AZERA

Subject:
AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE CODES LIST

This TSB supersedes TSB 05-40-008 to provide 2006 Azera information.

DESCRIPTION:





Use the Hi-Scan to check for DTCs in both "Engine" and "Automatic Transaxle" menus. When canceling DTCs, it is necessary to cancel codes separately in both menus.

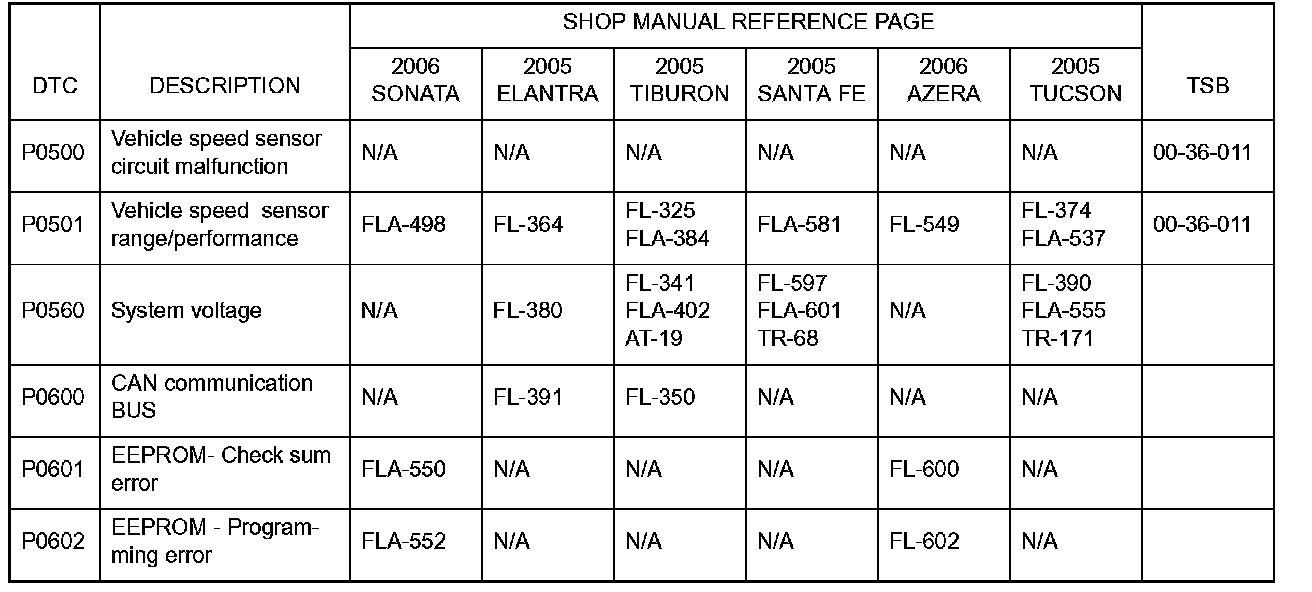

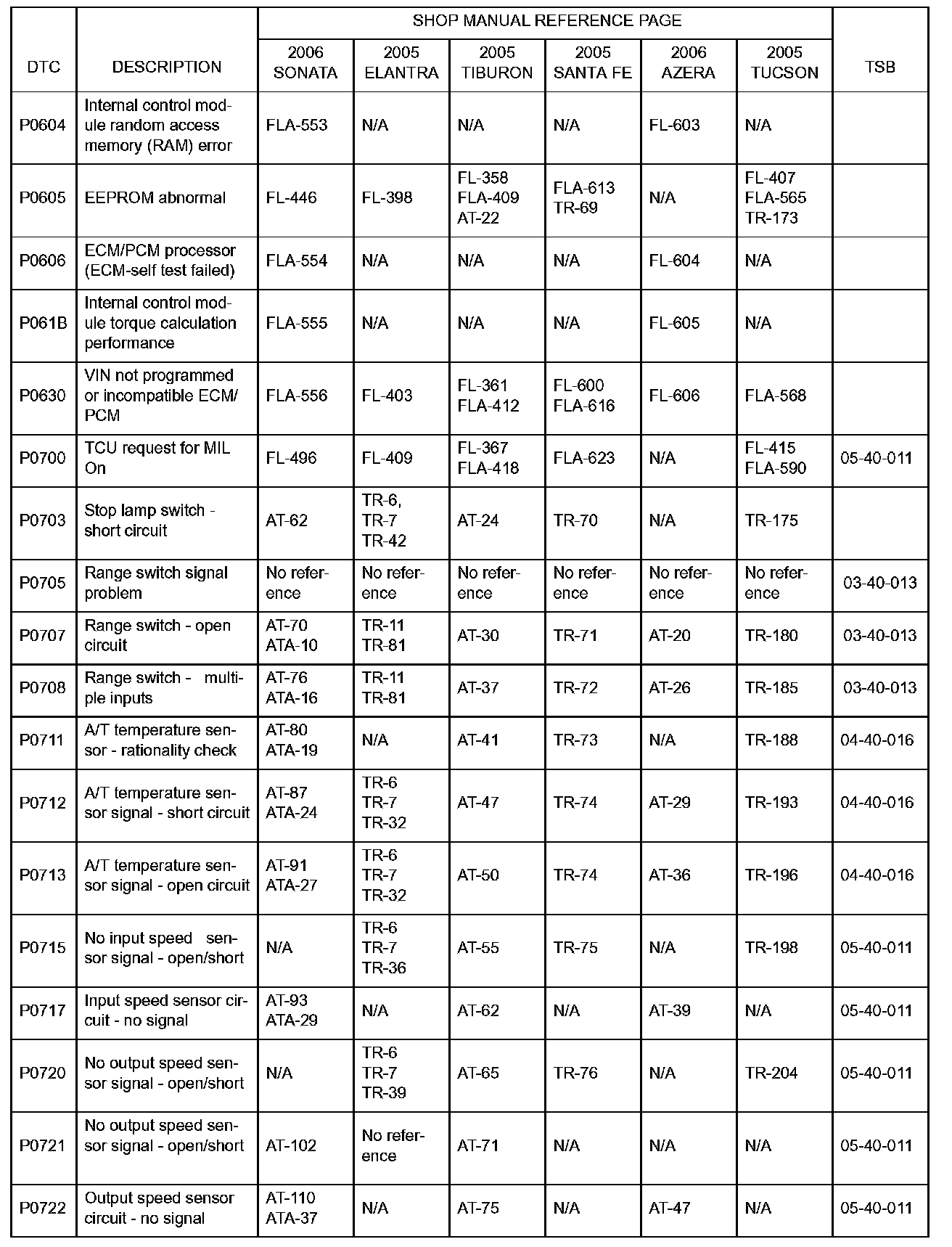

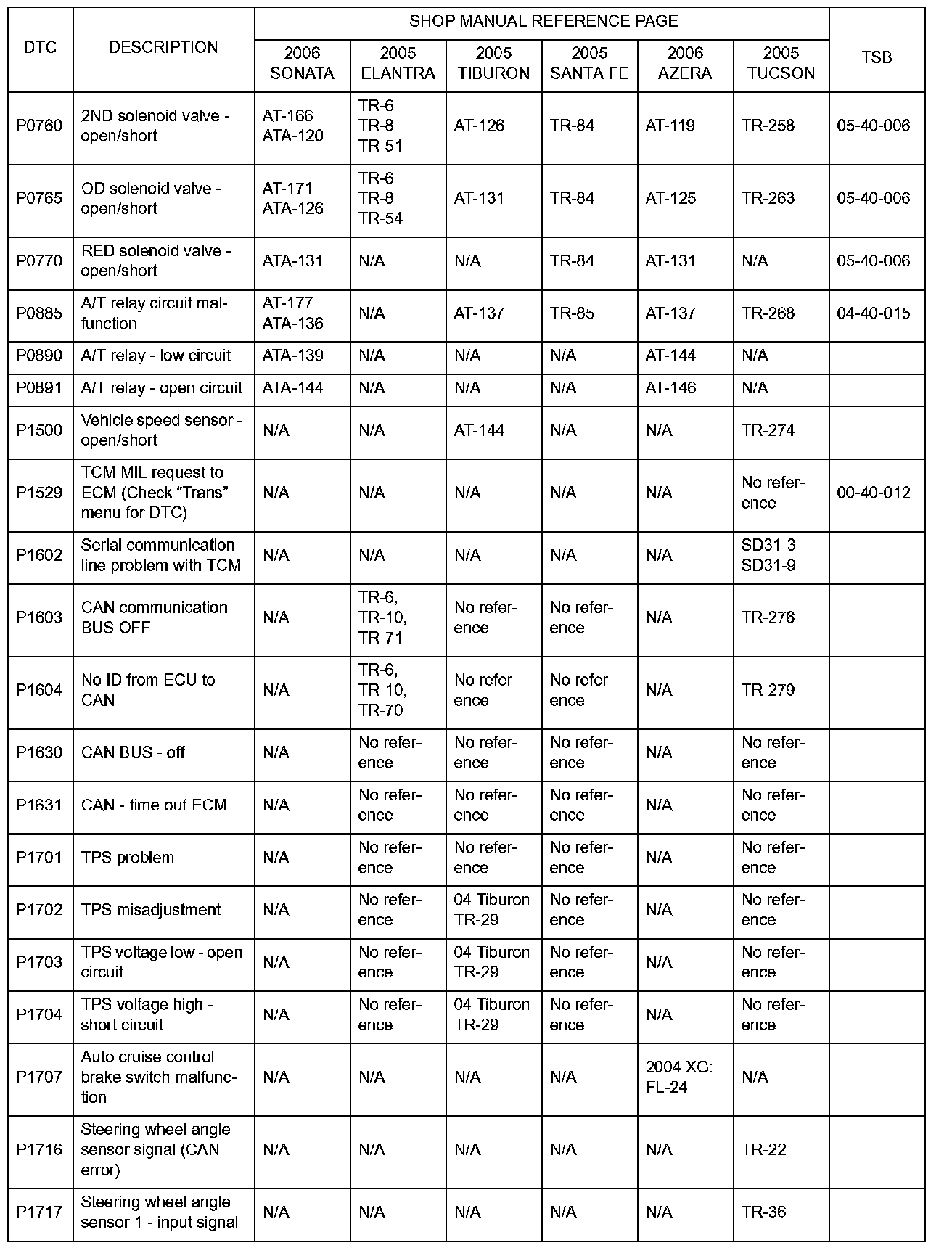

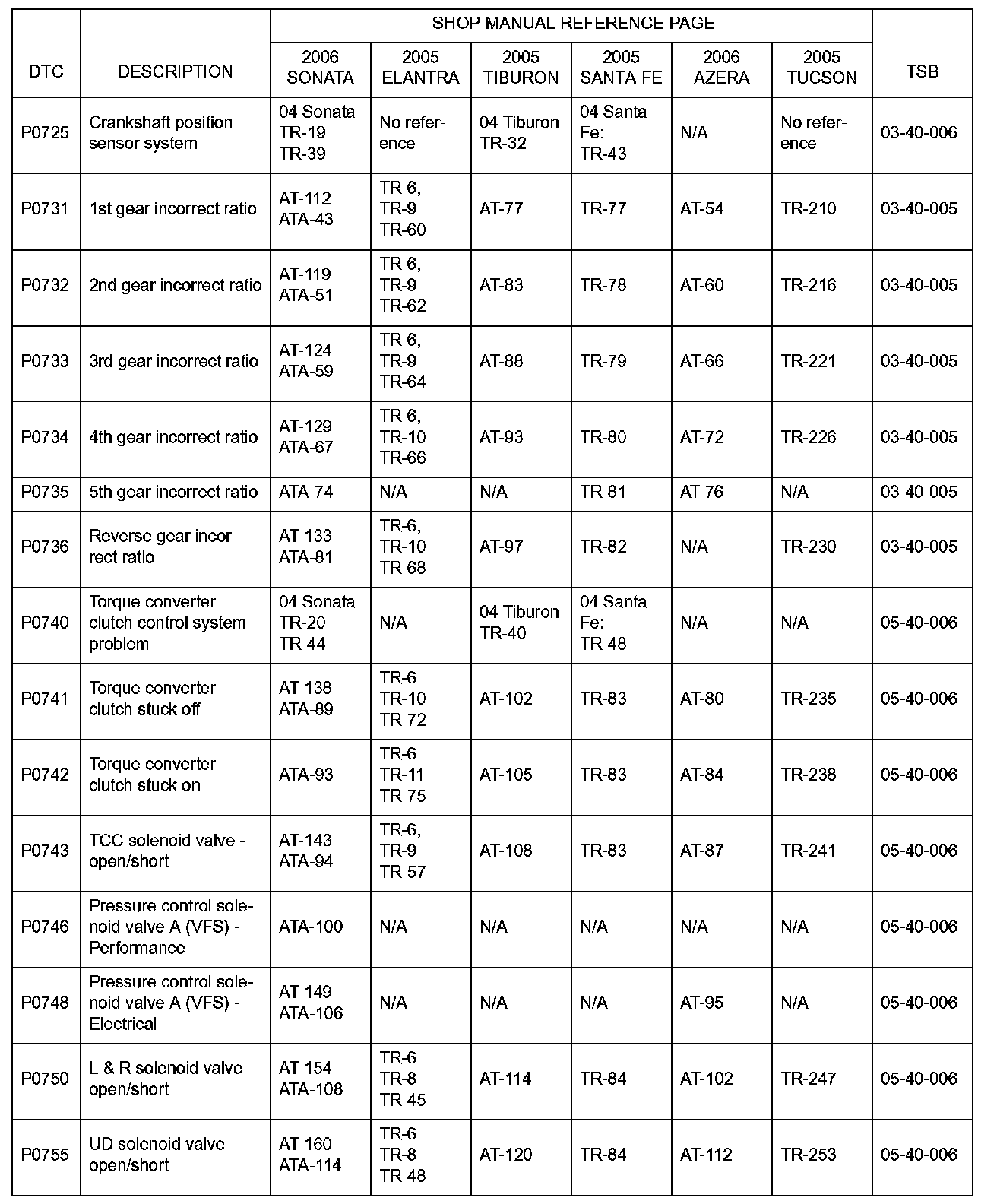

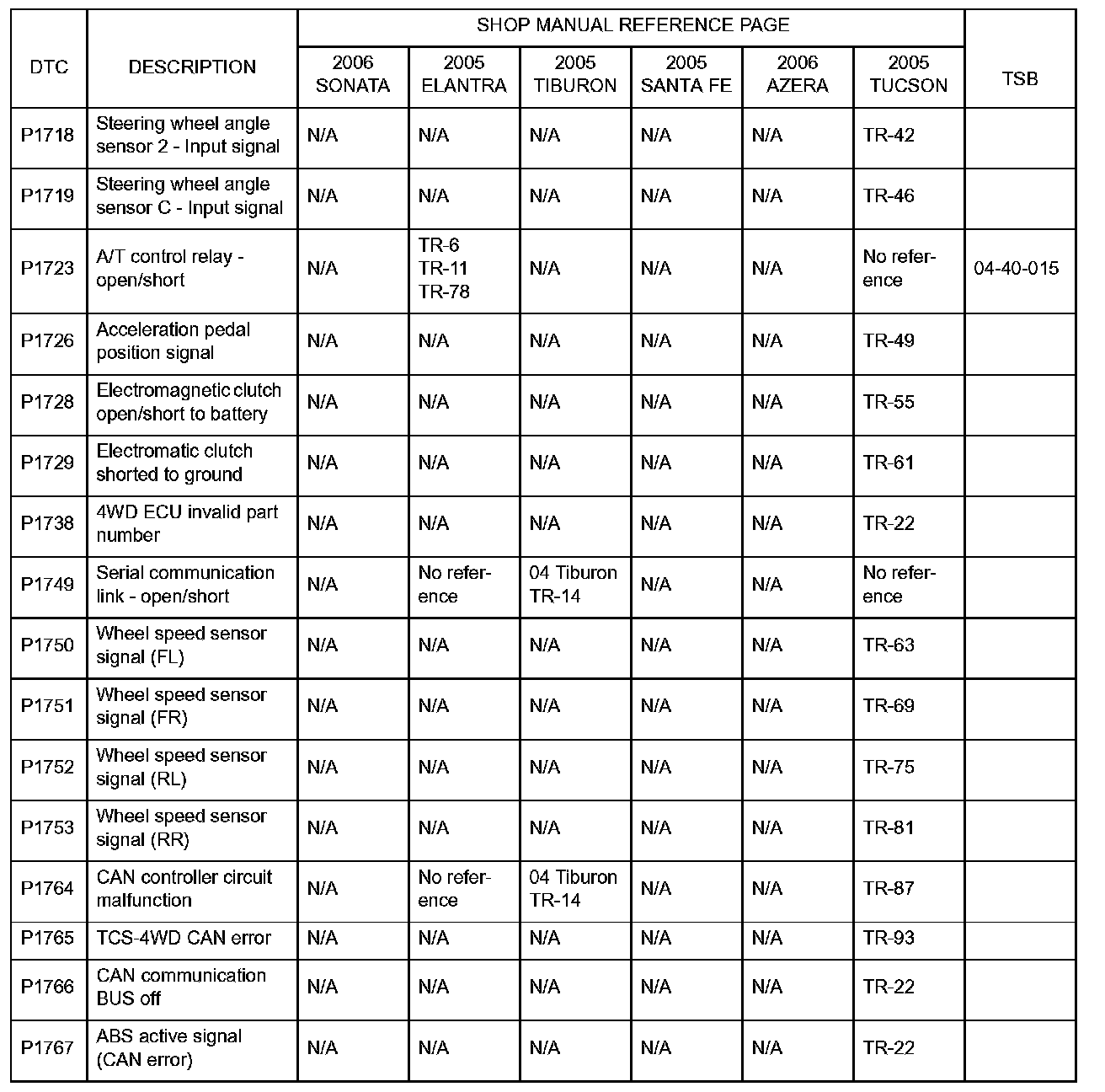

DTC information can be found in the shop manuals and TSBs shown.

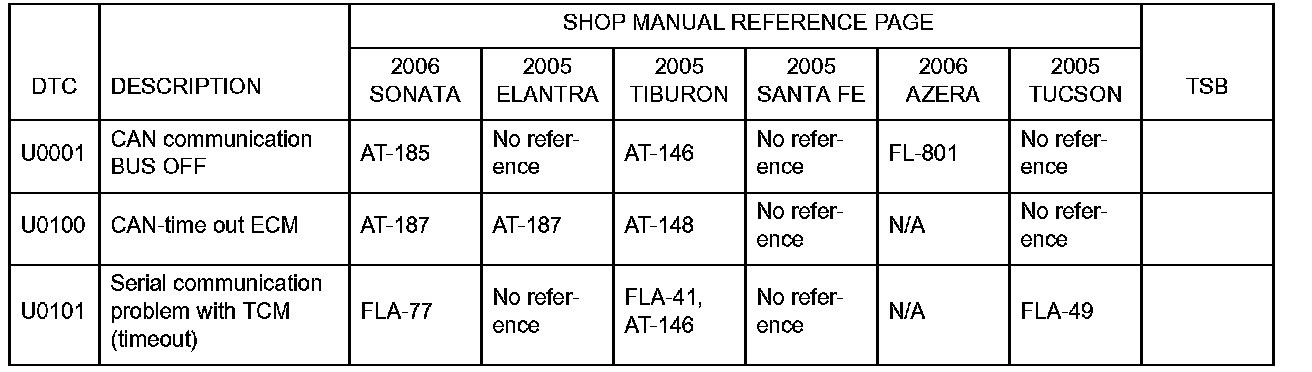

CAN COMMUNICATION DTC
