Fuel Pump Operating Check

FUEL PUMP OPERATING CHECK
1. Turn the ignition switch OFF.

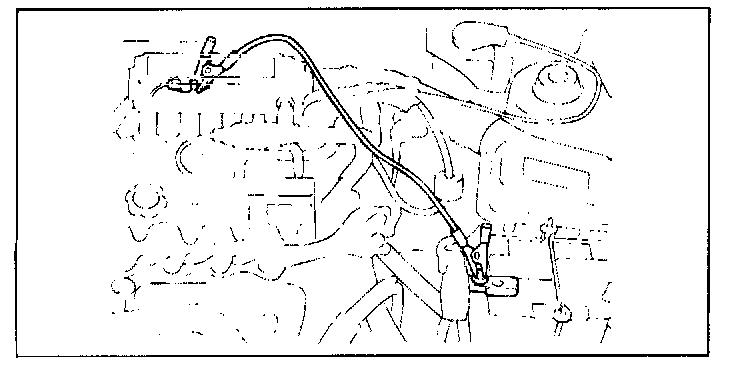

2. Apply battery voltage to the fuel pump drive connector to check that the pump operates.

NOTE: The fuel pump is an in-tank type and its operation is hard to hear without removing the fuel tank cap.

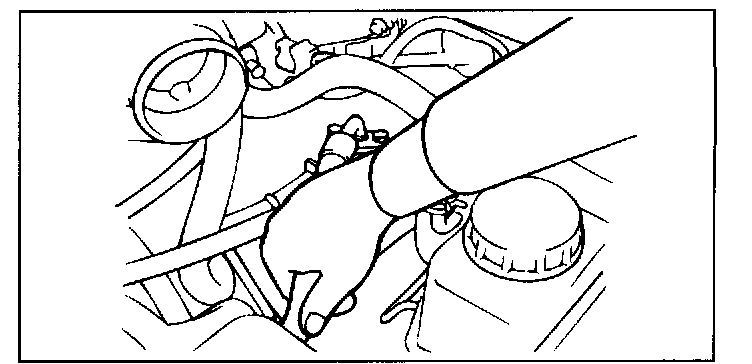

3. Pinch the hose to check that fuel pressure is felt.
