Customer Datastream

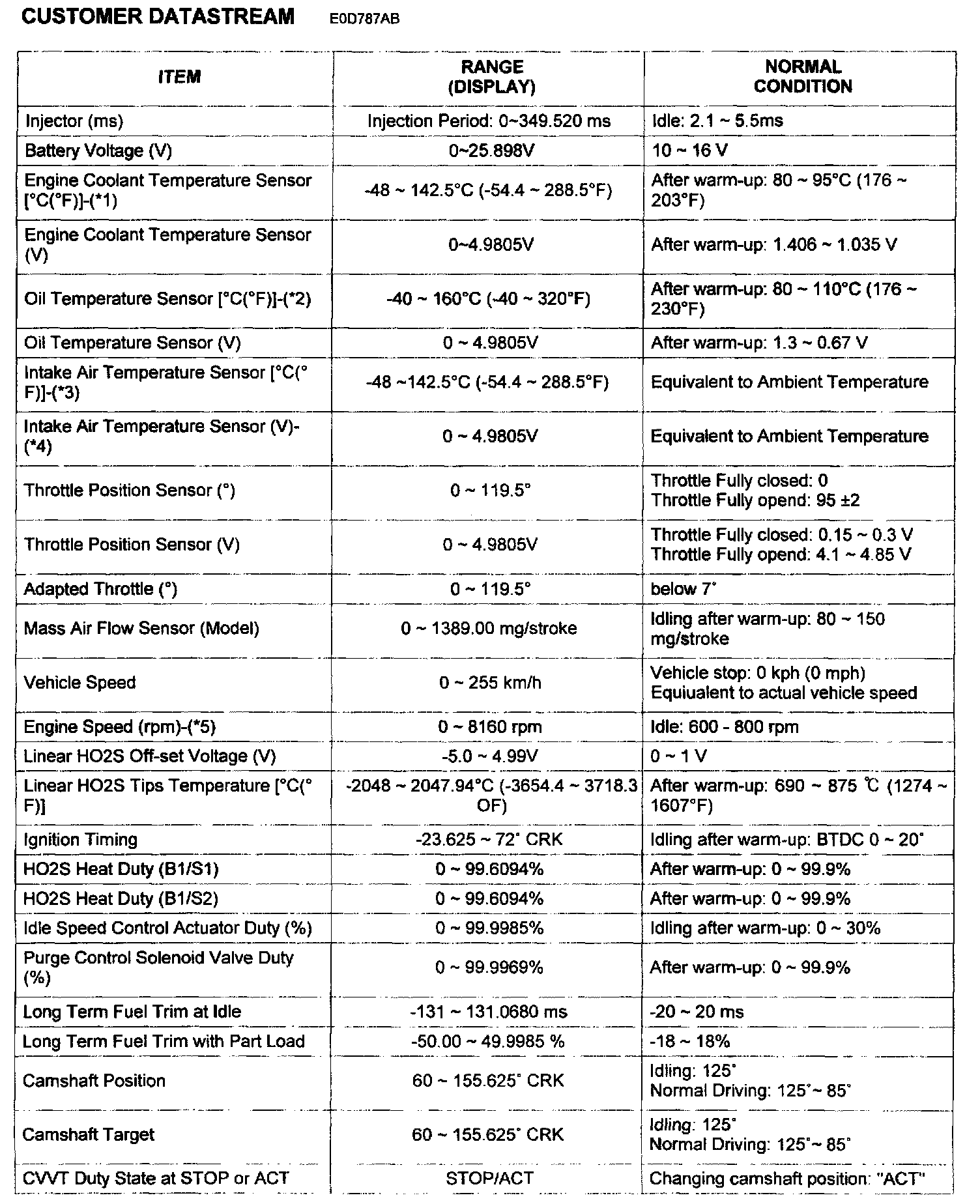

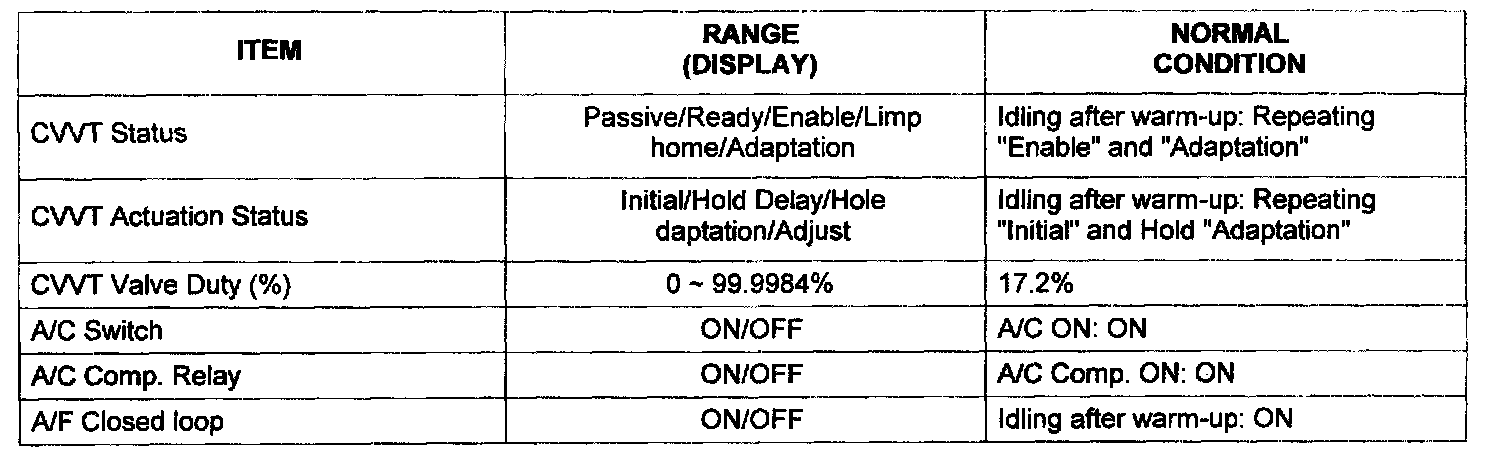

CUSTOMER DATASTREAM







- (*1) If the value is lower than -46 °C (114.8 °F) or higher than 138 °C (280.4 °F), sensor circuit is open or shorted.
- (*2) If the value is lower than -36 °C (-32.8 °F) or higher than 154 °C (309.2 °F), sensor circuit is open or shorted.
- (*3) If the value is lower than -46 °C (114.8 °F) or higher than 142 °C (287.6 °F), sensor circuit is open or shorted.
- (*4) If the value is lower than 0.14 V or higher than 4.86 V, sensor circuit is open or shorted.
- (*5) After warm-up N-range, A/CON OFF
