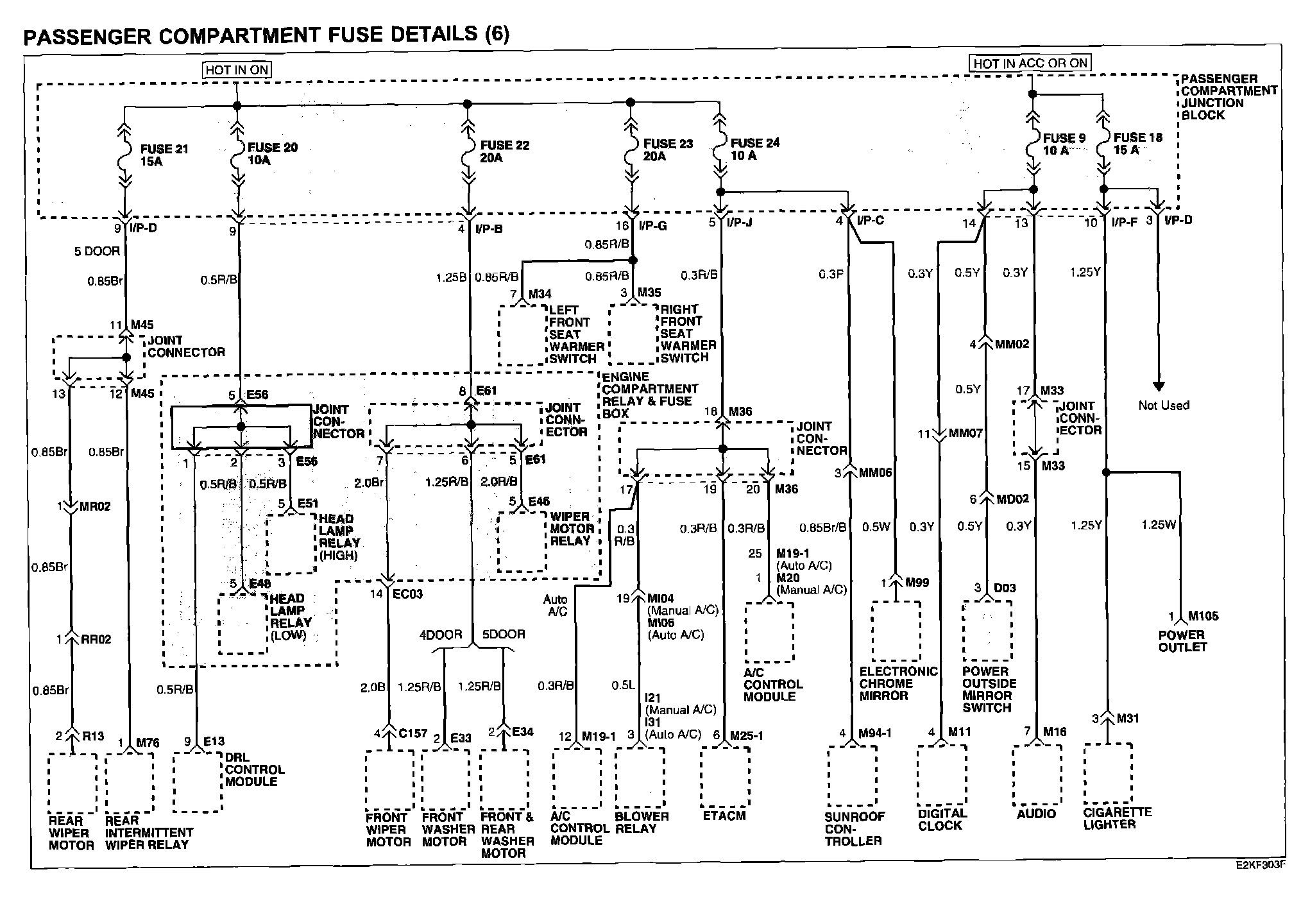

Passenger Compartment Fuse Details (6)

Passenger Compartment Fuse Details (6):






Previous Diagram Passenger Compartment Fuse Details (5)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
