Tire Wear

TIRE WEAR
1. Measure the tread depth of the tires.
Tread depth of tire [Limit]: 1.6 mm (0.06 inch)





2. If the remaining tread depth is less than the limit, replace the tire.

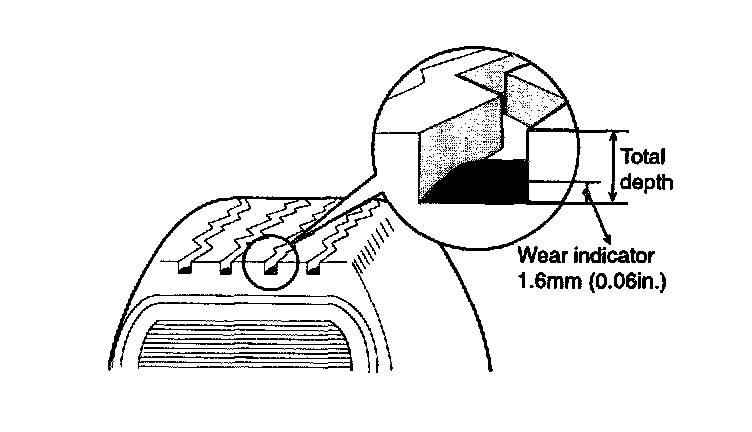

NOTE: When the tread depth of the tires is less than 1.6 mm (0.06 inch), the wear indicators will appear.
