Hazard Warning Switch: Testing and Inspection

HAZARD LAMP SWITCH
1. Disconnect the negative (-) battery terminal.

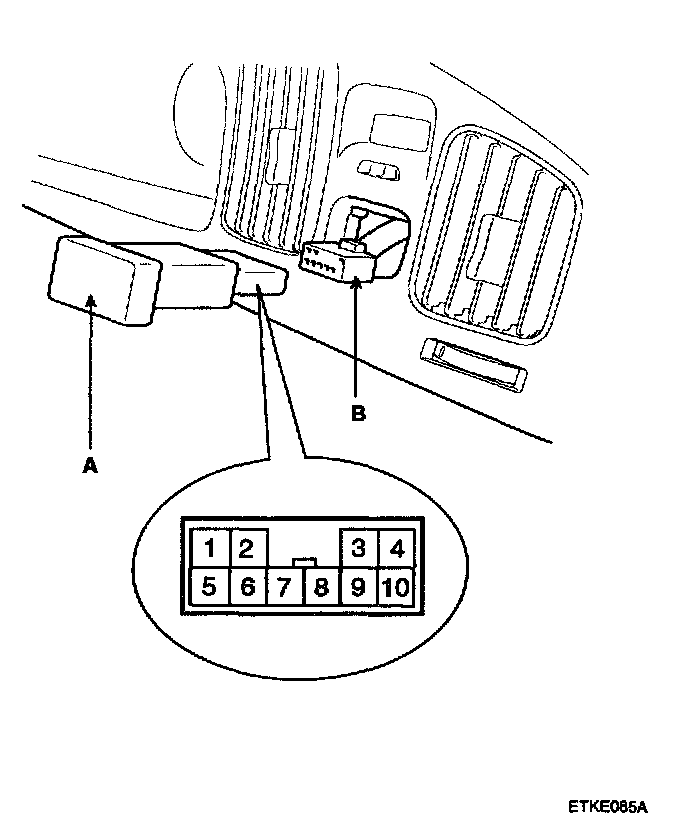

2. Remove the hazard lamp switch (A) from the instrument facia panel and disconnect the 10 P connector (B).

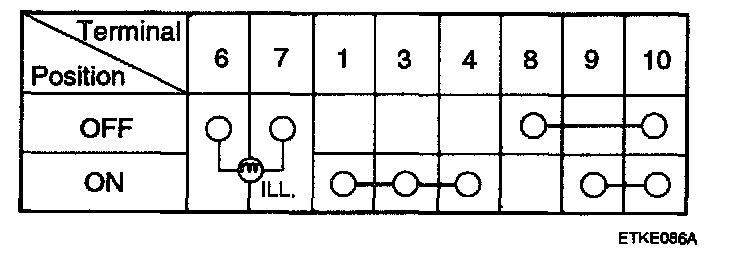

3. Operate the switch and check for continuity between terminals with an ohmmeter.
