Headlamp: Service and Repair

REMOVAL
1. Disconnect the negative(-) battery terminal.

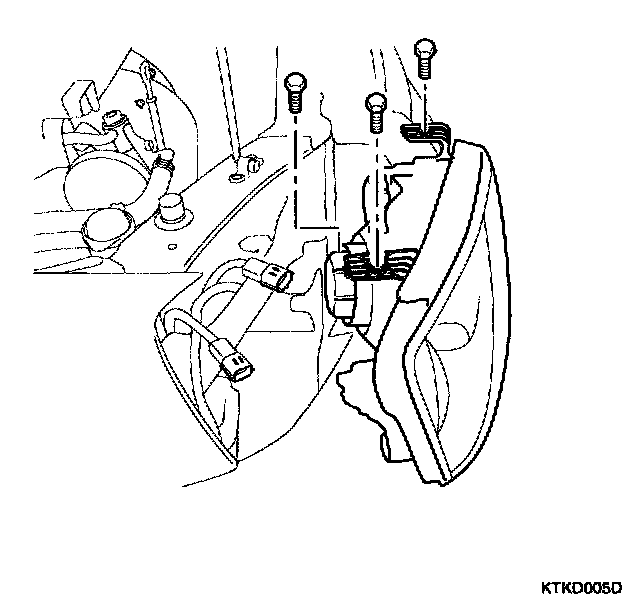

2. Remove the head lamp mounting bolts (3 EA), then disconnect the lamp connectors.

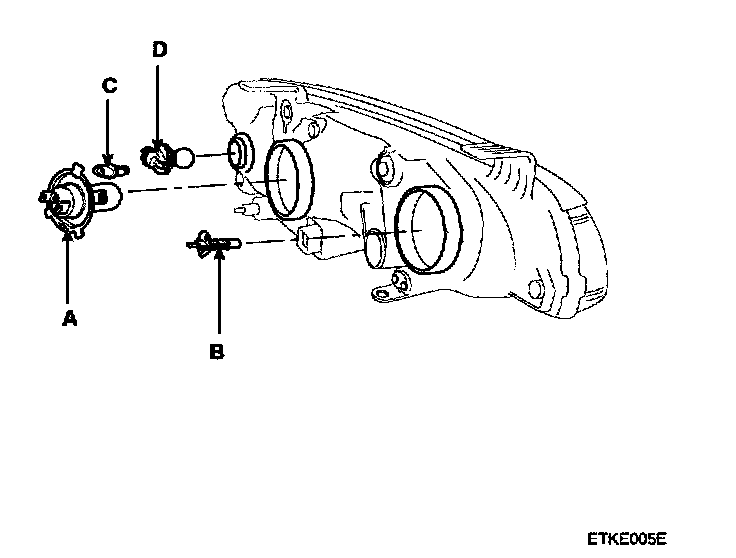

3. Replace the head lamp low beam bulb (A), high beam bulb (B), position bulb (C) and turn signal bulb (D).
4. Installation is the reverse of removal.
