Daytime Running Lamp: Testing and Inspection

OPERATION CHECK

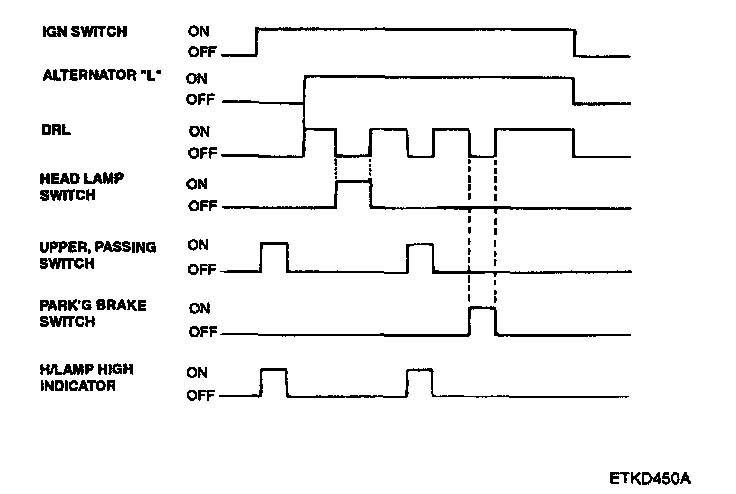

Check that the lights operate according to the following timing chart.

INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM

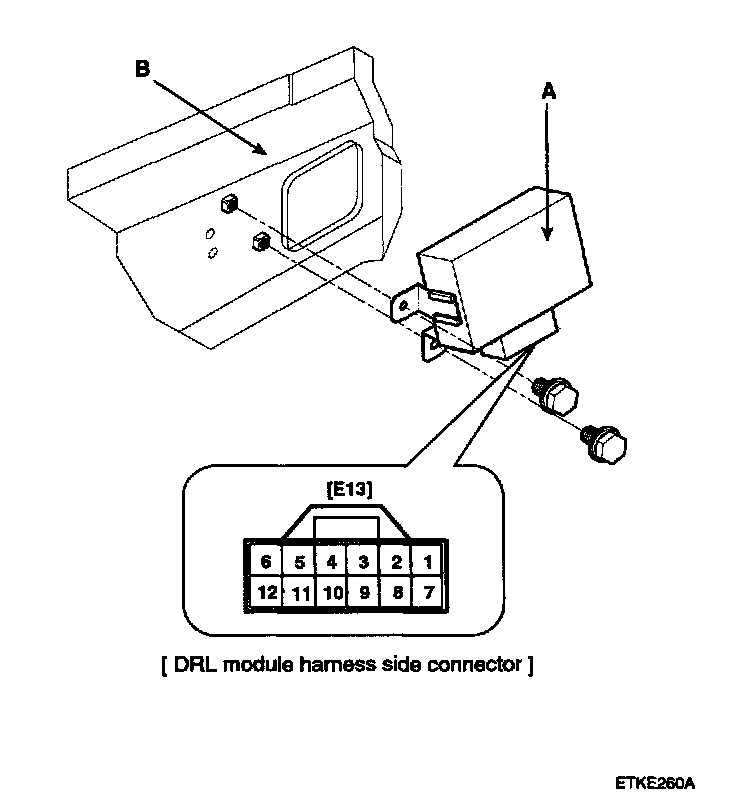

1. Disconnect the wire connector to DRL module (A) from the right side fender inner panel (B).
If circuit is not as specified, refer to schematic diagram and inspect short or circuits.

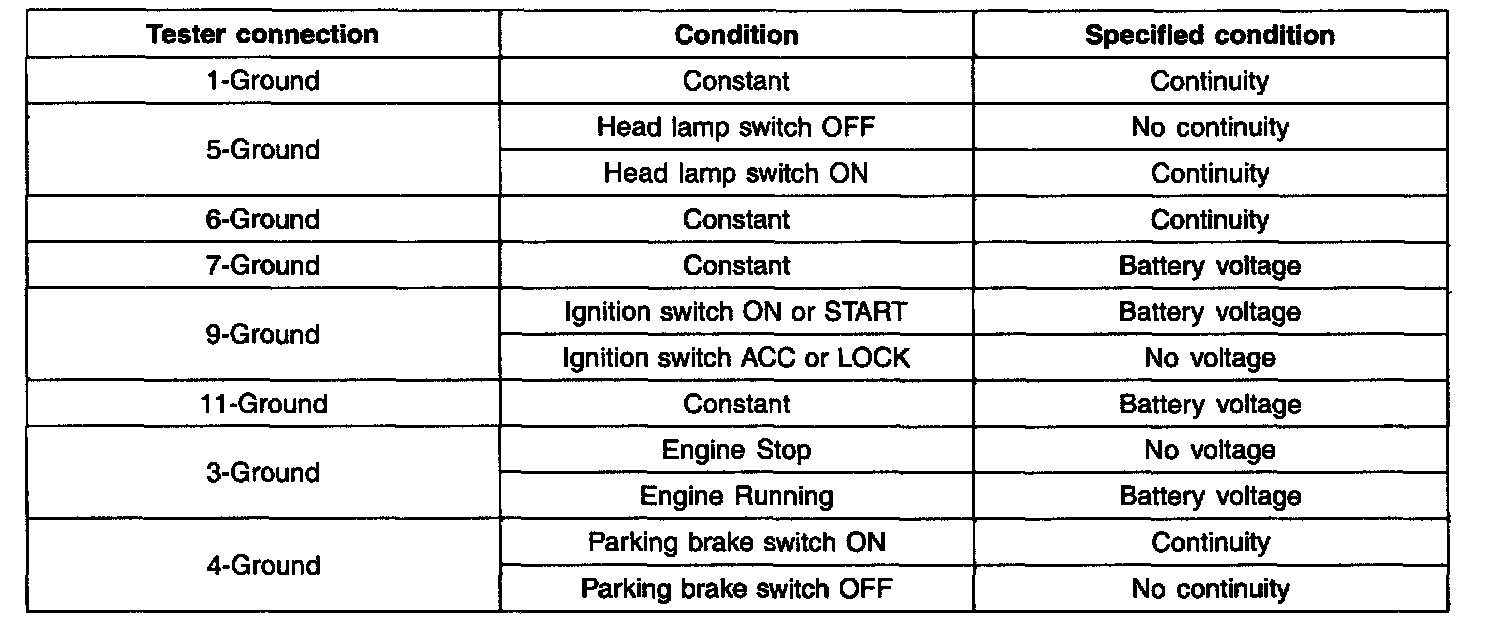

2. Inspect the connector on wire harness side as shown.
