Courtesy Lamp: Testing and Inspection

INSPECTION

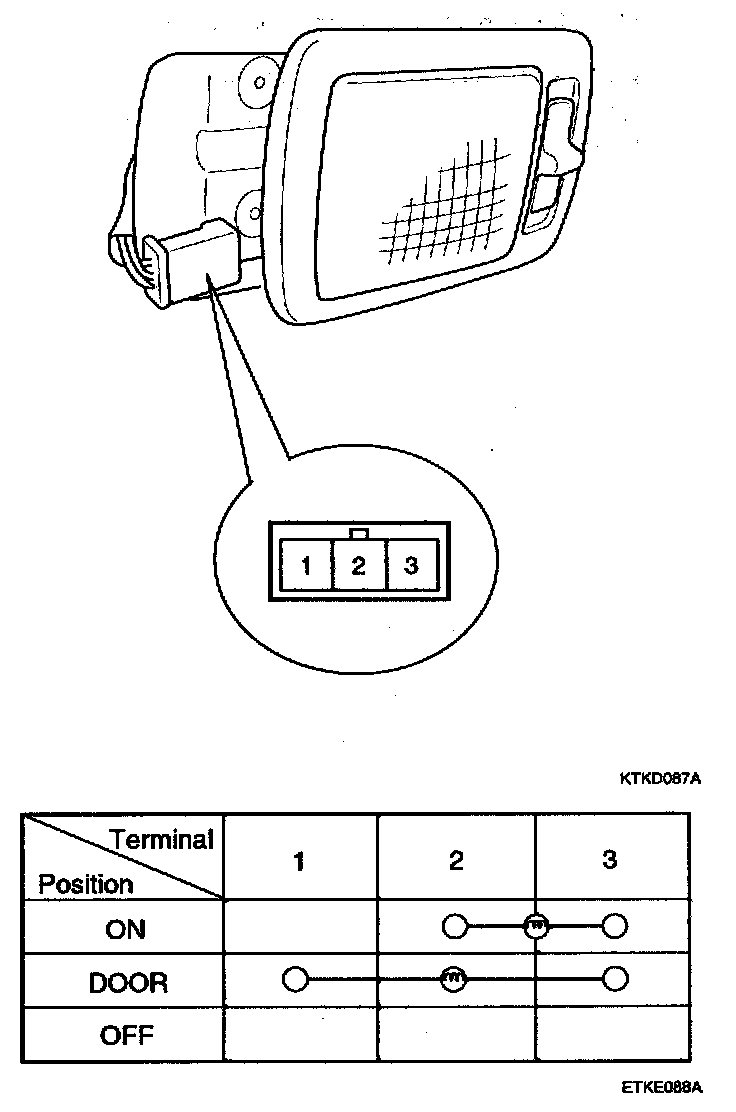

Remove the room lamp assembly then check for continuity between terminals.
