Room Lamp

ROOM LAMP

REMOVAL
1. Disconnect the negative(-) battery terminal.

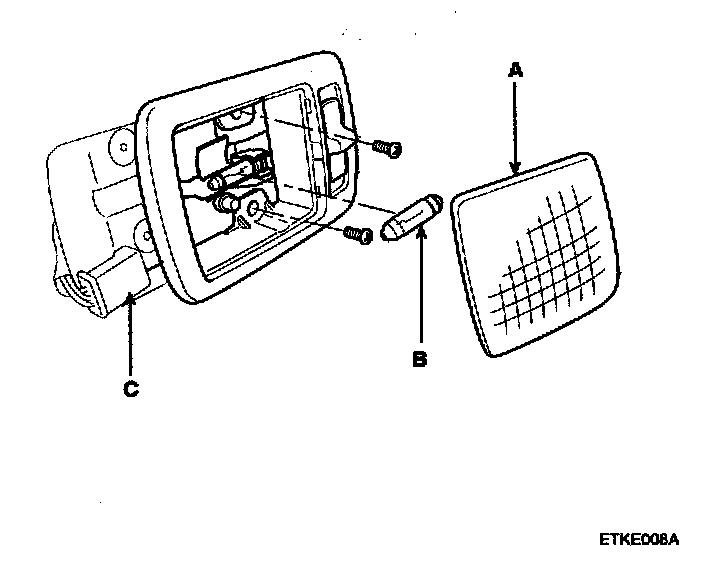

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver, then replace the bulb (B).




3. Remove the room lamp assembly after removing 2 screws and disconnecting the 3P connector (C).
4. Installation is the reverse of removal.
