Home >> Hyundai >> 2005 >> Elantra L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Console Lamp >> Testing and Inspection

Console Lamp: Testing and Inspection

INSPECTION

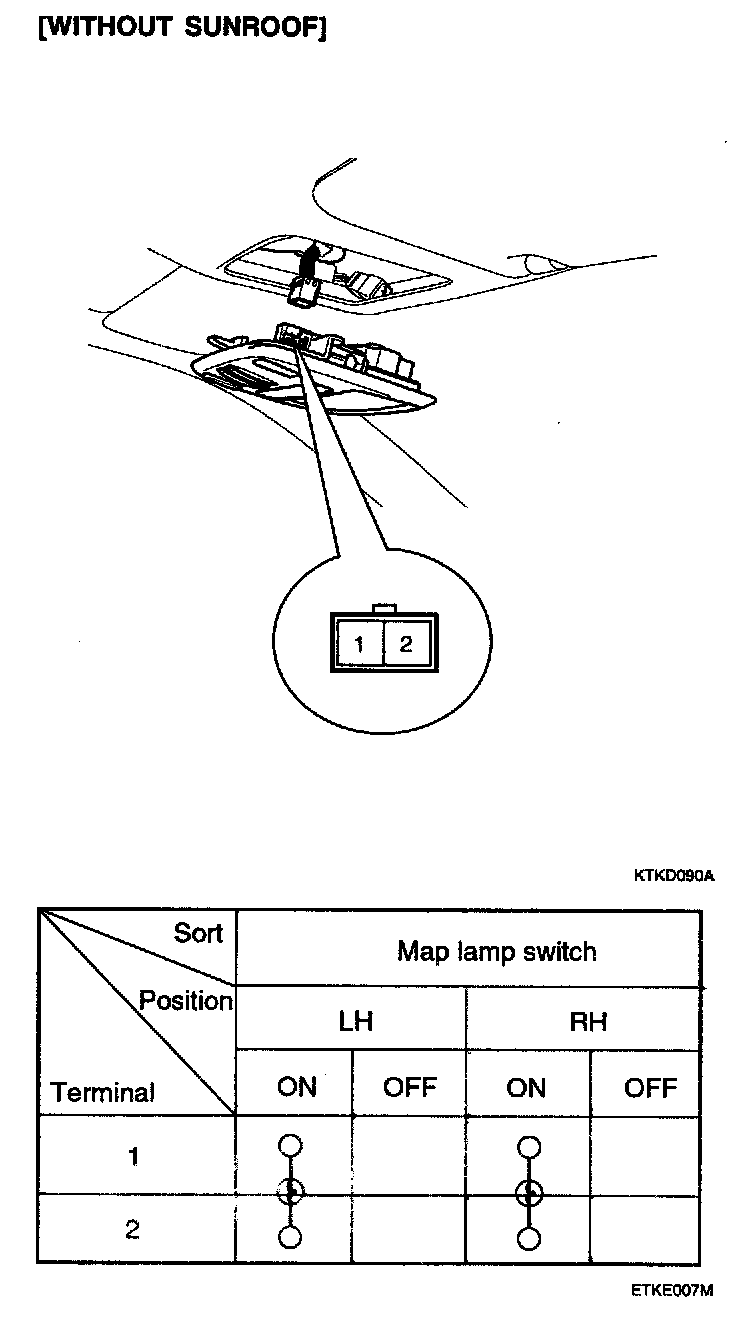

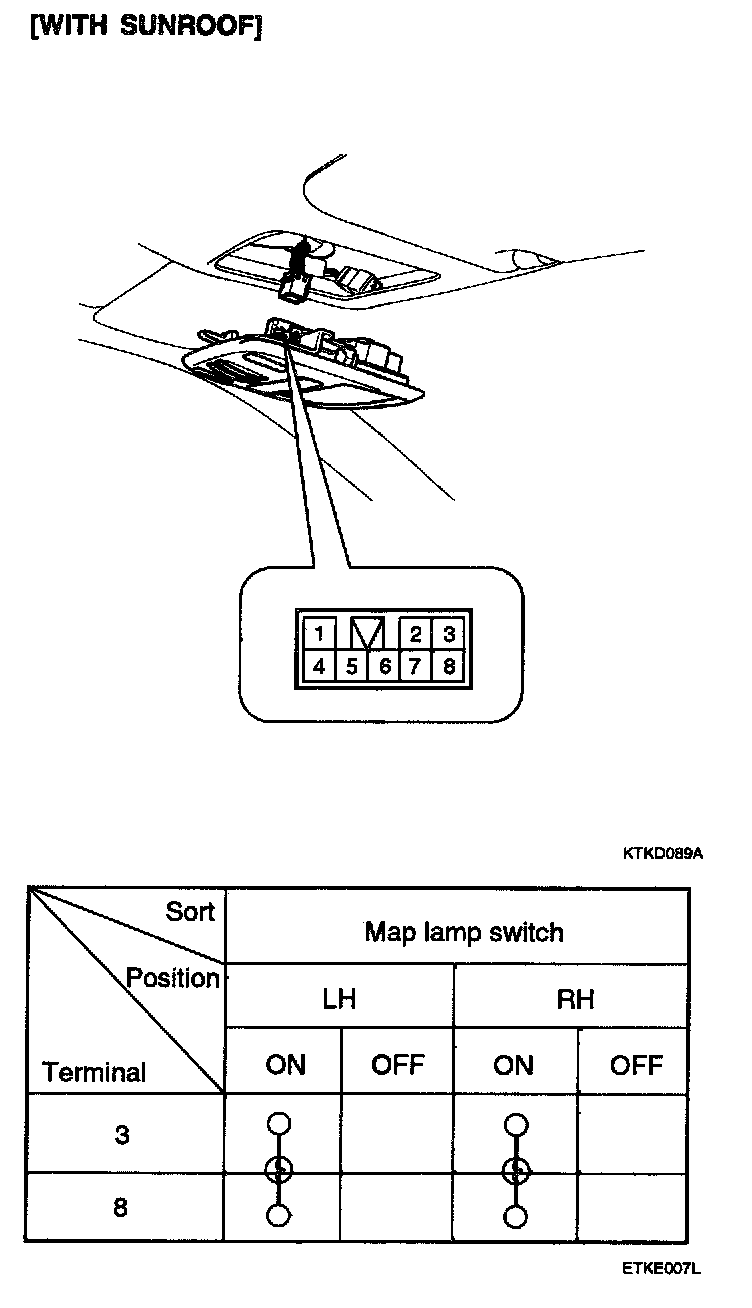

Remove the overhead console lamp assembly then check for continuity between terminals.
