Speedometer Head: Testing and Inspection

SPEEDOMETER







1. Adjust the pressure of the tires to the specified level.

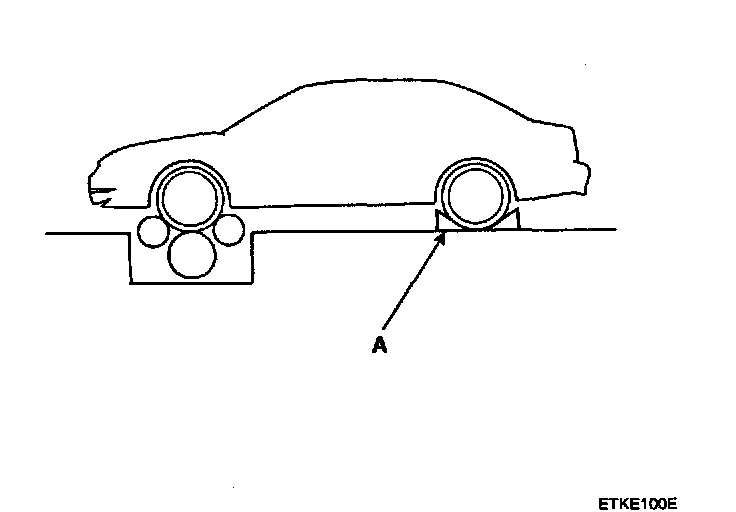

2. Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.

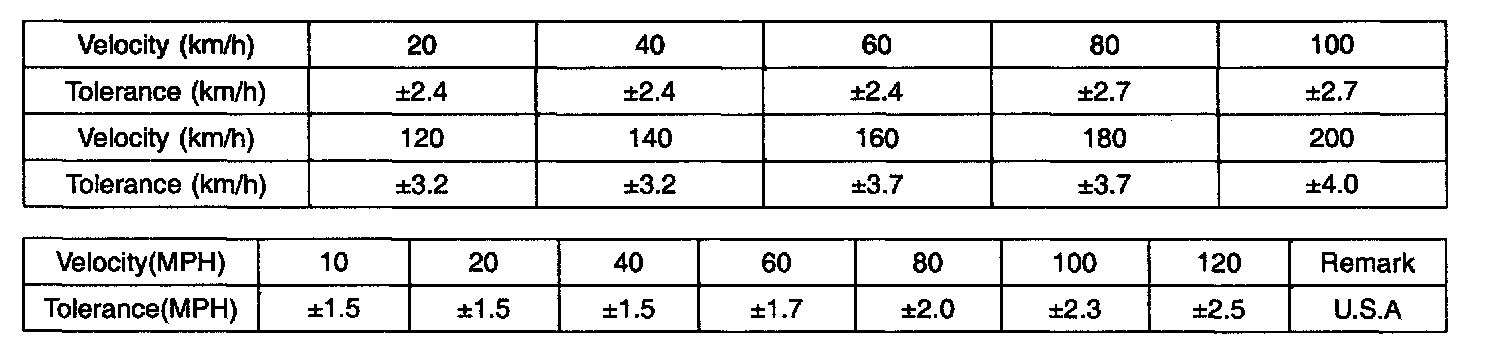

3. Check if the speedometer indicator range is within the standard values.

CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.

NOTE: Tire wear and tire over or under inflation will increase the indication error.
