Cluster Removal

CLUSTER REMOVAL AND INSTALLATION

1. Remove the instrument facia panel.
2. Loosen the screws.

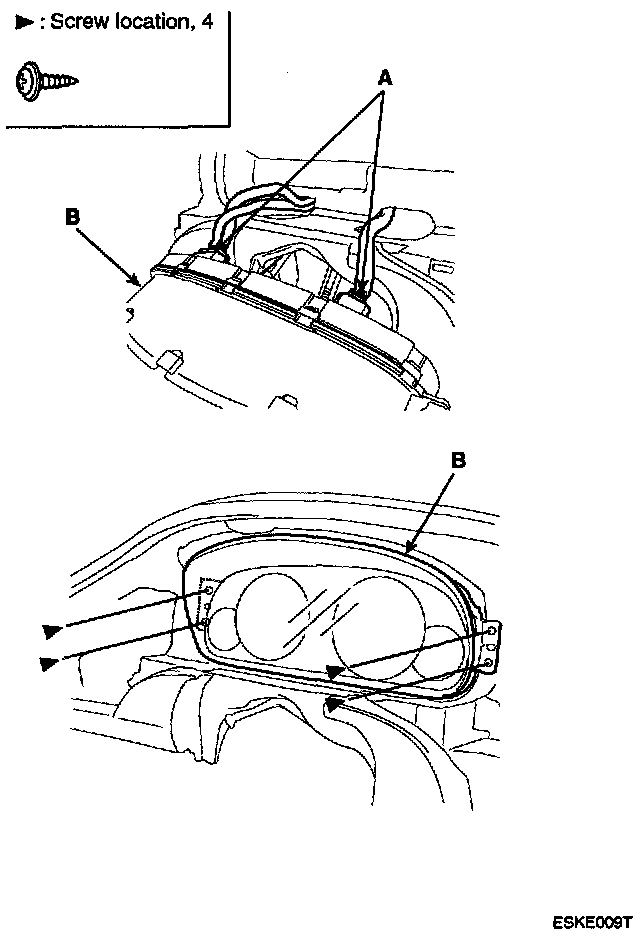

3. Disconnect the cluster connector (A), then remove the cluster (B).






4. Installation is the reverse of removal.

NOTE: Make sure the connector is plugged in properly.
