Procedures

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster facia panel.

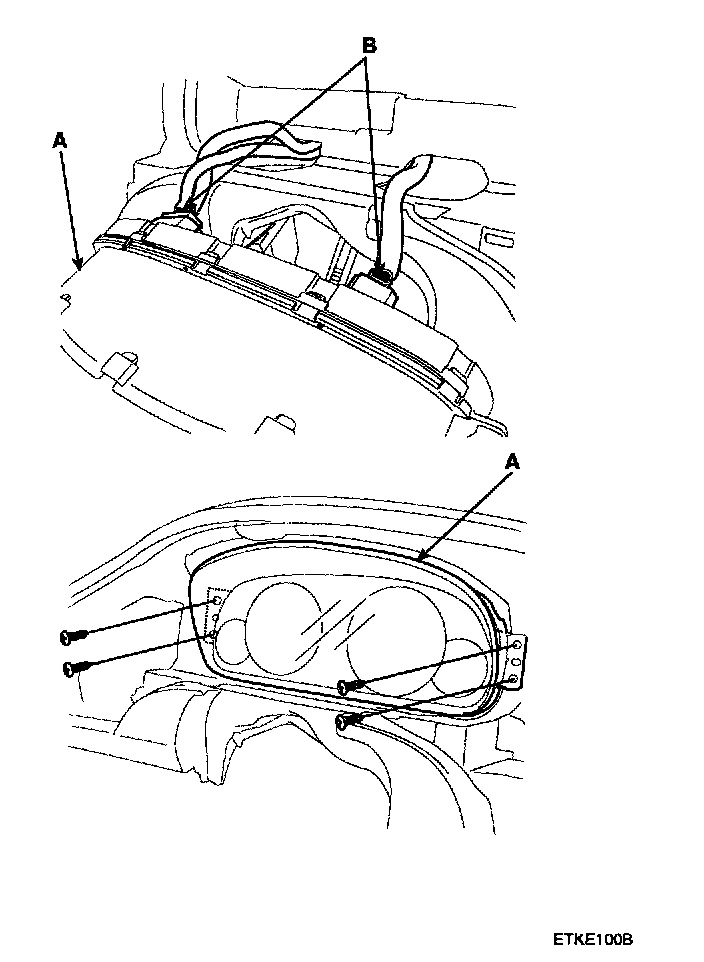

3. Remove the cluster (A) from the housing after removing 4 screws and disconnect the wire connectors (B).
4. Installation is the reverse of removal.
