Fuel Gauge: Testing and Inspection
FUEL GAUGE1. Disconnect the fuel sender connector from the fuel sender.

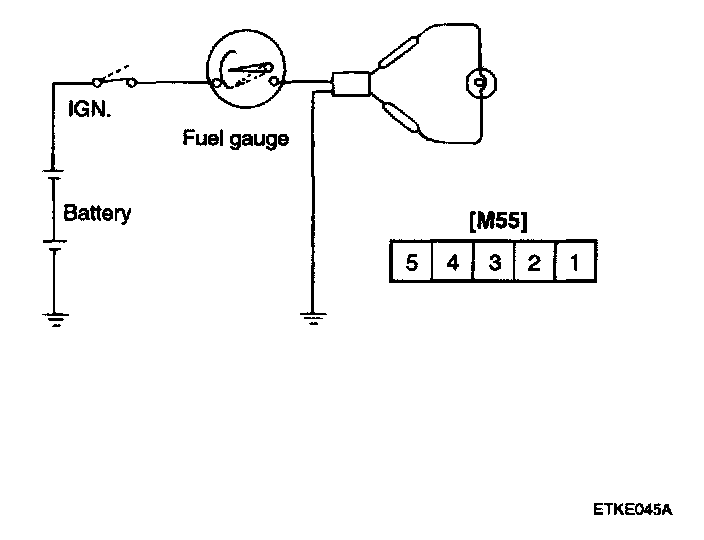

2. Connect a 3.4 watt, 12 V test bulb to terminals 1 and 3 on the wire harness side connector.
3. Turn the ignition switch to the ON, and then check that the bulb lights up and the fuel gauge needle moves to full.
