Problem Symptoms Table

TROUBLESHOOTING

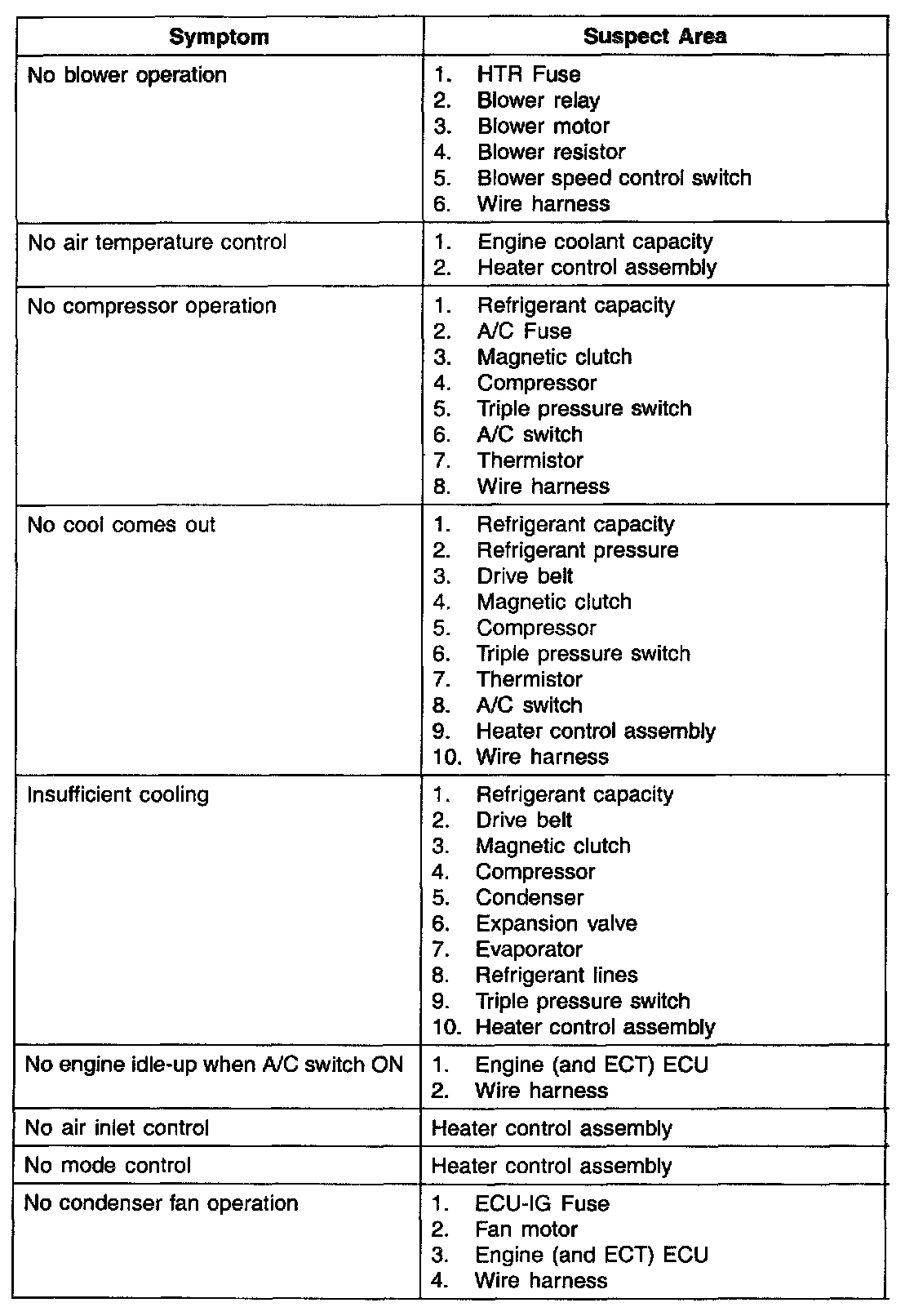

PROBLEM SYMPTOMS TABLE

Standard:




Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
