Blower Motor Resistor: Testing and Inspection

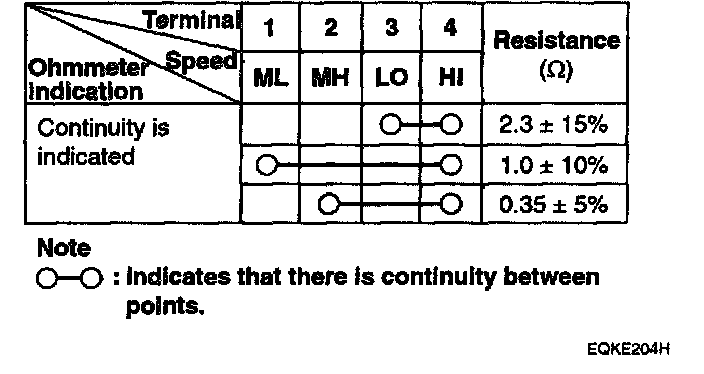

Measure terminal-to terminal resistance of the blower resistor.

If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)
