Blower Motor Resistor: Description and Operation

DESCRIPTION

Characteristics:

- Rated voltage: DC 12 V
- Rated load: Blower motor
- Standard test Temp.: 20 DEG
- Operation Temp.: -30 DEG +70 DEG

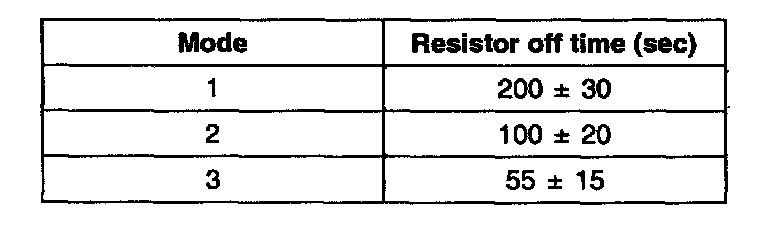

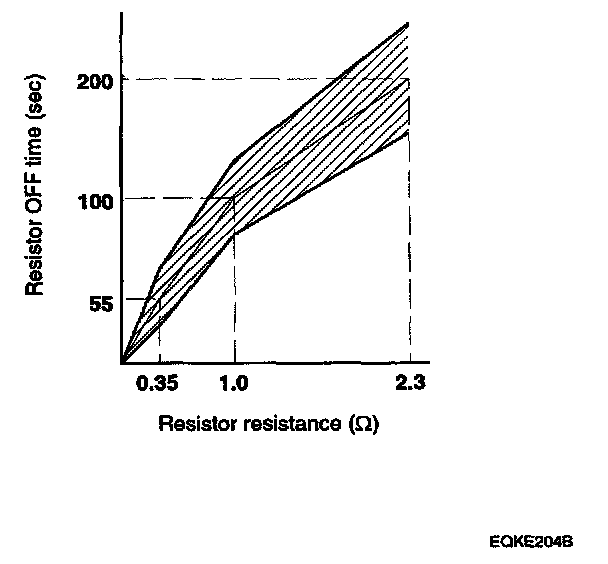

- Resistor off - Time requirement for blower motor locking
