Ambient Temperature Sensor / Switch HVAC: Testing and Inspection
INSPECTION

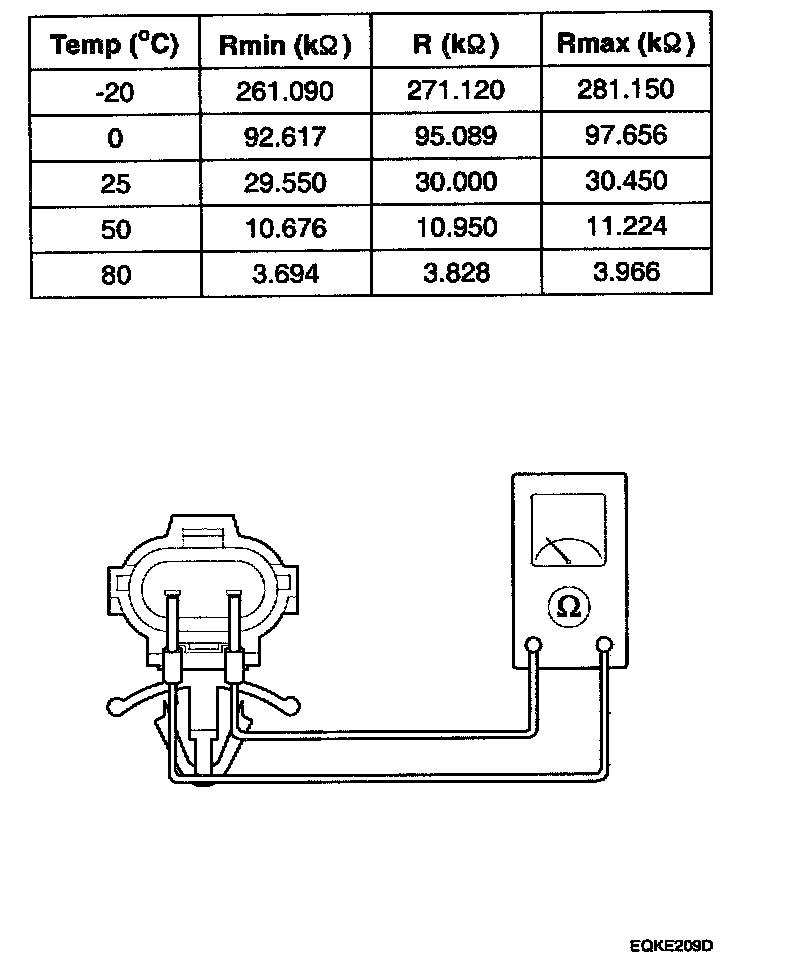

Resistance - Temp Characteristic Table:

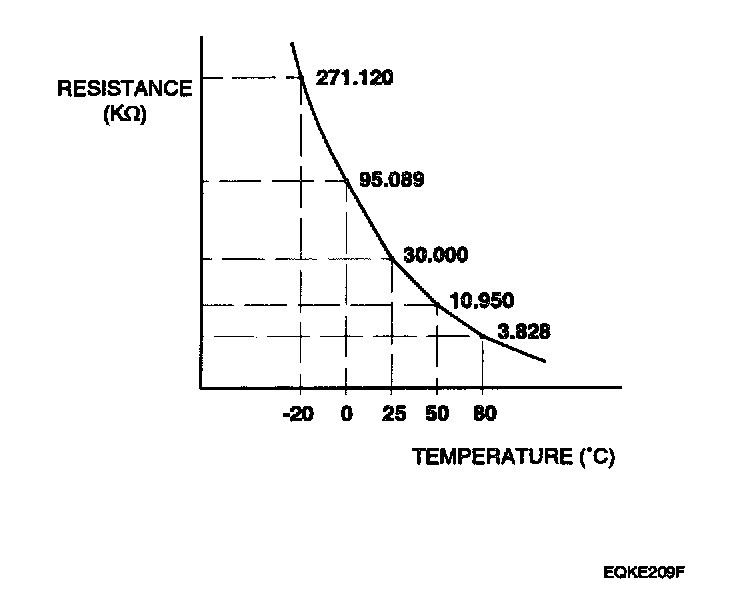

Characterestics:
Measure the resistance.
